TBM XS3 Front Extreme Street Brake Kit (012-0209) - 1982-1992 Chevy Camaro & Pontiac Firebird
Upgrade the front braking performance of your 1982-1992 Chevrolet Camaro or Pontiac Firebird with the TBM Brakes XS3 Front Extreme Street Brake Kit. Developed from more than 30 years of racing experience, the XS3 Series was engineered to bridge the gap between lightweight racing brake systems and the larger, heavier street performance packages commonly found on modern vehicles. With compact 12.19-inch slotted and vented rotors, billet four-piston calipers, and Hawk Performance HPS pads, this system delivers serious stopping capability while maintaining compatibility with many 15-inch and larger wheels.
This complete front brake package now uses TBM's 008-0119A billet aluminum hub kit, which maintains the factory wheel offset while converting to a 5x4.75-inch bolt pattern with included 1/2-inch wheel studs. The XS3 calipers are machined from solid 6061 aluminum and use four 1.75-inch pistons per caliper for excellent clamping force and pedal feedback. Billet CNC-machined 304 stainless steel pistons, black anodized components, dark zinc-plated rotors, and race-derived crossflow fluid technology combine to create a durable, lightweight, and highly responsive braking system for street and performance-driven third-gen F-Body builds.
Features
- Designed for 1982-1992 Chevrolet Camaro 3rd Gen applications
- Designed for 1982-1992 Pontiac Firebird 3rd Gen applications
- Purpose-built XS3 Extreme Street front brake system
- Race-inspired XS3 four-piston front calipers
- Billet caliper housings machined from solid 6061 aluminum alloy
- Four 1.75-inch outside-diameter pistons per caliper
- Billet CNC-machined 304 stainless steel caliper pistons
- Crossflow caliper design eliminates external transfer tubes
- Internal crossflow fluid passages promote balanced hydraulic pressure distribution
- Rigid caliper construction provides excellent clamping force and responsive pedal feedback
- Two-piece caliper construction with durable powder-coated finish
- Available caliper colors include Race Red, Satin Blue Metallic, Velocity Yellow, Gunmetal Gray, and Onyx Black
- 12.19-inch slotted and vented front rotors
- Dark zinc-plated rotors help resist rust and corrosion
- Rotor finish may vary due to the zinc-plating process
- Includes black anodized billet aluminum hubs with 5x4.75-inch bolt pattern
- Updated 008-0119A hub design maintains factory wheel offset
- Includes ten 1/2-inch x 2-inch wheel studs
- Designed to fit most 15-inch and larger wheels when adequate clearance is available
- Compatible with many steel factory wheels and drag racing wheels
- Includes high-quality 12-point mounting hardware
- Approximate weight: 16.20 lbs per side
- Made in Bradenton, Florida, USA

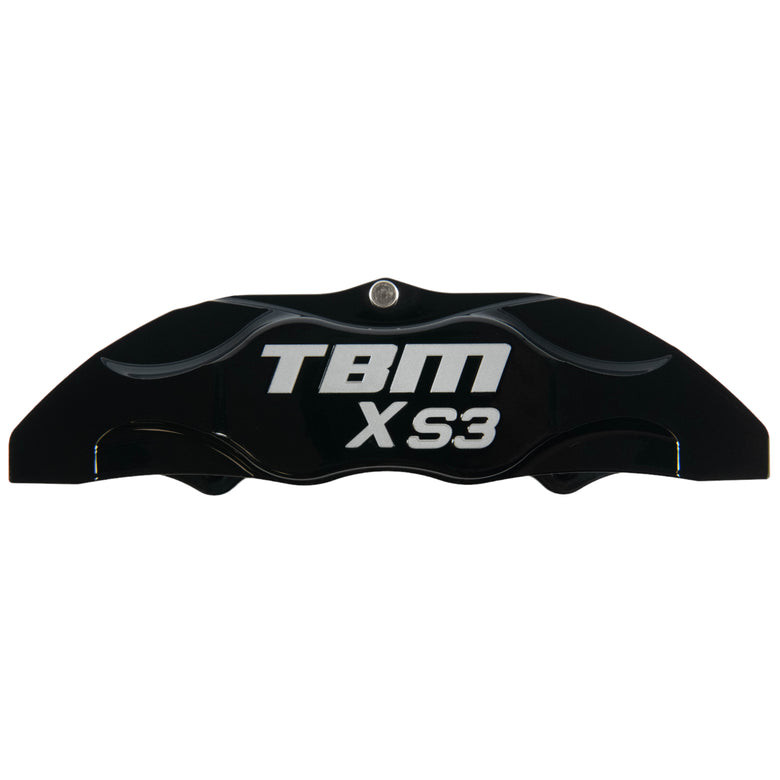

Caliper Design
The XS3 Extreme Street caliper applies technology developed through TBM's racing brake programs to a compact street performance package. Each all-billet caliper features a rigid bridge design engineered to reduce flex and provide a more direct pedal feel. Four 1.75-inch stainless steel pistons generate substantial clamping force, while the internal crossflow fluid path promotes smooth operation and balanced piston pressure without requiring exposed external crossover tubes.
Rotor Design
The included 12.19-inch cast rotors feature slotted and vented construction to balance stopping performance, cooling ability, durability, weight, and wheel clearance. Their compact diameter helps maintain compatibility with many 15-inch and larger factory or aftermarket wheels. A dark zinc-plated finish provides additional corrosion protection before installation and on rotor surfaces that are not contacted by the brake pads.
Brake Pads
This kit includes Hawk Performance HPS brake pads featuring a Ferro-Carbon friction compound. The HPS material offers a strong balance of braking performance, street-friendly operation, manageable brake dust, and reduced noise compared to more aggressive racing compounds.
Billet Hub Design
The current version of this kit uses TBM's 008-0119A billet aluminum hub assembly. This updated hub design maintains the factory wheel offset while providing a 5x4.75-inch bolt pattern and includes 1/2-inch x 2-inch wheel studs. The lightweight billet construction helps reduce rotating mass while preserving proper wheel positioning.
Kit Includes
- One 12.19-inch vented rotor, Part #3-121981087-1
- One 12.19-inch vented rotor, Part #3-121981087-2
- Two black anodized billet aluminum hubs with 5x4.75-inch bolt pattern, Part #008-0119A
- Ten 1/2-inch x 2-inch wheel studs
- Two XS3 four-piston brake calipers in the selected color
- Two caliper brackets, Part #17-0099
- Complete set of Hawk Performance HPS brake pads, Part #6-0002HPS
- Complete hardware kit, Part #011-0361
Fitment
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
- 1982 Pontiac Firebird
- 1983 Pontiac Firebird
- 1984 Pontiac Firebird
- 1985 Pontiac Firebird
- 1986 Pontiac Firebird
- 1987 Pontiac Firebird
- 1988 Pontiac Firebird
- 1989 Pontiac Firebird
- 1990 Pontiac Firebird
- 1991 Pontiac Firebird
- 1992 Pontiac Firebird
Additional Notes
- As of November 29, 2025, this kit uses the updated TBM 008-0119A hub kit, which maintains the factory wheel offset.
- Hub bolt pattern is 5x4.75 inches.
- Includes 1/2-inch x 2-inch wheel studs.
- Fits most 15-inch and larger wheels when sufficient brake and wheel clearance is available.
- Always verify wheel barrel and caliper clearance before installation.
- TBM does not recommend silicone-based brake fluid with these calipers.
- Use only approved DOT 3, DOT 4, or DOT 5.1 brake fluid.
- TBM Extreme 6 brake fluid is recommended for best results.
- This brake system performs best at approximately 600 to 800 PSI brake pressure during normal braking.
- Proper master cylinder sizing and pedal ratio are essential for correct brake operation and performance.
