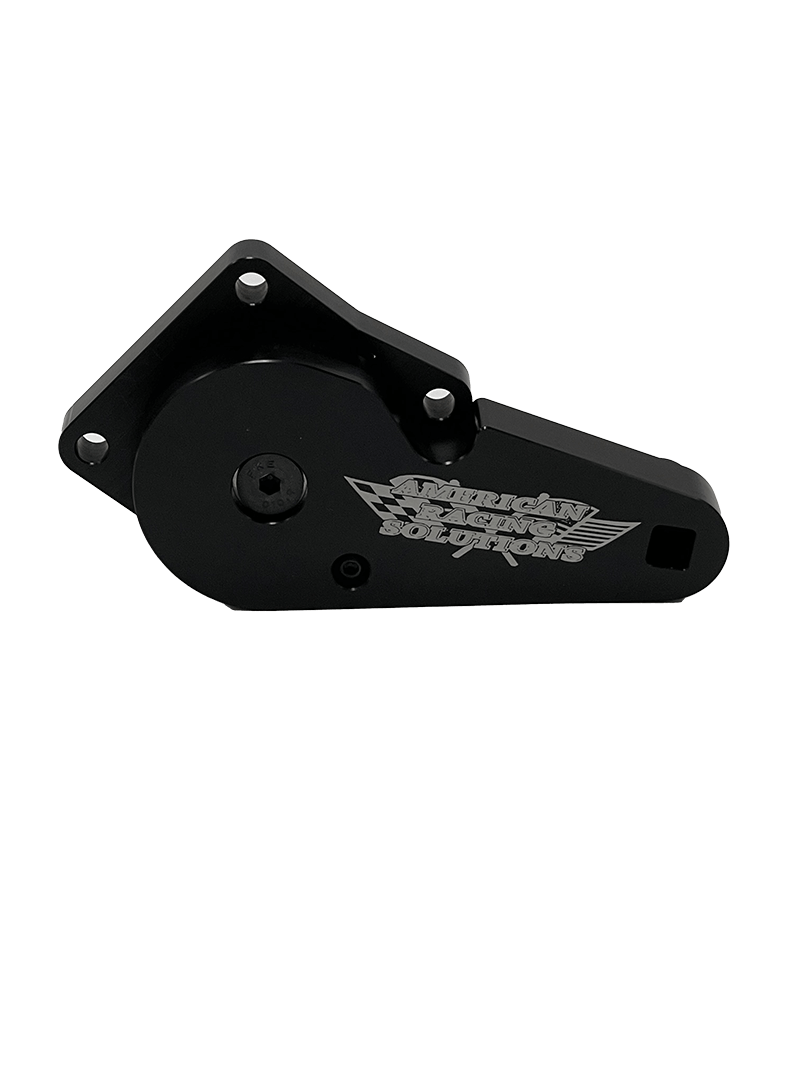

American Racing Solutions Billet Racing Belt Tensioner - Race (9760C) - 2000-2004 Cobra
Take control of the belt drive on your high-horsepower supercharged Mustang Cobra with the American Racing Solutions Race Billet Belt Tensioner. Designed specifically for serious 2000-2004 Ford Mustang Cobra performance applications, this race-focused tensioner uses a heavy 60 lb. spring to provide the belt control required by combinations producing 1,000 RWHP or more.
Rather than relying on a cast construction, American Racing Solutions precision CNC-machines the tensioner from 6061-T6 billet aluminum for an outstanding combination of strength, durability, and accuracy. A hardened steel shaft, heavy-duty bearings, and custom-wound spring work together to withstand the demanding loads generated by high-horsepower supercharged belt-drive systems.
Maintaining consistent belt tension becomes increasingly important as boost and horsepower increase. The American Racing Solutions Race Tensioner is engineered to help reduce belt slip and maintain more consistent supercharger drive performance under demanding high-RPM conditions. The result is a purpose-built upgrade for Mustang Cobra owners pushing their supercharged combinations well beyond factory power levels.
Features
- Race-spec belt tensioner for high-horsepower Mustang Cobra applications
- Heavy-duty 60 lb. spring rate
- Recommended for combinations producing 1,000 RWHP or more
- Precision CNC-machined from 6061-T6 billet aluminum
- Billet construction instead of cast aluminum
- Custom-wound performance spring
- Hardened steel tensioner shaft
- Heavy-duty bearing construction
- Anodized finish for increased durability
- Engineered to maintain consistent belt tension at high RPM
- Helps reduce unwanted supercharger belt slip
- Designed for demanding supercharged racing applications
- Direct replacement design without adapter plates or additional accessories
- Proudly made in the USA
Performance Benefits
- 60 lb. race spring provides increased belt control for extreme horsepower combinations
- Helps reduce belt slip under heavy supercharger loads
- Supports more consistent boost and power delivery
- Billet aluminum construction provides excellent strength and precision
- Hardened steel shaft is designed to withstand demanding belt-drive loads
- Heavy-duty bearings promote smooth and dependable operation
- Purpose-built for serious high-RPM and high-boost applications
Configuration Options
- 76mm 8-Rib Bearing Grooved Pulley with Steel Bearings - Default Configuration
- 76mm 8-Rib Bearing Grooved Pulley with Ceramic Bearings
- Tensioner Only - No Pulley
Specifications
- Product Type: Racing Belt Tensioner
- Spring Rate: 60 lb.
- Recommended Power Level: 1,000+ RWHP
- Material: 6061-T6 Billet Aluminum
- Manufacturing Process: CNC-Machined
- Shaft Material: Hardened Steel
- Available Pulley Size: 76mm
- Available Belt Configuration: 8-Rib
- Part Number: 9760C
- Country of Manufacture: USA
Fitment
- 2000 Ford Mustang Cobra - Supercharged performance applications
- 2001 Ford Mustang Cobra - Supercharged performance applications
- 2002 Ford Mustang Cobra - Supercharged performance applications
- 2003 Ford Mustang Cobra - Supercharged performance applications
- 2004 Ford Mustang Cobra - Supercharged performance applications
Additional Notes
- This is the Race version featuring a 60 lb. spring and is intended for serious high-horsepower applications.
- American Racing Solutions recommends this version for Mustang Cobra combinations producing 1,000 RWHP or more.
- Pulley and bearing configuration depends on the option selected when ordering.
- A tensioner-only configuration without a pulley is also available.
- Verify belt configuration, pulley requirements, supercharger setup, and vehicle compatibility before ordering.
