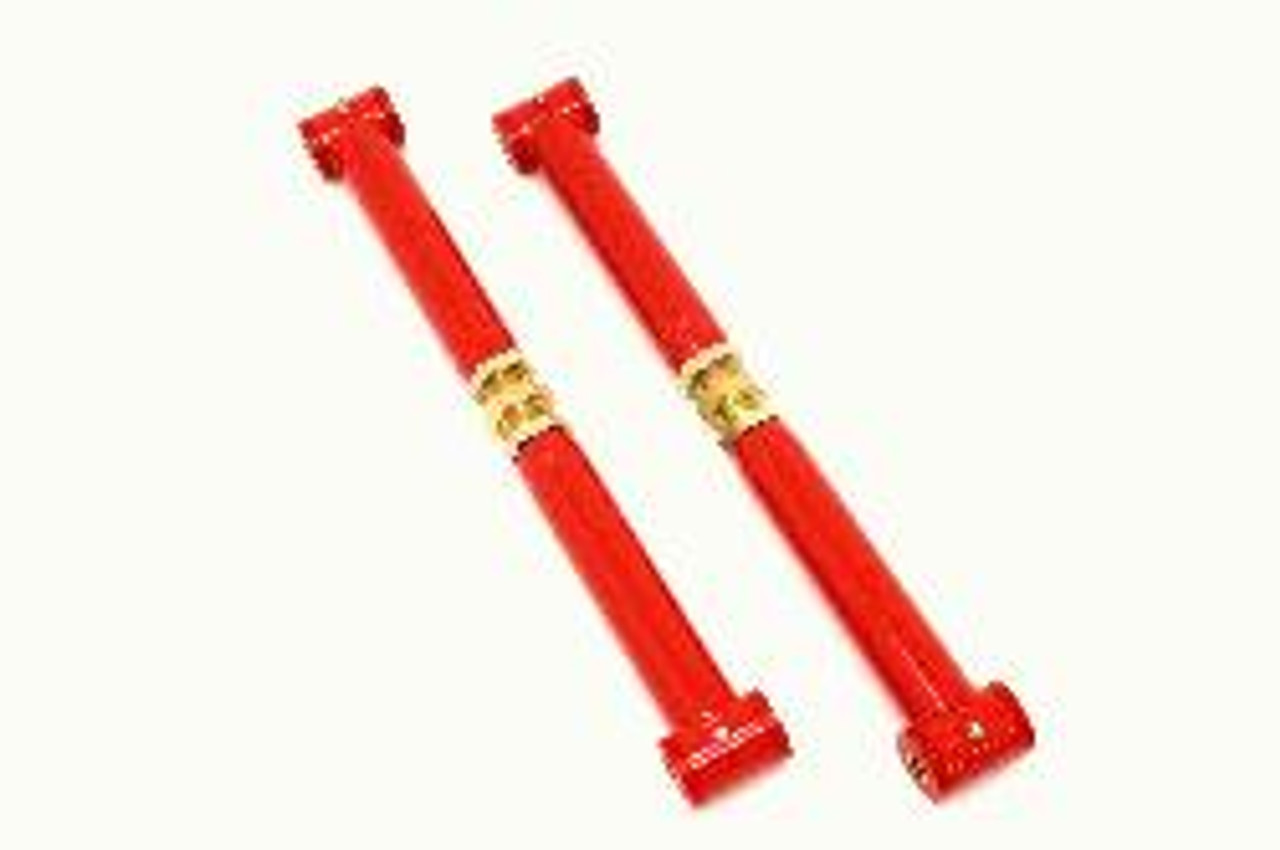

BMR Xtreme Lower Control Arms Chrome Moly On-Car Adjustable Polyurethane Bushings Black (1982-2002 F-Body) XCA001H
Launch harder, eliminate wheel hop, and achieve predictable handling on your Third or Fourth Gen GM F-Body with BMR Suspension Xtreme On-Car Adjustable Lower Control Arms. Factory stamped-steel control arms are notoriously weak and prone to twisting under load. Combined with soft factory rubber bushings, they deflect significantly during hard acceleration or cornering, absorbing power instead of transferring it to the pavement. Engineered to support high-performance street, drag race, and road race applications, these Xtreme tubular control arms completely eliminate flex to keep your rear axle properly aligned and your tires planted firmly.
Built for maximum structural integrity without adding unnecessary weight, these control arms are constructed from lightweight 1.625-inch 4130 chrome-moly steel tubing and feature robust TIG-welded tube adapters. A massive 1-1/8-inch CNC-machined center adjuster with right- and left-hand threads allows you to easily adjust your rear wheelbase and center the wheels in the wheel wells while the arms remain fully installed on the vehicle. For a solid and responsive feel, the arms are outfitted with high-performance 95-durometer polyurethane bushings with zinc-coated inner sleeves. These bushings feature an internally fluted design that distributes grease evenly across the sleeve and outer thrust surfaces, keeping them fully lubricated under heavy compression while isolating unwanted noise, vibration, and harshness (NVH) for a comfortable ride. Finished in a rugged black hammertone powdercoat, this direct bolt-on upgrade installs easily in 1 to 2 hours using basic hand tools. Note: Highly recommended to pair with BMR control arm hardware kit RH005.
Features
- Eradicates control arm flex and wheel hop for straighter, more efficient drag strip launches
- Provides much-improved cornering stability and handling consistency by stopping axle deflection
- On-car adjustable design utilizes a huge 1-1/8-inch center adjuster for effortless alignment tuning without removal
- Manufactured from lightweight, ultra-strong 1.625-inch 4130 chrome-moly steel tubing
- Features high-quality, professional TIG-welded construction and chrome-moly tube adapters
- Equipped with firm, 95-durometer polyurethane bushings that dramatically reduce deflection under extreme loads
- Internally fluted bushing channels keep grease evenly distributed to ensure quiet, long-lasting performance
- Maintains highly acceptable NVH levels and ride comfort for dual-purpose street-and-strip cars
- Finished in a long-lasting, premium black hammertone powdercoat for superior rust and corrosion resistance
- Proudly designed, tested, and manufactured in the U.S.A.
- Straightforward direct bolt-on installation takes only about 1 to 2 hours
Fitment
- 1982 Chevrolet Camaro
- 1982 Pontiac Firebird / Trans Am
- 1983 Chevrolet Camaro
- 1983 Pontiac Firebird / Trans Am
- 1984 Chevrolet Camaro
- 1984 Pontiac Firebird / Trans Am
- 1985 Chevrolet Camaro
- 1985 Pontiac Firebird / Trans Am
- 1986 Chevrolet Camaro
- 1986 Pontiac Firebird / Trans Am
- 1987 Chevrolet Camaro
- 1987 Pontiac Firebird / Trans Am
- 1988 Chevrolet Camaro
- 1988 Pontiac Firebird / Trans Am
- 1989 Chevrolet Camaro
- 1989 Pontiac Firebird / Trans Am
- 1990 Chevrolet Camaro
- 1990 Pontiac Firebird / Trans Am
- 1991 Chevrolet Camaro
- 1991 Pontiac Firebird / Trans Am
- 1992 Chevrolet Camaro
- 1992 Pontiac Firebird / Trans Am
- 1993 Chevrolet Camaro
- 1993 Pontiac Firebird / Trans Am
- 1994 Chevrolet Camaro
- 1994 Pontiac Firebird / Trans Am
- 1995 Chevrolet Camaro
- 1995 Pontiac Firebird / Trans Am
- 1996 Chevrolet Camaro
- 1996 Pontiac Firebird / Trans Am
- 1997 Chevrolet Camaro
- 1997 Pontiac Firebird / Trans Am
- 1998 Chevrolet Camaro
- 1998 Pontiac Firebird / Trans Am
- 1999 Chevrolet Camaro
- 1999 Pontiac Firebird / Trans Am
- 2000 Chevrolet Camaro
- 2000 Pontiac Firebird / Trans Am
- 2001 Chevrolet Camaro
- 2001 Pontiac Firebird / Trans Am
- 2002 Chevrolet Camaro
- 2002 Pontiac Firebird / Trans Am
