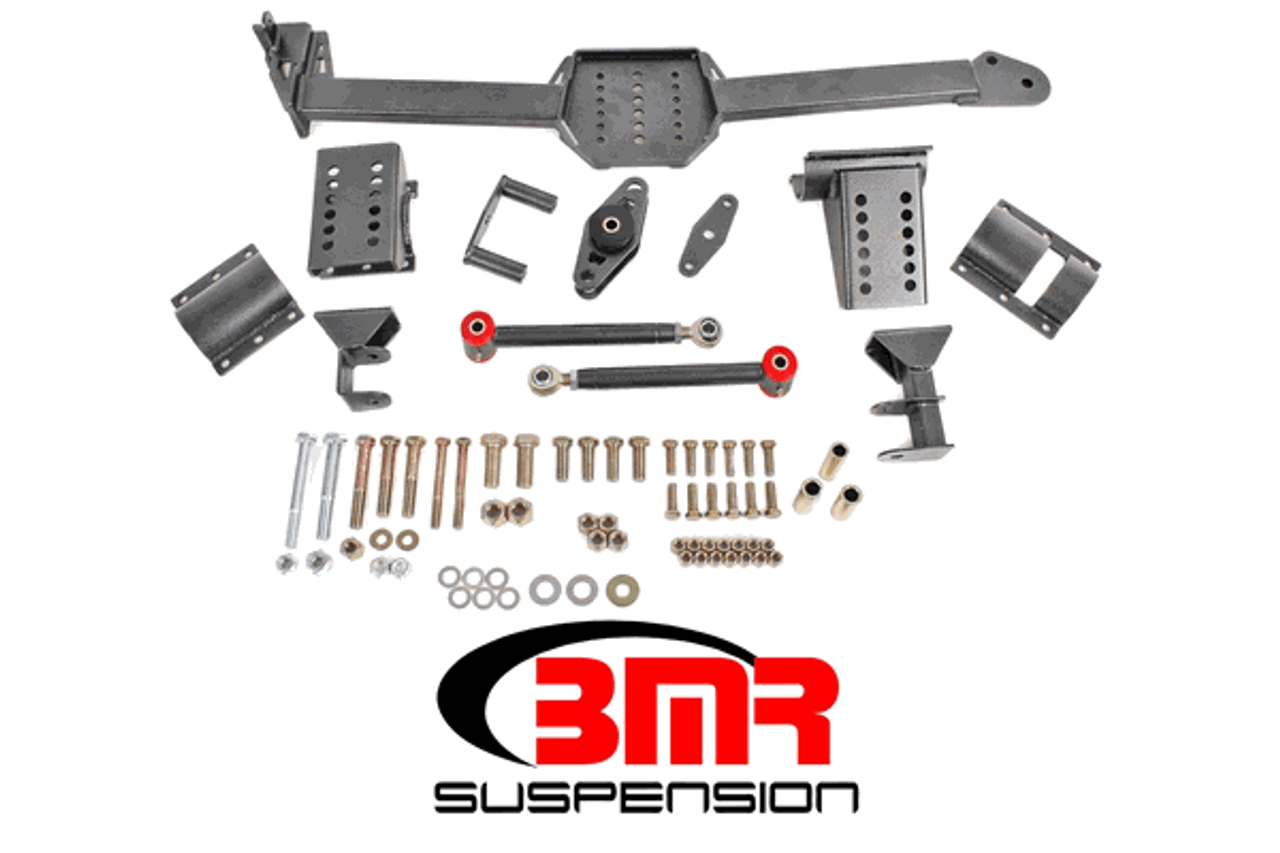

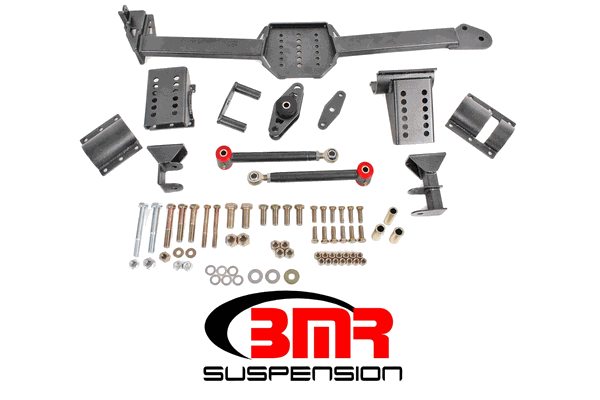

BMR Watts Link Body Mount Polyurethane Rod Ends Adjustable Axle Clamps Black (2005-2014 Mustang / 2007-2014 Shelby GT500) WL005H
Add the ultimate lateral differential location device to your S197 with the BMR Suspension Body-Mounted Watts Link Kit for 2005-2014 Ford Mustangs and 2007-2014 Shelby GT500s. Factory panhard bars can track in an unpredictable arc during suspension travel, causing the rear axle to shift side-to-side and upsetting chassis balance during hard cornering or high-speed transitions. This race-engineered Watts link completely eliminates lateral axle movement by keeping the differential perfectly centered under the vehicle throughout the suspension's entire range of motion, providing rock-solid stability and highly predictable handling characteristics.
Built to withstand extreme track environments while maintaining excellent street manners, the main crossmember is manufactured from heavy-duty 1x2-inch (0.120-inch wall) rectangular steel tubing and robust 0.25-inch laser-cut steel plates. The system features a double-shear fabricated center pivot riding on a greasable Delrin center bushing for smooth, fluid operation. This premium kit features double-adjustable links equipped with heavy-duty, zinc-plated chrome-moly rod ends on one side and high-performance 95-durometer greasable polyurethane bushings on the other. This rod-end and polyurethane combination provides the perfect balance of bind-free articulation and crisp response while isolating unwanted noise, vibration, and harshness (NVH) for a comfortable street ride. With 6 roll-center height adjustment points, you can easily fine-tune your Mustang's rear roll center to optimize traction and handling balance for any street performance, autocross, or road course setup. Finished in a rugged black hammertone powdercoat, this 100-percent bolt-on kit requires no welding and is compatible with stock or BMR’s SB042 rear sway bar. Note: Cars lowered more than 1.5 inches in the rear or running soft spring rates may require minor trimming of the driver-side axle mount bracket for clearance. Installation takes approximately 3 to 4 hours.
Features
- Eliminates lateral rear axle movement completely to deliver precise, highly predictable handling
- Provides 6 roll-center adjustment heights to optimize rear weight transfer, traction, and cornering balance
- Constructed from heavy-duty 1x2-inch (0.120-inch wall) rectangular steel tubing and 0.25-inch laser-cut plates
- Double-adjustable links combine zinc-plated, chrome-moly, self-lubricating, Teflon-lined rod ends with 95-durometer greasable polyurethane bushings
- Rod-end and polyurethane hybrid setup delivers sharp tracking while keeping street NVH levels highly acceptable
- Heavy-duty double-shear center pivot assembly incorporates a greasable Delrin center bushing
- Engineered specifically to handle the extreme loads of street performance, road racing, and autocross
- Compatible with factory rear sway bars as well as upgraded BMR SB042 sway bars
- Finished in a long-lasting, premium black hammertone powdercoat for superior rust and corrosion resistance
- Proudly designed, tested, and manufactured in the U.S.A.
- 100% bolt-on design installs in approximately 3 to 4 hours using standard garage tools
Fitment
- 2005 Ford Mustang (Base / GT)
- 2006 Ford Mustang (Base / GT)
- 2007 Ford Mustang (Base / GT)
- 2007 Ford Mustang Shelby GT500
- 2008 Ford Mustang (Base / GT / Bullitt)
- 2008 Ford Mustang Shelby GT500 / KR
- 2009 Ford Mustang (Base / GT)
- 2009 Ford Mustang Shelby GT500
- 2010 Ford Mustang (Base / GT)
- 2010 Ford Mustang Shelby GT500
- 2011 Ford Mustang (V6 / GT)
- 2011 Ford Mustang Shelby GT500
- 2012 Ford Mustang (V6 / GT / Boss 302)
- 2012 Ford Mustang Shelby GT500
- 2013 Ford Mustang (V6 / GT / Boss 302)
- 2013 Ford Mustang Shelby GT500
- 2014 Ford Mustang (V6 / GT)
- 2014 Ford Mustang Shelby GT500
