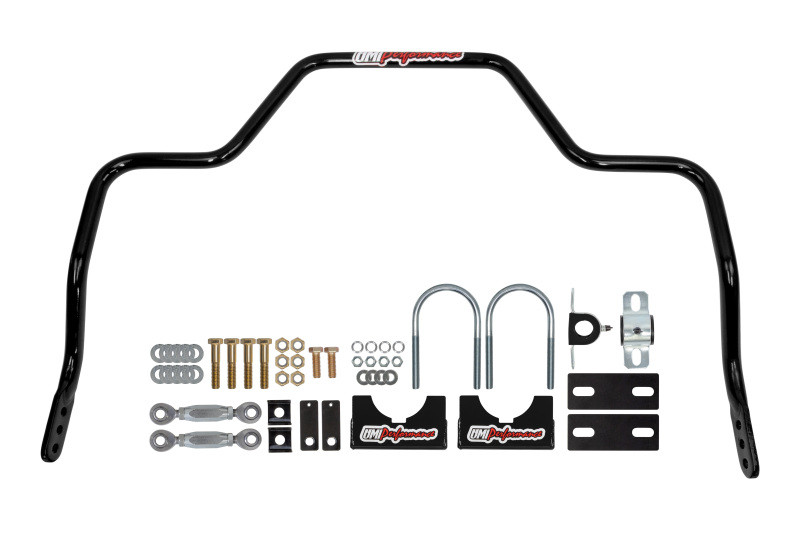

UMI Performance 1" Solid Adjustable Rear Sway Bar - Black (6580-B) - 2015-2027 Ford F-150
Transform the handling balance of your lowered 2015-2027 Ford F-150 with the UMI Performance 1" Solid Adjustable Rear Sway Bar. Since factory F-150 models do not come equipped with a rear sway bar, adding the UMI 6580 provides a substantial increase in rear roll stiffness to reduce body lean, improve cornering response, and help create a more neutral handling balance.
Built around a 1-inch solid heat-treated chromoly steel bar, the UMI 6580 features three-position rate adjustment so you can fine-tune rear roll stiffness for your suspension setup, driving style, or performance goals. The complete system is engineered specifically for lowered trucks with 3.25-inch axle tubes and includes the axle clamps, polyurethane bushings, billet aluminum locking collars, adjustable end links, frame mounting brackets, and supporting hardware needed for installation.
Add Rear Roll Control to Your F-150
UMI designed the 6580 Rear Sway Bar to address the body roll and handling balance of the F-150 platform. Because the factory truck does not use a rear sway bar, adding the UMI system significantly increases rear roll stiffness and helps control chassis movement through corners.
The increased rear roll control is designed to reduce excessive body lean and understeer, helping the truck feel flatter, more responsive, and more balanced during performance driving.
Three-Way Adjustable Sway Bar Rate
The UMI 6580 provides three mounting positions for sway bar rate adjustment. Changing the end link mounting position alters the effective stiffness of the rear bar, allowing you to tune the handling balance to suit your individual truck.
This adjustability makes it possible to tailor the rear suspension for street driving, track use, different suspension combinations, or changing hauling demands rather than being locked into a single sway bar rate.
1" Solid Heat-Treated Chromoly Construction
The rear sway bar is manufactured from solid 1-inch-diameter chromoly steel and heat treated for maximum torsional rigidity and fatigue strength. The heavy-duty construction is designed to provide the roll resistance required for a lowered performance truck while delivering the durability needed for demanding street and track use.
Engineered for Lowered F-150s
The UMI 6580 Rear Sway Bar is engineered specifically for lowered F-150 applications. The mounting geometry and supplied components are designed around lowered performance suspension configurations with 3.25-inch axle tubes.
Heavy-Duty 3.25" Axle Clamps
The kit includes heavy-duty 3.25-inch axle clamp assemblies that securely position the sway bar mounting components on the rear axle. These application-specific clamps allow the sway bar system to be installed without welding mounting tabs directly to the axle housing.
Polyurethane Bushings and Billet Aluminum Collars
Heavy-duty polyurethane bushings are included to provide positive sway bar control and durability. Billet aluminum locking clamp collars help maintain the proper lateral position of the sway bar during operation.
Adjustable End Links with Seals-It Rod End Seals
The complete system includes adjustable end links, allowing the sway bar installation to be properly configured for the lowered suspension. Premium Seals-It rod end seals provide additional protection for the rod ends, helping support long-lasting performance in changing weather and road conditions.
Complete Bolt-On Installation
The UMI 6580 uses frame inserts and application-specific mounting brackets to provide a bolt-on installation. No cutting or welding is required, and the system can be installed using standard hand tools.
UMI rates the installation as a moderate DIY project with an estimated installation time of approximately 1-2 hours.
Pair with a UMI Front Sway Bar
For a more comprehensive handling package, UMI recommends pairing the 6580 Adjustable Rear Sway Bar with one of its compatible front sway bar systems, including part numbers 6579 or 6581. Combining front and rear roll control allows the suspension to be tuned as a complete system for flatter cornering and improved chassis balance.
Street and Track Tested
UMI reports that the 6580 Rear Sway Bar has been tested both on the street and at UMI Motorsports Park. The system is designed to provide race-proven durability while remaining suitable for lowered street-driven performance trucks.
Made in the USA
The UMI Performance 6580 Rear Sway Bar is manufactured in Philipsburg, Pennsylvania. The system is 100% made in the USA and combines UMI's American manufacturing with real-world street and track development.
Features
- Adjustable rear sway bar for lowered 2015-2027 Ford F-150 applications
- Designed to add rear roll control to F-150 models that do not have a factory rear sway bar
- Helps reduce excessive body roll and understeer
- Designed to improve cornering response and chassis balance
- 1-inch solid sway bar
- Heat-treated chromoly steel construction
- High torsional rigidity and fatigue strength
- Three-position sway bar rate adjustment
- Allows rear roll stiffness to be tuned for street or track use
- Engineered specifically for lowered trucks
- Designed for 3.25-inch axle tubes
- Includes heavy-duty 3.25-inch axle clamp assemblies
- Includes heavy-duty polyurethane bushings
- Includes billet aluminum locking clamp collars
- Includes adjustable end links
- Includes frame mounting brackets
- Premium Seals-It rod end seals for long-lasting all-weather performance
- Complete bolt-on installation
- Uses frame inserts for installation
- No cutting or welding required
- Installs using standard hand tools
- Moderate DIY installation difficulty
- Approximately 1-2 hour installation time
- Can be paired with UMI front sway bars 6579 or 6581
- Street and track tested
- Race-proven at UMI Motorsports Park
- Black finish
- Manufactured in Philipsburg, Pennsylvania
- 100% made in the USA
Fitment Notes
- Engineered specifically for lowered Ford F-150 applications.
- Designed for trucks equipped with 3.25-inch rear axle tubes.
- Includes 3.25-inch axle clamp assemblies.
- No cutting or welding is required for standard installation.
- Can be paired with UMI front sway bar part number 6579 or 6581 for additional front and rear roll control.
- Part number 6580-B is the black version.
Fitment
- 2015 Ford F-150 - Lowered, 3.25-inch axle tube
- 2016 Ford F-150 - Lowered, 3.25-inch axle tube
- 2017 Ford F-150 - Lowered, 3.25-inch axle tube
- 2018 Ford F-150 - Lowered, 3.25-inch axle tube
- 2019 Ford F-150 - Lowered, 3.25-inch axle tube
- 2020 Ford F-150 - Lowered, 3.25-inch axle tube
- 2021 Ford F-150 - Lowered, 3.25-inch axle tube
- 2022 Ford F-150 - Lowered, 3.25-inch axle tube
- 2023 Ford F-150 - Lowered, 3.25-inch axle tube
- 2024 Ford F-150 - Lowered, 3.25-inch axle tube
- 2025 Ford F-150 - Lowered, 3.25-inch axle tube
- 2026 Ford F-150 - Lowered, 3.25-inch axle tube
- 2027 Ford F-150 - Lowered, 3.25-inch axle tube
