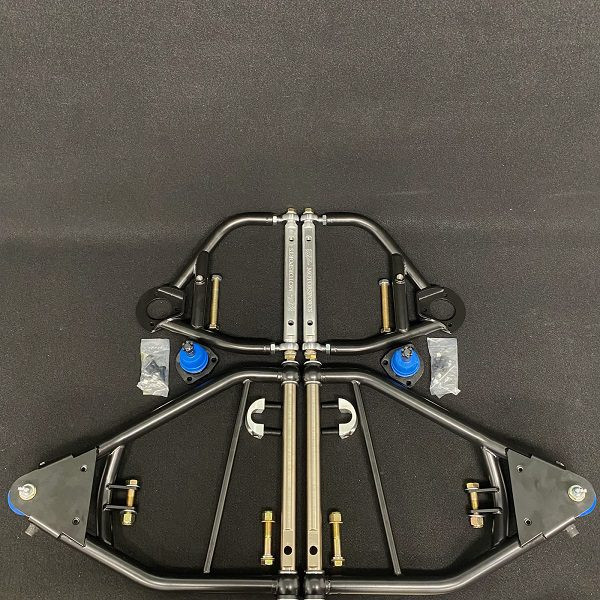

TRZ Motorsports Pro Upper and Lower Control Arms for Coil-Overs (1963 - 1982 Corvette C2 / C3) - 320-PRO-CO
High-Performance Coil-Over Control Arms for C2 & C3 Corvette
Upgrade your 1963 - 1982 Corvette (C2/C3) front suspension with the TRZ Motorsports PRO Series Upper and Lower Control Arms, engineered specifically for coil-over shock setups. Built from lightweight, tig-welded chrome-moly tubing, this complete control arm package delivers major gains in strength, geometry, and weight reduction for drag-oriented builds.
Designed as a direct replacement for factory arms with no chassis modifications required, these arms add built-in caster, reduce front ride height, improve suspension travel control, and significantly cut weight - up to 15 lbs per side. The PRO upper arms also include integrated travel limiters for repeatable launches and improved weight transfer.
This system is compatible with all common coil-over shocks except the QA1 Pro-Coil System (unless converted to bearing COM8T-102PK). TRZ can also build these arms for use with TRZ spindles or A/F/X-body spindles upon request.
Performance Features
- TIG-welded chrome-moly construction for maximum strength
- Includes upper arms, lower arms, ball joints, bushings, rod-end uppers, and mounting hardware
- Built-in +6° positive caster for improved straight-line stability
- Lowers front end 1.5? - 2? compared to stock
- Reduces weight by up to 15 lbs per side
- Direct bolt-in replacement for stock control arms - no modifications
- Upper arms include integrated suspension travel limiters
- Compatible with nearly all coil-over shocks (except QA1 Pro-Coil without modification)
- Engineered for drag race applications with spindle caster ranges from 0° to 10°
Quick Specs
- Application: 1963 - 1982 Corvette C2 / C3
- Material: TIG-welded chrome-moly
- Caster: Built-in +6°
- Ride Height: Lowers front 1.5? - 2?
- Weight Reduction: Up to 15 lbs per side
- Shock Compatibility: All coil-overs except QA1 Pro-Coil (unless updated to COM8T-102PK)
- Included Components: Upper & lower arms, ball joints, bushings, rod-ends, hardware
- Part Number: 320-PRO-CO
Fitment
- 1963 Corvette C2
- 1964 Corvette C2
- 1965 Corvette C2
- 1966 Corvette C2
- 1967 Corvette C2
- 1968 Corvette C3
- 1969 Corvette C3
- 1970 Corvette C3
- 1971 Corvette C3
- 1972 Corvette C3
- 1973 Corvette C3
- 1974 Corvette C3
- 1975 Corvette C3
- 1976 Corvette C3
- 1977 Corvette C3
- 1978 Corvette C3
- 1979 Corvette C3
- 1980 Corvette C3
- 1981 Corvette C3
- 1982 Corvette C3
Frequently Asked Questions
Do these control arms work with stock spindles?
Yes - this version is designed for stock Corvette spindles. TRZ can also build versions for TRZ or A/F/X-body spindles upon request.
Will these work with all coil-over shocks?
They work with nearly all coil-over brands except QA1 Pro-Coil, unless the upper mount is converted to COM8T-102PK bearings.
