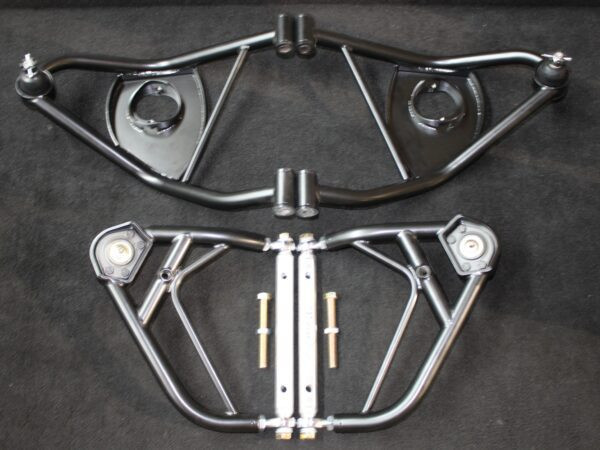

TRZ Motorsports Tubular Front Control Arms - Stock Spring Style Complete Kit (1967 - 1969 Camaro / Firebird & 1968 - 1974 Nova) - 316-PRO-STK
Complete Stock-Spring Tubular Control Arm System for F-Body & Nova
The TRZ Motorsports 316-PRO-STK Complete Kit delivers a full tubular front suspension upgrade for 1967 - 1969 Camaro, 1967 - 1969 Firebird, and 1968 - 1974 Chevrolet Nova. Designed for serious drag racing, this matched upper and lower arm system is built from TIG-welded chrome-moly tubing to maximize strength, reduce weight, and sharpen front-end geometry.
The kit includes PRO Series tubular upper control arms equipped with chrome-moly rod-ends attached to billet cross-shafts, along with stock-spring-style lower arms featuring installed ball joints and bushings. Working together, this complete setup allows the suspension to achieve 6 - 7 degrees of positive caster - dramatically improving straight-line stability and tracking. Uppers or lowers alone will not achieve these caster values and may create camber/caster challenges without the full system.
The stock-spring lowers feature dropped spring perches to accommodate taller aftermarket coil springs commonly used on F-Body and early Nova builds. Depending on the spring choice, the front end may naturally lower 1.5" to 1.75" compared to factory height. For more aggressive drop options (2" - 3"), TRZ offers coilover-specific lower arms in the 316 and 319/S10 series.
The PRO Series uppers also include travel limiters, allowing you to fine-tune front-end extension for optimal weight transfer during launch.
Note: All TRZ A-arms are designed exclusively for drag racing. They do not include sway bar tabs and are not intended for street use.
Performance Highlights
- Complete matched kit ensures proper drag-race geometry
- TIG-welded chrome-moly tubing provides top-tier strength
- 6 - 7° positive caster achievable with full system
- Up to 15 lbs per-side reduction compared to factory arms
- Stock-spring lowers accept factory-style springs and shocks
- Dropped spring perches accommodate taller coil springs
- 1.5" - 1.75" natural front-end drop depending on spring choice
- Travel limiters included for launch tuning
Quick Specs
- Application: 1967 - 1969 Camaro / Firebird, 1968 - 1974 Nova
- Kit Includes: Tubular uppers + stock-spring tubular lowers
- Material: TIG-welded chrome-moly tubing
- Caster Capability: 6 - 7° positive caster (complete kit only)
- Spring Compatibility: Factory-type stock springs
- Expected Drop: 1.5" - 1.75" depending on coils
- Use Case: Drag racing only (no sway bar tabs)
- Part Number: 316-PRO-STK
Fitment
- Chevrolet Camaro
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
- Pontiac Firebird
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
- 1969 Pontiac Firebird
- Chevrolet Nova
- 1968 Chevrolet Nova
- 1969 Chevrolet Nova
- 1970 Chevrolet Nova
- 1971 Chevrolet Nova
- 1972 Chevrolet Nova
- 1973 Chevrolet Nova
- 1974 Chevrolet Nova
Frequently Asked Questions
Will this complete kit work with coilovers?
No. This system is designed for factory-style stock springs. TRZ offers coilover-specific systems such as 316-PRO-CO for coilover applications.
Does this kit achieve the 6 - 7 degrees of caster?
Yes - only when using the complete TRZ upper and lower arm system. Using uppers or lowers independently may limit achievable caster.
