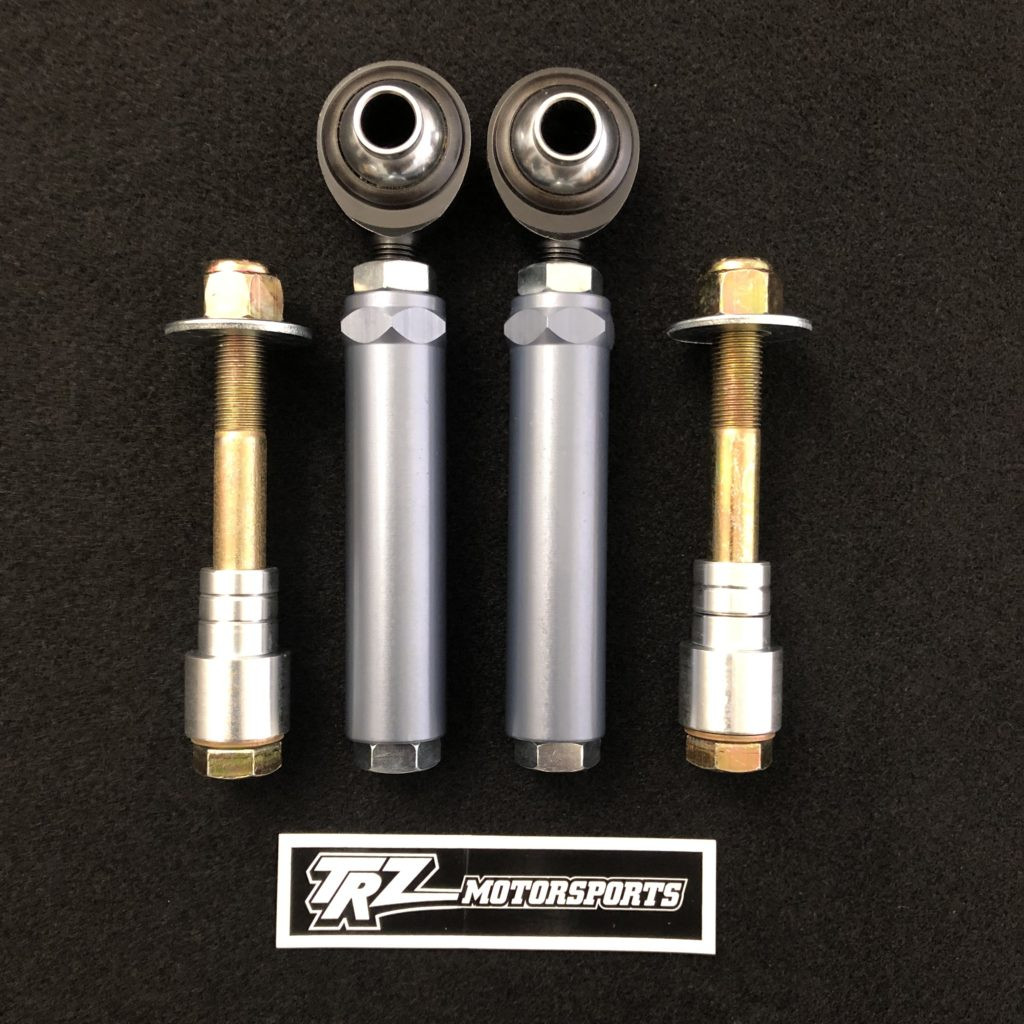

TRZ Motorsports Universal Tie-Rod / Bump Steer Kit for Rack and Pinion - Length: 2.625 (2.375 - 3.625) - 202-263
Universal Bump Steer & Tie-Rod Adjuster Kit for Rack-and-Pinion Systems
The TRZ Motorsports Universal Tie-Rod / Bump Steer Kit is designed to replace non-adjustable tie-rod ends and give you the ability to precisely dial in steering geometry - a must for serious race cars and custom chassis builds. With an adjustable length range of 2.375? to 3.625?, this kit ensures your steering setup stays stable and bump steer is minimized when properly dialed in.
Each kit includes high-strength chrome-moly rod ends, Grade 8 hardware, and precision-machined 6061 aluminum spacers. Installation requires drilling the stock spindle or steering arm's tapered hole to 1/2? so the hardware can seat correctly. Designed for use with both standard and narrowed Pinto rack-and-pinion systems using 1/2-20 threads.
TRZ outlines a simple method for determining the correct adjuster length by measuring your suspension's A-Dimension. If your required length exceeds 7?, you will need the optional Universal Weld-Up Kit, which includes 4130 tubing and RH/LH inserts for custom sizing.
Performance Features
- Replaces non-adjustable tie-rod ends for proper steering geometry
- Helps minimize bump steer when adjusted correctly
- Adjustable length range: 2.375? to 3.625?
- Includes chrome-moly rod ends, 6061 spacers, and Grade 8 hardware
- Requires drilling factory spindle/steering arm to 1/2?
- Compatible with standard and narrowed Pinto racks (1/2-20 thread)
- Optional weld-up kit for A-Dimension longer than 7?
How to Measure Your A-Dimension
- Point front wheels straight forward
- Center your rack-and-pinion assembly
- Aim tie-rods at the steering arm's mounting hole
- Measure from rack thread end to steering arm hole center
- Verify both sides match - unequal measurements indicate the rack is not centered
Weld-Up Kit Includes (If Needed)
- (2) 12? pieces of 1? 4130 tubing
- (2) 1/2-20 Right-Hand tube inserts
- (2) 1/2-20 Left-Hand tube inserts
Quick Specs
- Application: Rack-and-pinion steering systems
- Adjustable Length: 2.375? - 3.625?
- Thread Type: 1/2-20 (Pinto rack compatible)
- Rod Ends: Chrome-moly
- Spacers: 6061 aluminum
- Hardware: Grade 8
- Part Number: 202-263
Frequently Asked Questions
Do I need to modify my spindle to use this kit?
Yes. The spindle or steering arm tapered hole must be drilled to 1/2? to accept the supplied hardware.
How do I know if I need the weld-up kit?
If your measured A-Dimension exceeds 7 inches, choose the universal weld-up kit to ensure proper adjuster length.
Why Buy from Beefcake Racing?
Beefcake Racing supplies genuine TRZ Motorsports steering and suspension components with fast shipping and real tech support. For help selecting the right bump steer kit or steering components, contact sales@beefcakeracing.com or call 1-855-827-7223.
