Available for 2018 - 2023 Model Years Mustang and F-150 Truck equipped with the 10-Speed 10R80 Transmissions.
The 10RStager takes industry known 3 Relay Transbrake systems and blends this with the Smooth Stage modulation algorithm to create an all in one staging solution. The 10RStager will enable the 10R80 Transbrake when positioned into the Pre-Stage beams, so that the power adder of choice can build up boost. Once the target boost is achieved, the vehicle can slowly roll into the Staging beams without upsetting the suspension by simplify holding down the Stage button until the desired distance is achieved.
-

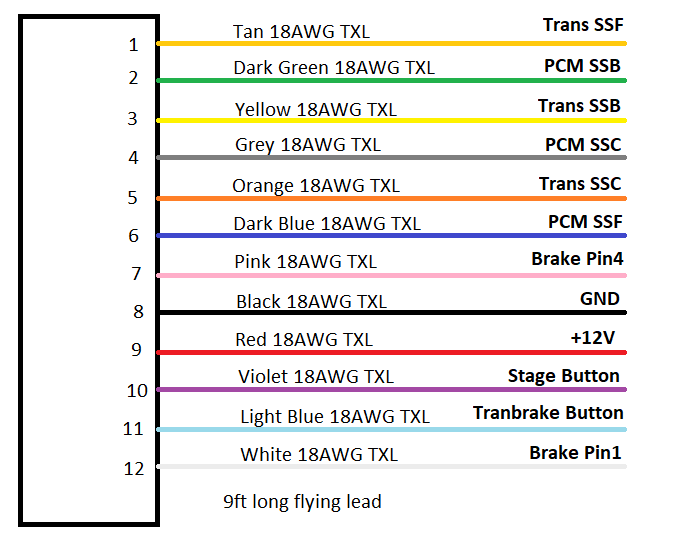

The 10RStager replaces and eliminates the need for similar 2 or 3 relay 10R80 Transbrake systems and uses the same wires to interface to the transmission.
-
Safe Transbrake enable feature in which the Transbrake can only be engaged when the foot brake is depressed. (This prevents damage by accidentally hitting the Transbrake button)
-
Uses a modified version of the Smooth Stage’s proprietary modulation scheme designed specifically for the 10R80 for slowly rolling into the Staging beams
-
12 Force/12 Speed settings to allow for easy adjustability to dial in the desired approach speed while Staging
-
LED indication of Power, TransBrake and Stage enable
-
1st Gear and 2nd Gear Transbrake option
-
Note: 2nd Gear requires a slight wiring modification and tune for enabling a 2nd gear launch
The 10RStager is the complete staging solution for the Ford 10R80 Transmission. As an all in one product, this box will engage the Transbrake in the 10R80 and will also creep the vehicle forward in the Staging lane by using smooth staging algorithms designed specifically for the 10R80.
NOTE: This will require your tuner to disable codes in the calibration. Product may not work on 2021 model years at this time. Check with your tuner for code disabling capability.
Call Beefcake Racing for more info on all True Motorsports Products 1-855-827-7223 from 9am-10pm EST.
