TBM Brakes XS3 Front Extreme Street Brake Kit (012-0255) - 2015-2026 Ford Mustang
Reduce unsprung weight and gain confident stopping performance with the TBM Brakes XS3 Front Extreme Street Brake Kit for the 2015-2026 Ford Mustang S550 & S650. Developed from more than 30 years of racing experience, the XS3 system bridges the gap between lightweight, single-thickness racing brakes and the larger, heavier street performance brake packages commonly used on late-model vehicles. This complete front kit saves approximately 58 pounds compared to the factory brakes while delivering strong pedal feedback, impressive brake torque, and dependable street manners.
The XS3 kit was specifically engineered to work with smaller-diameter and factory-size wheels without giving up braking capability. Its compact 12.19-inch vented rotor package fits most 15-inch and larger wheels when knuckle clearance allows, including many factory steel wheels and popular drag racing wheels. Billet aluminum calipers, stainless steel pistons, slotted and vented rotors, Hawk Performance HPS pads, and billet aluminum hats combine to provide a lightweight, durable braking solution for high-performance street and drag-oriented Mustang builds.
Features
- Designed for 2015-2026 Ford Mustang models
- Saves approximately 58 pounds compared to the factory front brake system
- Complete front brake kit with a total weight of approximately 16.25 pounds per side
- Compact design fits most 15-inch and larger wheels when knuckle clearance allows
- Compatible with many factory steel wheels and aftermarket drag racing wheels
- Billet caliper housings machined from solid 6061 aluminum alloy
- XS3 four-piston calipers with four 1.75-inch outside-diameter pistons per caliper
- Crossflow caliper design eliminates external transfer tubes
- Crossflow fluid passages promote even hydraulic pressure distribution between pistons
- Rigid caliper bridge design improves pedal feel and braking response
- Billet CNC-machined 304 stainless steel caliper pistons
- Two-piece caliper construction with a durable powder-coated finish
- Caliper color selected at the time of ordering
- Black anodized caliper brackets and billet aluminum rotor hats
- 12.19-inch slotted and vented front rotors
- Dark zinc-plated rotors help resist corrosion before and after installation
- Rotor finish may vary due to the zinc-plating process
- Mandated 12-point mounting hardware included
- Race-derived caliper design provides strong stopping power and improved pedal feedback
- Made in Bradenton, Florida, USA
Rotor Design
The included 12.19-inch cast rotors use a slotted and vented design to balance stopping power, heat management, durability, and weight. Their compact dimensions allow the brake package to fit behind many smaller factory and aftermarket wheels while still providing the cooling capacity required for demanding street performance applications. A dark zinc finish helps protect the rotors from rust and corrosion before installation and on areas not contacted by the brake pads.

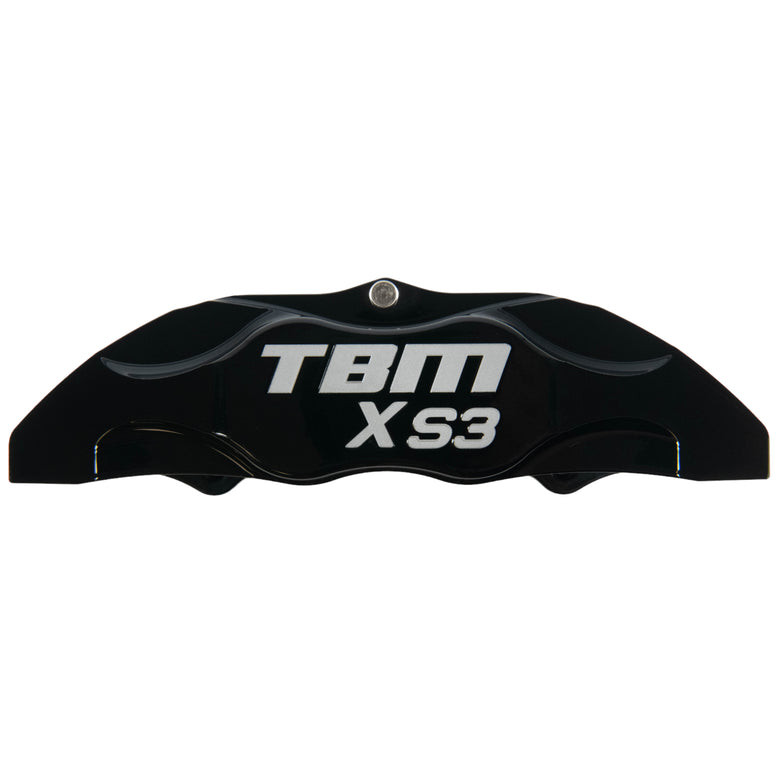

Caliper Design
The XS3 Extreme Street caliper is based on engineering principles developed through TBM's racing brake programs. Each billet aluminum caliper features a rigid bridge structure and four large stainless steel pistons to generate substantial clamping force and consistent brake torque. The internal crossflow fluid design eliminates exposed external tubes while promoting smooth operation and balanced piston pressure.
Brake Pads
This kit includes Hawk Performance HPS brake pads featuring a Ferro-Carbon friction compound. The HPS compound provides a strong balance of street-friendly stopping performance, manageable brake dust, and reduced noise compared to more aggressive racing compounds.
Billet Brake Hats
TBM's billet aluminum brake hats reduce weight by replacing the heavy steel center section found on a conventional one-piece rotor. Their stepped mounting design also allows minor axle offset adjustment to help achieve proper brake alignment during installation.
Kit Includes
- One 12.19-inch vented rotor, Part #3-121981087-1
- One 12.19-inch vented rotor, Part #3-121981087-2
- Two billet aluminum brake hats, Part #204-0209BL
- Two XS3 four-piston brake calipers in the selected color
- Two caliper brackets, Part #17-0061
- Complete set of Hawk Performance HPS brake pads, Part #6-0002HPS
- Complete mounting hardware kit, Part #011-0278
Fitment
- 2015 Ford Mustang S550
- 2016 Ford Mustang S550
- 2017 Ford Mustang S550
- 2018 Ford Mustang S550
- 2019 Ford Mustang S550
- 2020 Ford Mustang S550
- 2021 Ford Mustang S550
- 2022 Ford Mustang S550
- 2023 Ford Mustang S550
- 2024 Ford Mustang S550
- 2025 Ford Mustang S550
- 2026 Ford Mustang S550
Additional Notes
- Spindle modification is required for installation. Review the installation instructions before beginning the installation.
- Fits most 15-inch and larger wheels when the wheel design and knuckle assembly provide sufficient clearance.
- Wheel clearance should always be verified before installation.
- TBM does not recommend silicone-based brake fluid with these calipers.
- Use only approved DOT 3, DOT 4, or DOT 5.1 brake fluid.
- TBM Extreme 6 DOT 5.1 brake fluid is recommended for best results.
- The brake system is designed to perform best at approximately 600 to 800 PSI of brake pressure during normal braking.
- Proper master cylinder sizing and pedal ratio are essential for correct brake operation and performance.
- Front brake lines, line lock components, and brake fluid are available separately unless otherwise specified.
