TBM XS3 Front Extreme Street Brake Kit (012-0227) - 1998-2002 Chevy Camaro & Pontiac Firebird/Trans Am
Upgrade the front braking performance of your 1998-2002 Chevrolet Camaro, Pontiac Firebird, or Pontiac Trans Am with the TBM Brakes XS3 Front Extreme Street Brake Kit. Developed from more than 30 years of racing experience, the XS3 Series was engineered to bridge the gap between lightweight racing brake systems and the larger, heavier street performance brake packages commonly used on modern performance vehicles. Featuring compact 12.19-inch slotted and vented rotors, billet four-piston calipers, and Hawk Performance HPS brake pads, this kit delivers impressive stopping capability and responsive pedal feel while retaining compatibility with many 15-inch and larger wheels.
Designed specifically for 1998-2002 LS-powered 4th Gen F-Body applications using the factory front hubs and LS spindles, the XS3 system combines proven racing technology with a street-focused package. Each caliper is machined from solid 6061 aluminum and uses four 1.75-inch pistons for substantial clamping force. TBM's internal crossflow design eliminates external transfer tubes while promoting even hydraulic pressure distribution. Billet CNC-machined 304 stainless steel pistons, black anodized brackets and hats, dark zinc-plated rotors, and quality 12-point hardware complete a durable brake system ready for serious street and performance use.
Features
- Designed for 1998-2002 Chevrolet Camaro 4th Gen applications with LS spindles
- Designed for 1998-2002 Pontiac Firebird applications with LS spindles
- Designed for 1998-2002 Pontiac Trans Am applications with LS spindles
- Reuses the factory front hubs
- Race-inspired XS3 four-piston front calipers
- Billet caliper housings machined from solid 6061 aluminum alloy
- Four 1.75-inch outside-diameter pistons per caliper
- Billet CNC-machined 304 stainless steel caliper pistons
- Crossflow caliper design eliminates external transfer tubes
- Internal crossflow fluid passages promote even hydraulic pressure distribution
- Rigid all-billet caliper construction provides excellent clamping force and responsive pedal feedback
- Two-piece caliper construction with durable powder-coated finish
- Available caliper colors include Race Red, Satin Blue Metallic, Velocity Yellow, Gunmetal Gray, and Onyx Black
- Black anodized caliper brackets and billet aluminum brake hats
- 12.19-inch slotted and vented front rotors
- Dark zinc-plated rotors help provide corrosion resistance before and after installation
- Rotor finish may vary due to the zinc-plating process
- Compact brake package designed to fit most 15-inch and larger wheels
- Compatible with many steel factory 15-inch wheels and drag racing wheels when sufficient clearance is available
- Includes high-quality 12-point mounting hardware
- Race-derived caliper design provides excellent stopping performance and improved pedal feel
- Approximate weight: 16.20 lbs per side
- Made in Bradenton, Florida, USA

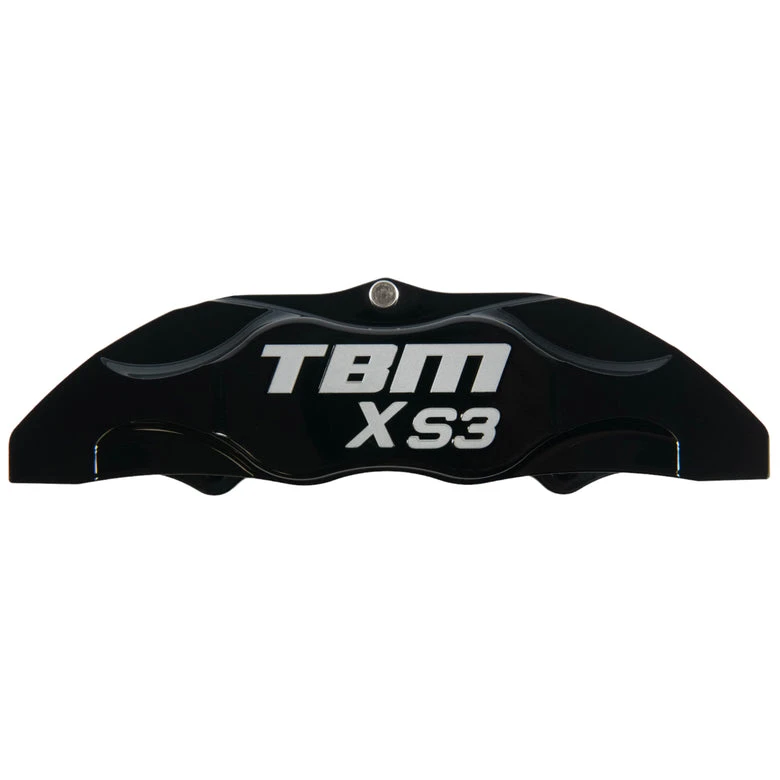

Caliper Design
The XS3 Extreme Street caliper incorporates technology developed through TBM's racing brake programs into a compact performance package. Each all-billet caliper features a rigid bridge structure designed to minimize flex and provide a more responsive pedal feel. Four 1.75-inch stainless steel pistons generate substantial clamping force, while the internal crossflow fluid design promotes smooth operation and balanced pressure across the pistons without requiring exposed external crossover tubes.
Rotor Design
The included 12.19-inch cast rotors combine slotted and vented construction to balance stopping performance, cooling capacity, durability, weight, and wheel clearance. Their compact diameter allows the XS3 system to fit behind most 15-inch and larger factory or aftermarket wheels when adequate clearance is available. A dark zinc-plated finish helps protect against rust and corrosion before installation and on areas of the rotor that are not swept by the brake pads.
Brake Pads
TBM pairs this XS3 brake kit with Hawk Performance HPS brake pads featuring a Ferro-Carbon friction compound. The HPS material delivers a strong balance of stopping performance and street-friendly operation without the excessive noise and brake dust often associated with more aggressive race-oriented compounds.
Billet Brake Hats
TBM's billet aluminum brake hats reduce unnecessary rotating mass by replacing the heavier steel center section commonly found in traditional one-piece rotors. The unique stepped mounting design also provides minor offset adjustment to assist with proper brake alignment during installation.
Kit Includes
- One 12.19-inch vented rotor, Part #3-121981087-1
- One 12.19-inch vented rotor, Part #3-121981087-2
- Two billet aluminum brake hats, Part #204-0209BL
- Two XS3 four-piston brake calipers in the selected color
- Two caliper brackets, Part #17-0098
- Complete set of Hawk Performance HPS brake pads, Part #6-0002HPS
- Complete hardware kit, Part #011-0360
Fitment
- 1998 Chevrolet Camaro 4th Gen with LS Spindles
- 1999 Chevrolet Camaro 4th Gen with LS Spindles
- 2000 Chevrolet Camaro 4th Gen with LS Spindles
- 2001 Chevrolet Camaro 4th Gen with LS Spindles
- 2002 Chevrolet Camaro 4th Gen with LS Spindles
- 1998 Pontiac Firebird with LS Spindles
- 1999 Pontiac Firebird with LS Spindles
- 2000 Pontiac Firebird with LS Spindles
- 2001 Pontiac Firebird with LS Spindles
- 2002 Pontiac Firebird with LS Spindles
- 1998 Pontiac Trans Am with LS Spindles
- 1999 Pontiac Trans Am with LS Spindles
- 2000 Pontiac Trans Am with LS Spindles
- 2001 Pontiac Trans Am with LS Spindles
- 2002 Pontiac Trans Am with LS Spindles
Additional Notes
- Designed for 1998-2002 F-Body applications using LS spindles and factory front hubs.
- This kit reuses the factory front hubs.
- Fits most 15-inch and larger wheels when sufficient brake and wheel clearance is available.
- Always verify wheel barrel and caliper clearance before installation.
- TBM does not recommend silicone-based brake fluid with these calipers.
- Use only approved DOT 3, DOT 4, or DOT 5.1 brake fluid.
- TBM Extreme 6 brake fluid is recommended for best results.
- This brake system performs best at approximately 600 to 800 PSI brake pressure during normal braking.
- Proper master cylinder sizing and pedal ratio are essential for correct brake operation and performance.
