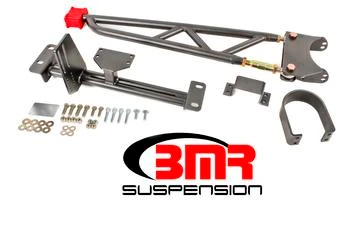

BMR Tunnel Mounted Torque Arm for Stock Exhaust with DSL - Black (TA011H) - 1993-2002 GM F-Body
Improve handling, dramatically reduce wheel hop, and add serious strength and adjustability to your 4th-Gen GM F-body with a Tunnel Mounted Torque Arm from BMR Suspension. The weak factory stamped steel torque arm deflects significantly under load, even when subjected to mild horsepower and torque levels. BMR’s tunnel-mounted system replaces the flimsy stock component with a robust layout engineered to efficiently transfer power directly to the tires without compromising chassis integrity.
Constructed from heavy-duty 1.25-inch DOM steel tubing with thick 0.120-inch walls and 1/4-inch laser-cut, CNC-formed steel plate, this system is built to withstand extreme loads. By moving the torque arm mounting point away from the vulnerable transmission tailshaft and relocating it to a dedicated transmission tunnel crossmember, this kit eliminates the risk of tailshaft breakage in high-horsepower applications. The specialized TA011 crossmember is optimized specifically for F-bodies running factory stock exhaust layouts. This specific kit features a fully integrated, NHRA-legal Driveshaft Safety Loop (DSL) built into the crossmember, providing required safety compliance for high-performance track use.
Features
- Relocates torque arm mount off the transmission tailshaft to protect the casing from high-load damage
- Includes an integrated, NHRA-legal Driveshaft Safety Loop (DSL) for track safety compliance
- Specially configured crossmember tailored for standard factory stock exhaust configurations
- Provides five mounting positions on the crossmember for precise instant center and pinion angle tuning
- Features a CNC-machined 4130 chromoly adjuster for easy, on-car pinion angle adjustments
- Front mount utilizes a rugged 95-durometer polyurethane bushing to transfer power cleanly with minimal NVH increase
- Constructed from high-tensile 1.25-inch, 0.120-inch wall DOM steel tubing and 1/4-inch steel plate
- Reinforces the floor plan by bracing the transmission tunnel structure
- Utilizes heavy-duty rod ends at the factory differential mounting locations
- Finished in a durable, long-lasting black hammertone powdercoat proudly made in the U.S.A.
Fitment
Chevrolet Camaro (F-Body):
- 1993 Chevrolet Camaro
- 1994 Chevrolet Camaro
- 1995 Chevrolet Camaro
- 1996 Chevrolet Camaro
- 1997 Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Pontiac Firebird / Trans Am (F-Body):
- 1993 Pontiac Firebird / Trans Am
- 1994 Pontiac Firebird / Trans Am
- 1995 Pontiac Firebird / Trans Am
- 1996 Pontiac Firebird / Trans Am
- 1997 Pontiac Firebird / Trans Am
- 1998 Pontiac Firebird / Trans Am
- 1999 Pontiac Firebird / Trans Am
- 2000 Pontiac Firebird / Trans Am
- 2001 Pontiac Firebird / Trans Am
- 2002 Pontiac Firebird / Trans Am
