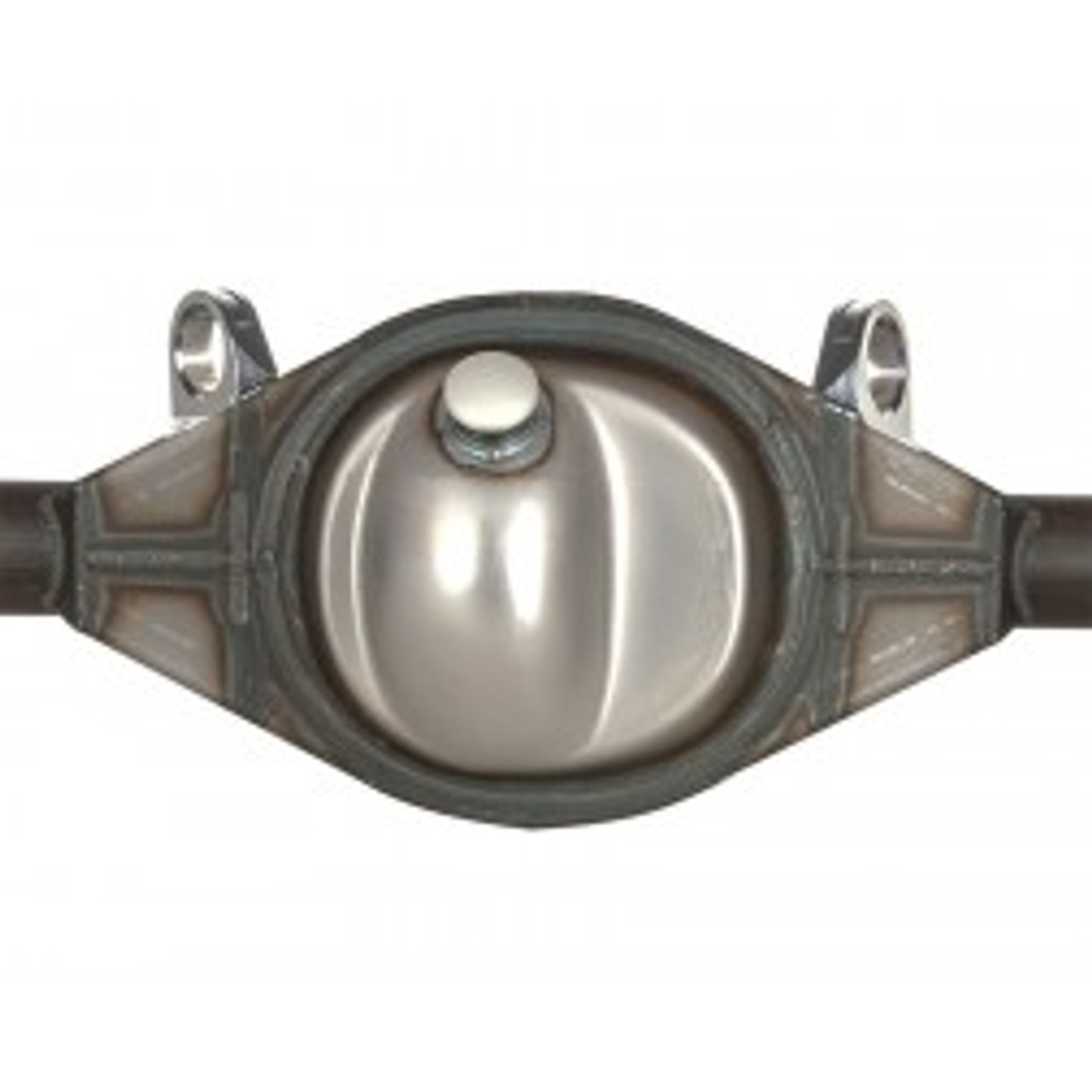

Strange 1979-2004 Mustang 9" Heavy Duty Housing - With Ends and Mounts HF9M86ME

Strange Engineering 9" Heavy Duty Housing for 1979-2004 Mustang

With ends and mounts

Heavy duty housing centers are constructed from .141” mild steel with a heavy duty .282” face plate. Tube insertion locations are slotted to allow complete and secure welding of the tubes to the housing. Internal plates gusset the housing and provide internal support to the ends of the tubes. The cover is designed to provide the clearance necessary for cases with heavy duty main caps and also allowing the use of 9 1/2” gear sets.

The housing is fitted with fill and drain plugs, tubed with your choice of .250” wall 3” or 3 1/4” mild steel tubing, and choice of mounts and housing ends. While larger tubing is stronger, your mounts selection may have determined tube diameter. This configuration is the safest way to maintain the proper alignment of the housing ends. The fixturing and welding of the housing ends is always our last operation. For vehicles that will see very hard launches, there is an option to weld a back brace along the rear of the housing. It is designed to eliminate housing and tube flex that can occur under harsh conditions.

Includes: 3 1/4 OD tubes, fill & drain, and upper and lower control arm mounts, coil spring mounts in factory location, and housing ends
