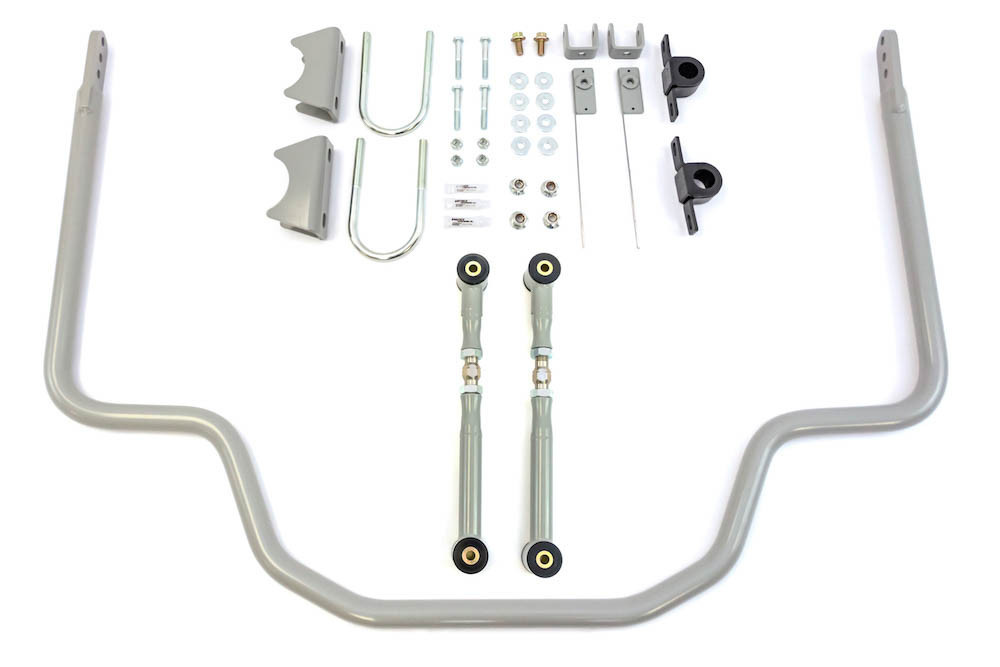

Steeda F-150 4WD Adjustable 1-1/8-Inch Rear Sway Bar (555-1027) - 2015-2026 Ford F-150
Improve cornering control, reduce body roll, and give your 4-wheel-drive Ford F-150 more predictable handling with the Steeda Adjustable 1-1/8-Inch Rear Sway Bar. Designed for 2015-2026 F-150 4WD models, this solid steel sway bar increases rear roll stiffness to help keep your truck flatter and more planted through corners without sacrificing the comfortable ride quality you expect during everyday driving.
A sway bar primarily works to control side-to-side suspension movement during cornering rather than normal vertical suspension travel. This allows the Steeda rear sway bar to sharpen handling and improve stability without relying on significantly stiffer springs or compromising straight-line ride comfort.
Features
- Designed for 2015-2026 Ford F-150 4WD applications
- 1-1/8-inch rear sway bar
- Solid steel construction
- Adjustable stiffness for handling customization
- Adjustable end links included
- Allows sway bar adjustment while installed on the truck
- Helps reduce body roll during cornering
- Helps reduce understeer
- Improves stability and overall handling control
- Billet steel ends for increased strength and durability
- Durable powder-coated finish
- Compatible with stock ride height
- Compatible with trucks using up to a 2-inch lift
- Works with both 2015-2020 and 2021-2026 F-150 4WD trucks
- Made in the USA
Reduced Body Roll and Understeer
The Steeda rear sway bar uses torsional resistance to transfer load from one side of the suspension to the other during cornering. This helps keep the truck more level through turns, reducing excessive body roll and improving the connection between the driver and chassis.
Increasing rear roll stiffness can also help reduce the factory tendency toward understeer, resulting in a more balanced and responsive handling feel when navigating curves, ramps, and other directional changes.
Improved Handling Without Sacrificing Ride Quality
Unlike significantly stiffer springs, a sway bar primarily resists suspension movement when one side of the vehicle moves differently from the other. Normal vertical suspension movement remains available for everyday driving, allowing the truck to retain comfortable street manners while gaining additional control when cornering.
Adjustable Stiffness
The adjustable sway bar design allows you to fine-tune rear roll stiffness to better suit your suspension setup and driving preferences. Whether you want a more controlled daily driver or a sharper handling response, the adjustable design gives you additional flexibility compared to a fixed-rate bar.
Adjustable End Links
Steeda includes adjustable end links that allow the sway bar setup to be adjusted while it remains installed on the truck. This simplifies suspension tuning and provides the additional range needed for compatibility with stock-height trucks as well as F-150s equipped with up to approximately 2 inches of lift.
Heavy-Duty Construction
The sway bar is manufactured from solid steel and features billet steel ends designed to handle demanding suspension loads. Steeda uses billet ends rather than conventional coined ends to provide increased durability and resistance to cracking in high-stress areas.
A durable powder-coated finish helps protect the sway bar and end links from exposure to the elements while providing a clean performance appearance underneath the truck.
Fitment
- 2015 Ford F-150 4WD
- 2016 Ford F-150 4WD
- 2017 Ford F-150 4WD
- 2018 Ford F-150 4WD
- 2019 Ford F-150 4WD
- 2020 Ford F-150 4WD
- 2021 Ford F-150 4WD
- 2022 Ford F-150 4WD
- 2023 Ford F-150 4WD
- 2024 Ford F-150 4WD
- 2025 Ford F-150 4WD
- 2026 Ford F-150 4WD
Important Fitment Note
If your F-150 4WD has been lowered, additional fitment considerations apply. Please contact us before ordering so we can help pair your truck with the correct sway bar configuration.
Additional Notes
- Designed specifically for 4-wheel-drive F-150 models.
- Compatible with stock ride height through approximately a 2-inch lift.
- Adjustable end links are included.
- Lowered 4WD F-150 owners should contact us before ordering to determine the proper sway bar setup.
- Part Number: 555-1027
