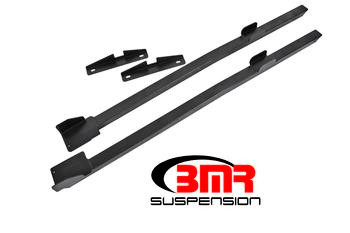

BMR Boxed Weld-On Subframe Connectors - Black Hammertone Powder Coat (SFC025H) - 1979-2004 Ford Mustang Hardtop
Eliminate structural unibody flex, prevent body distortion, and drastically improve power transfer with the Black Hammertone Boxed Weld-On Subframe Connectors (SFC025H) from BMR Suspension. The legendary Ford Fox and SN95 chassis platforms are notorious for dramatic structural flexing, twisting, and bowing under load—even when subjected to mild torque and horsepower levels. This severe deflection is essentially wasted energy that degrades launching efficiency and handling consistency. Over time, persistent unibody flexing can cause permanent stress damage, ranging from interior squeaks and rattles to misaligned door jams and cracked windshields. BMR engineered these high-strength rectangular-tube connectors to permanently tie the independent front and rear subframe structures together into a rigid, unified foundation.
Built for uncompromised structural rigidity, the SFC025H subframe connectors are proudly manufactured in the USA from heavy-duty rectangular steel tubing. The reinforcement end caps and mounting tabs are precision laser-cut and CNC-formed from ultra-tough 3/16-inch and 1/4-inch structural steel plate to ensure maximum weld surface area and structural integration. This robust two-point design solidly anchors into the front subframe and extends rearward to lock directly into the rear lower control arm mounts, delivering maximum reinforcement where the rear suspension transfers heavy load to the chassis. Finished in BMR's signature, highly durable black hammertone powder coat, these connectors resist rust, scratches, and road grime. The tight, compact profile is specifically engineered to preserve optimal ground clearance on lowered street and track cars without requiring tedious floor pan modifications. As an added benefit, the heavy-wall boxed structure provides a safe, solid, and secure jacking point that eliminates common floor pan or pinch weld damage during service.
IMPORTANT FITMENT & INSTALLATION NOTES:
- Vehicle Compatibility: Fits 1979-2004 Ford Mustang Hardtop (Coupe/Fastback) models across Fox, SN95, and New Edge generations (including Fox-body 5.0, SVT Cobra, Mach 1, and GT variants).
- Chassis Restriction: This kit is engineered specifically for hardtop models and is NOT compatible with Convertible chassis due to different floor pan and reinforcement layouts.
- Installation: This is a permanent weld-on upgrade. Raw metal must be exposed at the weld points on the factory subframes prior to installation, and bare areas must be coated post-weld to prevent rust. Estimated installation time is 2 to 3 hours.
Features
- Fits 1979-2004 Ford Mustang Hardtop models (Fox Body, SN95, and New Edge)
- Dramatically stiffens the unibody chassis to eliminate flex, twist, and energy loss
- Locks the front and rear subframes together by tying directly into the rear lower control arm mounts
- Manufactured from heavy-duty rectangular structural steel tubing for superior boxed rigidity
- Includes 3/16-inch and 1/4-inch laser-cut, CNC-formed steel plates for maximum reinforcement
- Protects the chassis from stress damage like misaligned doors, interior rattles, and body distortion
- Compact, tight-fitting low-profile design ensures ample ground clearance on lowered vehicles
- Provides a flat, structural, and safe underbody location for jacking up the car
- Premium black hammertone powder coat finish delivers long-lasting looks and excellent corrosion protection
- Engineered for high-load street performance, hard drag strip launches, and road course handling
- Permanent weld-in design takes approximately 2-3 hours to fully install
- Proudly designed and manufactured in the U.S.A.
Fitment
Ford Mustang (Fox / SN95 / New Edge Hardtop Platforms - Coupe & Fastback Only):
- 1979 Ford Mustang
- 1980 Ford Mustang
- 1981 Ford Mustang
- 1982 Ford Mustang
- 1983 Ford Mustang
- 1984 Ford Mustang
- 1985 Ford Mustang
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
- 1994 Ford Mustang
- 1995 Ford Mustang
- 1996 Ford Mustang
- 1997 Ford Mustang
- 1998 Ford Mustang
- 1999 Ford Mustang
- 2000 Ford Mustang
- 2001 Ford Mustang
- 2002 Ford Mustang
- 2003 Ford Mustang
- 2004 Ford Mustang
