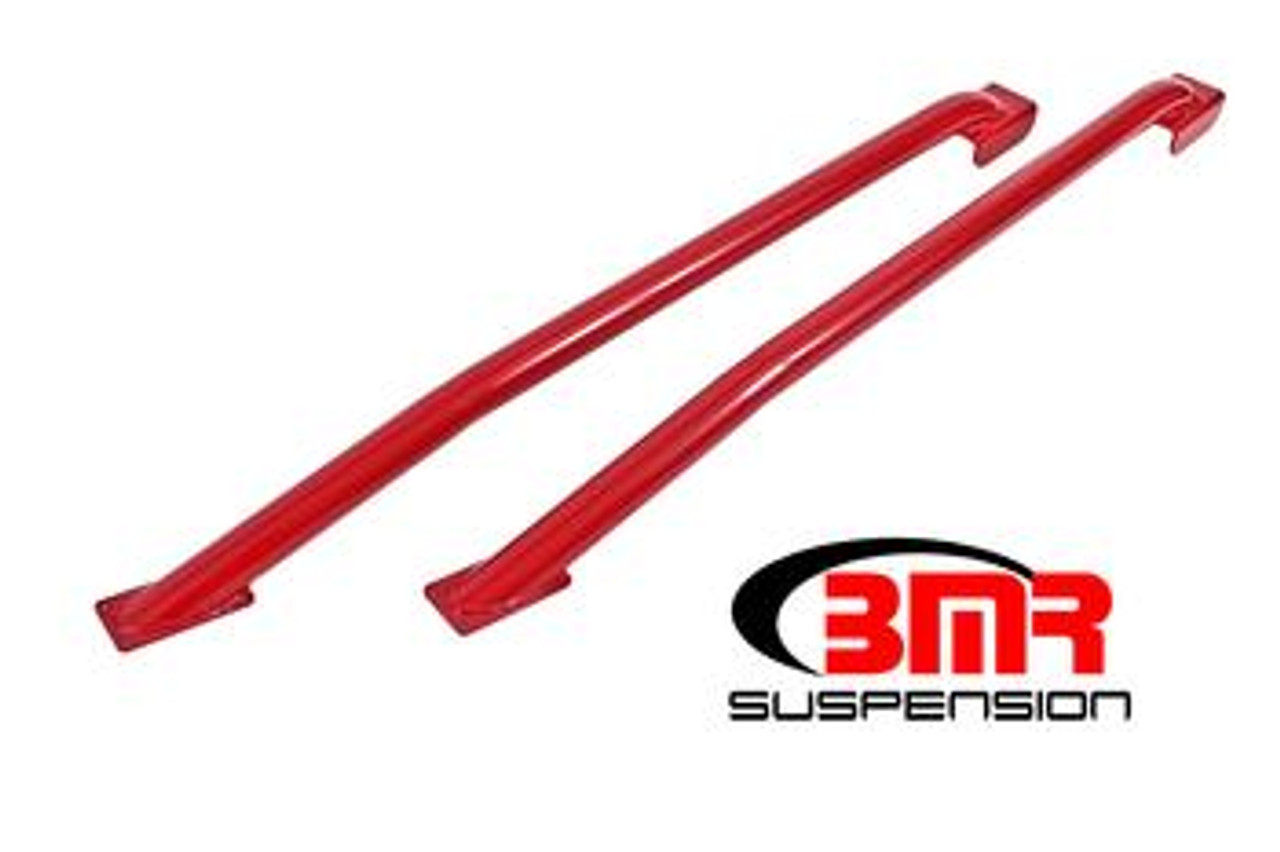

BMR Tubular Weld-On Subframe Connectors - Red Powder Coat (SFC024R) - 1979-2004 Ford Mustang
Eliminate structural unibody flex, reduce body twist, and drastically enhance power transfer with the Red Tubular Weld-On Subframe Connectors (SFC024R) from BMR Suspension. The iconic Ford Fox Body, SN95, and New Edge Mustang chassis platforms are notorious for dramatic structural flexing and bowing under load—even when subjected to mild torque and horsepower levels. This chassis deflection represents wasted energy that degrades launching efficiency, delays steering response, and compromises cornering traction. Over time, persistent unibody twisting leads to structural degradation, causing annoying interior squeaks, dashboard rattles, and potential misalignments. BMR engineered these high-strength tubular connectors to tie the independent front and rear factory subframe structures into a rigid, unified frame foundation.
Built for exceptional structural integrity, the SFC024R subframe connectors are proudly manufactured in the USA from heavy-duty 1-5/8-inch structural steel tubing. The heavy-wall tubular construction offers an incredible strength-to-weight ratio, resisting severe torsional twisting from hard drag strip launches or high-G cornering. The weld-on end mounting plates are precision laser-cut and CNC-formed from ultra-tough 3/16-inch structural steel plate to provide an exact fit and maximized weld contact area. The entire assembly is fully MIG-welded for maximum structural durability. Finished in a premium, high-gloss red powder coat, these connectors resist chipping, rust, and harsh road conditions. The tight, compact profile is carefully engineered to curve tightly along the floorboards, preserving optimal ground clearance on lowered street and track vehicles without requiring any floor pan modifications. As an added benefit, the round-tube frame structure provides a highly stable and secure jacking point, preventing common damage to vulnerable pinch welds, rocker panels, or floorboards during vehicle service.
IMPORTANT FITMENT & INSTALLATION NOTES:
- Vehicle Compatibility: Fits all 1979-2004 Ford Mustang models across Fox Body, SN95, and New Edge generations (including Coupe, Hatchback, Fastback, and Convertible configurations). Compatible with 2.3L, 3.8L V6, 4.6L V8, 5.0L, SVT Cobra, Mach 1, and Bullitt models.
- Installation: This is a permanent weld-in upgrade. Raw metal must be exposed at the chassis contact points on the factory subframes prior to welding, and bare areas must be re-coated or painted post-weld to prevent surface rust. Estimated installation time is 3 to 4 hours.
Features
- Fits 1979-2004 Ford Mustang models (Fox Body, SN95, and New Edge generations)
- Dramatically stiffens the unibody chassis to eliminate flex, twist, and launching energy loss
- Locks the front and rear subframes together using a heavy-duty, two-point structural connection
- Manufactured from premium heavy-duty 1-5/8" structural steel tubing for optimal weight and strength
- Reinforced with precision laser-cut and CNC-formed 3/16-inch steel mounting brackets
- Fully MIG-welded construction ensures maximum structural life and durability
- Tight-fitting, ultra-low-profile design delivers plenty of ground clearance on lowered cars
- Provides a solid, secure underbody location for safely jacking up the vehicle
- Minimizes chassis deflection to significantly reduce interior squeaks, cracks, and rattles
- Vibrant red powder coat finish provides long-lasting durability and excellent corrosion protection
- Engineered explicitly for high-load street performance, drag racing, and road course handling
- Permanent weld-on design takes approximately 3-4 hours for complete installation
- Proudly designed and manufactured in the U.S.A.
Fitment
Ford Mustang (Fox Body / SN95 / New Edge Platforms - All Models):
- 1979 Ford Mustang
- 1980 Ford Mustang
- 1981 Ford Mustang
- 1982 Ford Mustang
- 1983 Ford Mustang
- 1984 Ford Mustang
- 1985 Ford Mustang
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
- 1994 Ford Mustang
- 1995 Ford Mustang
- 1996 Ford Mustang
- 1997 Ford Mustang
- 1998 Ford Mustang
- 1999 Ford Mustang
- 2000 Ford Mustang
- 2001 Ford Mustang
- 2002 Ford Mustang
- 2003 Ford Mustang
- 2004 Ford Mustang
