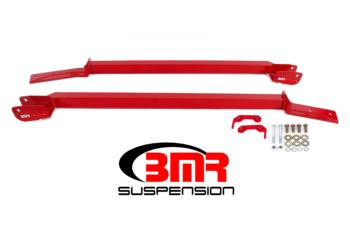

BMR Boxed Bolt-On Subframe Connectors - Red Powder Coat (SFC023R) - 1993-2002 GM F-Body Hardtop
Eliminate unibody chassis flex, prevent body twist, and optimize power delivery in your fourth-generation GM F-Body with the Red Boxed Bolt-On Subframe Connectors (SFC023R) from BMR Suspension. The 1993-2002 Camaro and Firebird unibody platforms are notorious for structural flexing and distortion under load—even when subjected to mild factory torque and horsepower levels. This severe deflection allows the body to twist during hard acceleration, causing inconsistent suspension loading, delayed handling transitions, and wasted power transfer. BMR engineered these high-strength rectangular-tube connectors to anchor the independent front and rear factory subframe structures into a single rigid foundation, ensuring immediate power transfer and crisp suspension reaction times.
Built for uncompromised structural rigidity, the SFC023R subframe connectors are proudly manufactured in the USA from heavy-duty 2 x 2-inch square structural steel tubing with a robust 0.083-inch wall thickness. While competing suspension designs utilize thinner or round-tube layouts, BMR's boxed steel structure delivers vastly superior resistance to vertical and torsional bending. The heavy-duty bracketry is precision laser-cut and CNC-formed from 3/16-inch structural steel plate to provide an absolute, exact fit against factory unibody contours. The entire system is fully MIG-welded for exceptional joint strength and finished in a rich, high-gloss red powder coat to fend off moisture, salt, and road debris. As an added benefit, this true 100% bolt-on kit links the actual structural subframes directly together rather than stopping short at the suspension pick-up points, giving you a safe, rigid underbody location for safely jacking up your vehicle without damaging the factory rocker pinch welds.
IMPORTANT FITMENT & INSTALLATION NOTES:
- Vehicle Compatibility: Fits all 1993-2002 fourth-generation GM F-Body rear-wheel-drive platforms (Chevrolet Camaro, Z28, SS, and Pontiac Firebird, Formula, Trans Am).
- Chassis Restriction: This kit is engineered specifically for hardtop and T-top models only. It is NOT compatible with Convertible chassis layouts due to floor pan reinforcement differences.
- Installation: Complete 100% bolt-on design requiring standard mechanical hand tools. Includes all necessary heavy-duty mounting hardware and brackets. Estimated installation time is approximately 1 to 2 hours.
Features
- Fits 1993-2002 GM F-Body platforms (Camaro, Z28, SS, Firebird, Formula, Trans Am)
- Designed exclusively for hardtop and T-top body styles (excludes Convertibles)
- Dramatically stiffens the unibody chassis to eliminate flex, body twist, and launching energy loss
- True two-point structural design connects the actual front and rear factory subframes together
- Manufactured from premium 2 x 2-inch, 0.083-inch wall boxed square steel tubing
- Reinforced with high-strength 3/16-inch laser-cut and CNC-formed structural steel plates
- 100% bolt-on design installs securely with standard hand tools—no chassis welding required
- Provides a solid, flat underbody location for safely jacking up the vehicle
- Vibrant red powder coat finish delivers premium styling and superior corrosion protection
- Optimized for high-stress street performance, hard drag strip launches, and road course handling
- Supplied complete with all high-strength assembly brackets and mounting hardware
- Straightforward and quick mechanical installation takes roughly 1-2 hours
- Proudly designed and manufactured in the U.S.A.
Fitment
GM F-Body (4th Gen Hardtop & T-Top Platforms Only):
- 1993 Chevrolet Camaro / Pontiac Firebird
- 1994 Chevrolet Camaro / Pontiac Firebird
- 1995 Chevrolet Camaro / Pontiac Firebird
- 1996 Chevrolet Camaro / Pontiac Firebird
- 1997 Chevrolet Camaro / Pontiac Firebird
- 1998 Chevrolet Camaro / Pontiac Firebird
- 1999 Chevrolet Camaro / Pontiac Firebird
- 2000 Chevrolet Camaro / Pontiac Firebird
- 2001 Chevrolet Camaro / Pontiac Firebird
- 2002 Chevrolet Camaro / Pontiac Firebird
