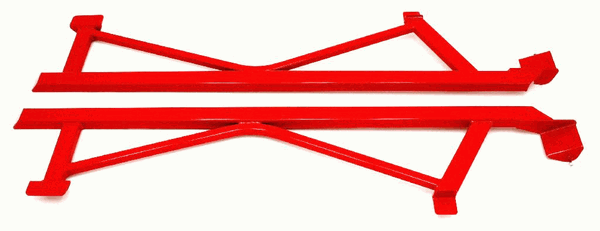

BMR 5-Point Boxed Weld-On Subframe Connectors - Red Powder Coat (SFC011R) - 2005-2014 Ford Mustang & 2007-2014 Shelby GT500
Eliminate unibody distortion, banish interior rattles, and unlock precise handling on your S197 platform with the Red 5-Point Boxed Weld-On Subframe Connectors (SFC011R) from BMR Suspension. Under hard acceleration, high-torque drag strip launches, or high-G cornering, the factory unibody chassis experiences severe torsional twisting and deflection because the front and rear subframes are independent structures. This persistent bowing degrades launcher efficiency, causes erratic rear-end tracking, and leads to permanent body alignment issues like doors hanging unevenly or windshields cracking under stress. BMR engineered these high-strength boxed steel connectors to form a massive underbody structural network, locking the front and rear of your vehicle together into a single rigid foundation.
Engineered for unyielding structural rigidity, the SFC011R connectors are fabricated in the USA using premium, heavy-duty square and rectangular steel tubing for maximum resistance to vertical bending and lateral shear. The outriggers and mounting tabs are precision laser-cut and CNC-formed from heavy-gauge 3/16-inch and 1/4-inch structural steel plate to handle punishing race track loads. Featuring an advanced 5-point anchoring layout, these units weld directly to the front subframe, seat tightly along the floor pan cross-members, and anchor directly into the high-stress rear lower control arm mounts. The complete assembly is fully MIG-welded and finished in a vibrant, high-gloss red powder coat that stands up to track heat, road salt, and moisture. The tight, compact geometry curves tightly to the body to preserve optimal ground clearance on aggressively lowered cars, while the robust rectangular profile serves as a perfectly straight and secure jacking rail to lift your car without bending factory pinch welds or rocker panels.
IMPORTANT FITMENT & INSTALLATION NOTES:
- Vehicle Compatibility: Fits all 2005-2014 Ford Mustang configurations (V6, GT, Boss 302) and 2007-2014 Shelby GT500 models.
- Chassis Design: Low-profile design sits flush with the underbody to prevent ground clearance issues without requiring floor pan modifications.
- Installation: This is a permanent weld-in structural upgrade requiring MIG or TIG welding equipment. The red powder coat finish must be cleanly ground back at all five chassis contact points before welding to ensure deep penetration. Average shop installation time is approximately 2 to 3 hours.
Features
- Fits all 2005-2014 Ford Mustang models (V6, GT, Boss 302) and 2007-2014 Shelby GT500
- Dramatically stiffens the S197 unibody structure to stop performance-robbing chassis deflection
- Advanced 5-point weld-on configuration ties the front subframe directly into the rear lower control arm pockets
- Manufactured from heavy-duty, high-tensile square and rectangular boxed structural steel tubing
- Reinforced with heavy-duty 3/16-inch and 1/4-inch laser-cut, CNC-formed structural steel brackets
- Fully MIG-welded construction guarantees excellent joint integrity and maximum service life
- Forms a permanent, rigid addition to the chassis that minimizes interior squeaks, cracks, and rattles
- Streamlined, tight-fitting design maintains excellent ground clearance on slammed or lowered vehicles
- Rectangular tube footprint offers an ultra-secure, long jacking location to prevent pinch weld distortion
- Vibrant red powder coat finish provides exceptional undercar looks and robust corrosion protection
- Engineered explicitly for high-horsepower street performance, hardcore drag racing, and road course handling
- Permanent weld-in layout requires roughly 2-3 hours of shop installation time
- Proudly designed and manufactured in the U.S.A.
Fitment
Ford S197 Performance Chassis Platform:
- 2005 Ford Mustang (V6, GT)
- 2006 Ford Mustang (V6, GT)
- 2007 Ford Mustang & Shelby GT500
- 2008 Ford Mustang & Shelby GT500
- 2009 Ford Mustang & Shelby GT500
- 2010 Ford Mustang & Shelby GT500
- 2011 Ford Mustang & Shelby GT500
- 2012 Ford Mustang, Boss 302 & Shelby GT500
- 2013 Ford Mustang, Boss 302 & Shelby GT500
- 2014 Ford Mustang & Shelby GT500
