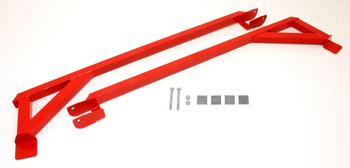

BMR 3-Point Boxed Weld-On Subframe Connectors - Red Powder Coat (SFC008R) - 1982-1992 GM F-Body
Eliminate unibody distortion, banish interior rattles, and unlock precise handling on your third-generation GM platform with the Red 3-Point Boxed Weld-On Subframe Connectors (SFC008R) from BMR Suspension. The 1982-1992 Camaro and Firebird chassis are notorious for extreme torsional twisting and longitudinal flexing under load—even when subjected to mild factory torque and horsepower levels. Because the factory front and rear subframes are independent structures separated by a thin floor pan, heavy acceleration and hard cornering lead to severe chassis deflection. Over time, this flexing acts like an un-damped spring, resulting in wasted launch energy, inconsistent alignment, misaligned doors, T-top leaks, and cracked windshields. BMR engineered these heavy-duty boxed connectors to permanently link the front and rear subframes, forging a rigid underbody backbone.
Built to handle punishing track abuse, the SFC008R subframe connectors are proudly manufactured in the USA from heavy-duty structural rectangular steel tubing that resists vertical bending far better than round tube designs. The heavy-duty outriggers and reinforcement brackets are precision laser-cut and CNC-formed from premium 3/16-inch and 1/4-inch structural steel plate to provide an absolute, flush match against original unibody contours. This robust design connects the front subframe, loops underneath the floor pan, and ties directly into the high-stress rear lower control arm mounts, anchoring the entire rear suspension footprint. The entire subframe rail matrix is fully MIG-welded for unyielding strength and finished in a vibrant, high-gloss red powder coat to fend off moisture, rust, and road grime. The tight, low-profile layout fits snugly against the floor pan to preserve maximum ground clearance on lowered cars, while the flat rectangular steel structure provides a safe, solid underbody jacking rail that protects your factory rocker panels and pinch welds from damage.
IMPORTANT FITMENT & INSTALLATION NOTES:
- Vehicle Compatibility: Fits 1982-1992 third-generation GM F-Body rear-wheel-drive platforms across all trim levels (including Chevrolet Camaro, Sport Coupe, Berlinetta, Z28, IROC-Z, and Pontiac Firebird, SE, Formula, Trans Am, GTA).
- Exhaust Configuration: Engineered specifically for vehicles utilizing an inside-the-frame style exhaust routing layout to ensure proper clearance profile.
- Installation: This is a permanent weld-on structural upgrade requiring professional MIG or TIG welding equipment. The red powder coat finish must be ground back cleanly to bare metal at all chassis contact zones prior to welding to ensure maximum penetration. Average shop installation time is approximately 2 to 3 hours.
Features
- Fits 1982-1992 third-generation GM F-Body platforms (Camaro & Firebird models)
- Dramatically stiffens the unibody structure to eliminate performance-robbing chassis deflection
- Advanced 3-point weld-on configuration ties front subframe directly into the rear lower control arm pockets
- Manufactured from heavy-duty, high-tensile structural rectangular steel tubing for premium strength
- Reinforced with robust 3/16-inch and 1/4-inch laser-cut, CNC-formed structural steel plate panels
- Fully MIG-welded construction ensures maximum joint integrity and long structural lifespan
- Forms a permanent, rigid addition to the frame that reduces interior squeaks, groans, and body rattles
- Streamlined, low-profile geometry maintains excellent ground clearance on lowered vehicles
- Rectangular tube footprint offers an ultra-secure, long jacking location to prevent pinch weld distortion
- Vibrant red powder coat finish provides premium undercar aesthetics and superior rust defense
- Optimized for high-stress street performance, hard drag strip launches, and road course handling
- Permanent weld-in layout requires roughly 2-3 hours of shop installation time
- Proudly designed and manufactured in the U.S.A.
Fitment
GM 3rd Gen F-Body Performance Chassis Platform (Inside Frame Exhaust Only):
- 1982 Chevrolet Camaro / Pontiac Firebird
- 1983 Chevrolet Camaro / Pontiac Firebird
- 1984 Chevrolet Camaro / Pontiac Firebird
- 1985 Chevrolet Camaro / Pontiac Firebird
- 1986 Chevrolet Camaro / Pontiac Firebird
- 1987 Chevrolet Camaro / Pontiac Firebird
- 1988 Chevrolet Camaro / Pontiac Firebird
- 1989 Chevrolet Camaro / Pontiac Firebird
- 1990 Chevrolet Camaro / Pontiac Firebird
- 1991 Chevrolet Camaro / Pontiac Firebird
- 1992 Chevrolet Camaro / Pontiac Firebird
