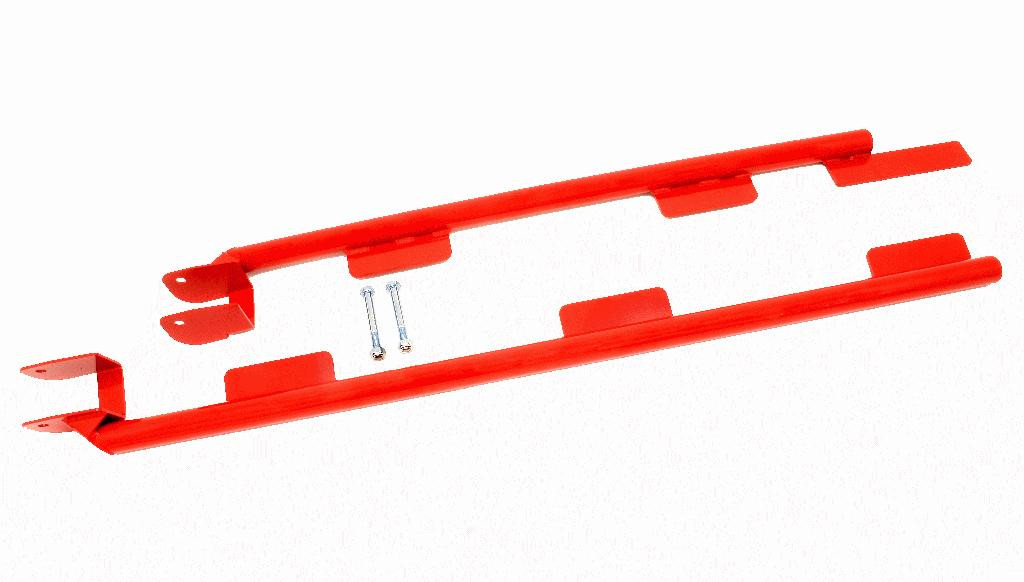

BMR Tubular Weld-On Subframe Connectors - Red Powder Coat (SFC002R) - 1993-2002 GM F-Body LT1 Convertible
Eliminate power-robbing chassis twist, banish annoying interior rattles, and unlock precise handling in your open-top fourth-generation muscle car with the Red Tubular Weld-On Subframe Connectors (SFC002R) from BMR Suspension. Because convertible models lack a rigid steel roof structure, the 1993-2002 Chevrolet Camaro and Pontiac Firebird convertible chassis suffer from severe unibody flexing and twisting under load. This structural deflection acts like an uncontrolled spring, which not only bleeds off valuable launch energy at the drag strip, creates vague steering feedback, shifts suspension geometry, and accelerates squeaks and rattles. In extreme cases, chronic convertible body flex can even damage body panels, cause doors to hang unevenly, or impact trunk alignment. BMR engineered these heavy-duty tubular subframe connectors specifically to bridge the structural divide, welding permanently to the underbody to create a rigid, continuous backbone.
Built to withstand intense street performance, hardcore drag racing, and demanding handling applications, the SFC002R subframe connectors are proudly manufactured in the USA from heavy-duty 1-5/8-inch structural roll cage steel tubing. The mounting brackets and reinforcement outriggers are precision laser-cut and CNC-formed from ultra-strong 3/16-inch and 1/4-inch structural steel plate to provide an absolute, flush interface with the original convertible floor pan layout. Featuring a robust two-point anchoring configuration, these connectors weld permanently to the front subframe rails and tie directly into the high-stress rear lower control arm mounts, anchoring the entire rear suspension footprint. The entire assembly is fully MIG-welded and finished in BMR's signature, high-gloss red powder coat to resist rust, scratches, track heat, and road grime. The tight, low-profile design tucks securely along the floor pan to maintain excellent ground clearance on lowered vehicles, while providing a secure, flat underbody jacking rail that safeguards your factory rocker panels and vulnerable pinch welds from jack damage.
IMPORTANT FITMENT & INSTALLATION NOTES:
- Vehicle Compatibility: Fits 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, and 2002 Chevrolet Camaro and Pontiac Firebird models. This kit is engineered specifically to clear the unique underbody bracing on convertible models and explicitly excludes hardtop, slick-top, and T-top coupe configurations.
- Exhaust Clearance: Optimized for early 4th Gen convertible floor pan lines and LT1 exhaust routing layouts to prevent any underbody component interference without modification.
- Installation: This is a permanent weld-on structural upgrade requiring professional MIG or TIG welding equipment. The red powder coat finish must be ground back cleanly to bare metal at all chassis contact zones prior to welding to ensure maximum weld penetration. Average shop installation time is approximately 2 to 3 hours.
Features
- Fits 1993-2002 Chevrolet Camaro and Pontiac Firebird convertible models (excludes hardtop/T-top coupes)
- Dramatically stiffens the convertible unibody structure to eliminate performance-robbing chassis deflection
- Two-point weld-on configuration ties the front subframe directly into the rear lower control arm mounts
- Manufactured from heavy-duty, high-tensile 1-5/8-inch structural roll cage steel tubing
- Reinforced with robust, premium 3/16-inch and 1/4-inch laser-cut, CNC-formed structural steel plates
- Fully MIG-welded construction guarantees excellent joint integrity and maximum service life
- Forms a permanent, rigid addition to the frame that minimizes interior squeaks, cowl shake, and body rattles
- Streamlined, tight-fitting design maintains excellent underbody ground clearance on lowered vehicles
- High-strength tubular footprint offers an ultra-secure, flat jacking rail to prevent rocker panel distortion
- Premium high-gloss red powder coat finish provides striking undercar aesthetics and robust corrosion protection
- Engineered explicitly for high-horsepower street performance, hardcore drag racing, and road course handling
- Permanent weld-in layout requires roughly 2-3 hours of shop installation time
- Proudly designed and manufactured in the U.S.A.
Fitment
GM 4th Gen F-Body Convertible Platform (Excludes Hardtop & T-Top Coupes):
- 1993 Chevrolet Camaro / Pontiac Firebird Convertible
- 1994 Chevrolet Camaro / Pontiac Firebird Convertible
- 1995 Chevrolet Camaro / Pontiac Firebird Convertible
- 1996 Chevrolet Camaro / Pontiac Firebird Convertible
- 1997 Chevrolet Camaro / Pontiac Firebird Convertible
- 1998 Chevrolet Camaro / Pontiac Firebird Convertible
- 1999 Chevrolet Camaro / Pontiac Firebird Convertible
- 2000 Chevrolet Camaro / Pontiac Firebird Convertible
- 2001 Chevrolet Camaro / Pontiac Firebird Convertible
- 2002 Chevrolet Camaro / Pontiac Firebird Convertible
