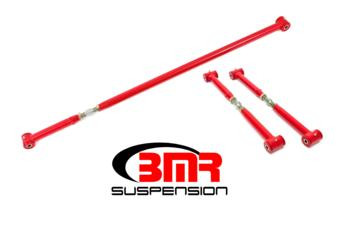

BMR Suspension Rear Suspension Upgrade Kit Red (RSK035R) - 1982-2002 GM F-Body
Launch harder, reduce performance-robbing wheel hop, and add unmatched cornering consistency to your Third or Fourth Generation GM F-Body with a Rear Suspension Upgrade Kit from BMR Suspension. Factory stamped-steel lower control arms and Panhard rods, paired with soft rubber bushings, deflect significantly under load. Instead of directing your engine's power straight to the tires, these stock components absorb energy, resulting in violent wheel hop, erratic cornering, and rear axle misalignment. This on-car adjustable polyurethane suspension package combines BMR's heavy-duty lower control arms (TCA002) and matching adjustable Panhard rod (PHR002) to deliver unyielding structural strength and precise rear geometry adjustment.
Every RSK035R kit is proudly designed and manufactured in the USA from heavy-duty DOM steel tubing. The on-car adjustable lower control arms are constructed from massive 1.625-inch (1-5/8") diameter, 0.120-inch wall tubing, providing maximum resistance to bending under hard launches. The matching on-car adjustable Panhard rod is built from heavy-duty 1.25-inch diameter, 0.120-inch wall DOM steel tubing. Both components feature integrated center-mounted adjusters with left and right-hand threads. This design allows you to easily adjust your wheelbase, correct the thrust angle, and center the rear axle with simple hand tools while the parts are still bolted onto the vehicle.
To deliver an incredibly responsive driving feel without sacrificing ride quality, both the control arms and the Panhard rod are equipped with greasable, 95-durometer polyurethane bushings. These high-performance bushings feature an internally fluted design that channels grease directly to the outer thrust surfaces, keeping them fully lubricated and ensuring quiet, reliable operation. This polyurethane formulation balances street-driving comfort and track performance, easily handling heavy drag racing launches and hard cornering while absorbing harsh road noise, vibration, and harshness (NVH). Completed with zinc-coated inner sleeves and a durable, brilliant red powder coat finish, this direct bolt-on upgrade is built to perform and last.
Features
- Complete on-car adjustable rear suspension kit featuring heavy-duty lower control arms and a Panhard rod
- Lower control arms constructed from ultra-strong 1.625-inch diameter, 0.120-inch wall steel tubing
- Panhard rod constructed from heavy-duty 1.25-inch diameter, 0.120-inch wall DOM steel tubing
- On-car adjustable design with left and right-hand threaded adjusters for fast, simple alignment changes
- Equipped with greasable, internally fluted 95-durometer polyurethane bushings that trap and distribute grease efficiently
- Zinc-coated inner sleeves ensure smooth, corrosion-free bushing articulation
- Dramatically reduces control arm flex and bushing deflection to eliminate wheel hop and maximize power transfer
- Finished in a tough, vibrant red powder coat for lasting durability and high-performance styling
- Provides a massive improvement in rear-axle stability with highly acceptable NVH levels
- Designed for street performance, drag racing, and road course applications
- Straightforward bolt-on installation taking approximately 3 to 4 hours
- Proudly designed and manufactured in the USA
Fitment
Chevrolet:
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
- 1993 Chevrolet Camaro
- 1994 Chevrolet Camaro
- 1995 Chevrolet Camaro
- 1996 Chevrolet Camaro
- 1997 Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Pontiac:
- 1982 Pontiac Firebird / Trans Am
- 1983 Pontiac Firebird / Trans Am
- 1984 Pontiac Firebird / Trans Am
- 1985 Pontiac Firebird / Trans Am
- 1986 Pontiac Firebird / Trans Am
- 1987 Pontiac Firebird / Trans Am
- 1988 Pontiac Firebird / Trans Am
- 1989 Pontiac Firebird / Trans Am
- 1990 Pontiac Firebird / Trans Am
- 1991 Pontiac Firebird / Trans Am
- 1992 Pontiac Firebird / Trans Am
- 1993 Pontiac Firebird / Trans Am
- 1994 Pontiac Firebird / Trans Am
- 1995 Pontiac Firebird / Trans Am
- 1996 Pontiac Firebird / Trans Am
- 1997 Pontiac Firebird / Trans Am
- 1998 Pontiac Firebird / Trans Am
- 1999 Pontiac Firebird / Trans Am
- 2000 Pontiac Firebird / Trans Am
- 2001 Pontiac Firebird / Trans Am
- 2002 Pontiac Firebird / Trans Am
Installation Recommendation: To complete your rear suspension upgrade, BMR highly recommends using the heavy-duty replacement hardware kit RH005 (sold separately) to replace the worn, thin factory mounting bolts.
