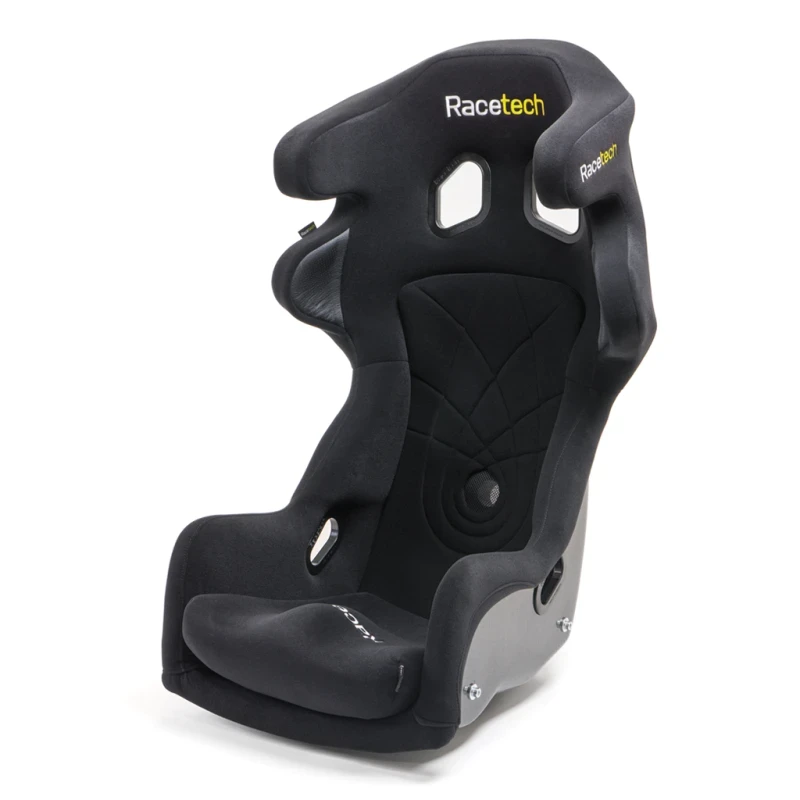

Racetech RT8119HR Ultra-Lightweight Drag Race Seat - Wide & Tall (RT8119WTHRL-011)
The Racetech RT8119HR represents the pinnacle of drag racing seat technology, combining advanced safety features with exceptional weight savings and race-proven comfort. Built upon the successful 119 Series architecture, the RT8119HR utilizes an ultra-lightweight premium carbon fiber shell and integrated head restraints to provide maximum driver protection without sacrificing performance. Designed specifically for high-horsepower drag racing applications, this seat delivers the support and confidence required for today's fastest race cars.
Engineered with the needs of competitive racers in mind, the RT8119HR features optimized shell geometry for a secure driver fit, energy-absorbing foam for enhanced head, shoulder, and rib protection, and compatibility with modern 7-point harness systems utilizing reverse submarine belts. The back-mount capable design improves chassis feedback and structural integrity while helping drivers stay connected to the vehicle. Whether you're competing in Pro Mod, Factory X, Factory Stock Showdown, or other heads-up racing classes, the RT8119HR offers the ideal combination of safety, comfort, and lightweight performance.
Features
- Ultra-lightweight premium carbon fiber shell construction
- Integrated head restraint design for enhanced safety
- Based on Racetech's proven 119 Series seat architecture
- Available in three sizes
- Starting weight of only 13.0 lbs
- Significant weight savings compared to traditional racing seats
- Ergonomic shell geometry for secure driver positioning
- Energy-absorbing foam enhances head, shoulder, and rib protection
- Pronounced thigh support for improved driver stability
- Molded base cushion for increased comfort
- Back-mount capable design for improved chassis feel
- Large harness guides
- Compatible with 7-point harness systems using reverse submarine belts
- Designed to align with current NHRA safety requirements
- Parallel sides and flush mounting bosses for simplified installation
Benefits
- Provides maximum driver protection in high-performance drag racing environments
- Reduces vehicle weight for improved performance potential
- Allows strategic weight redistribution throughout the chassis
- Enhances driver comfort during long race weekends
- Improves vehicle feedback and driver confidence
- Supports compliance with modern drag racing safety standards
Dimensions & Weight
| Dimension Reference | Measurement |
|---|---|
| A - External Width at Shoulders | 26.4" |
| B - Height from Base to Shoulder Wings | 25.2" |
| C - Internal Width at Hips | 16.1" |
| D - External Width Across Wings at Seat Front | 19.7" |
| E - Base Length | 18.5" |
| F - Maximum Height | 36.6" |
| G - Height from Base to Harness Guide | 26.8" |
| H - External Width at Head Restraint | 19.3" |
| I - Internal Width at Head Restraint | 14.2" |
| J - Height from Base to Head Restraint | 32.7" |
| K - Height from Base to Back Mounting Bosses | 24.4" |
| L - Maximum Length | 28.0" |
| M - Mounting Width (Side Mount) | 17.3" |

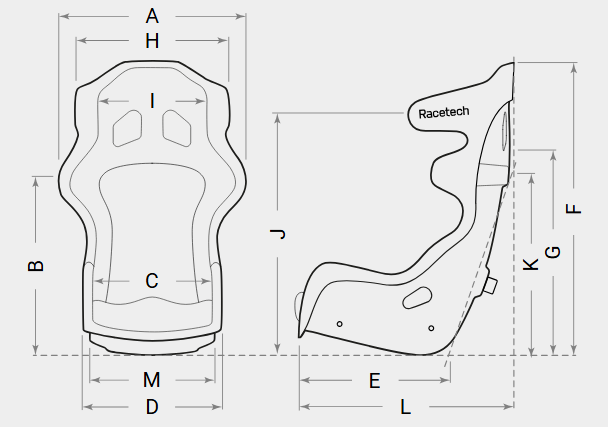

Dimensions correspond to the Racetech measurement diagram shown above.
Weight
- Shell Weight: 7.7 lbs
- Total Weight: 13.5 lbs
Ideal Applications
- Pro Mod Race Cars
- Pro Boost Race Cars
- Pro Nitrous Race Cars
- Pro Street Builds
- NHRA Factory X Cars
- Factory Stock Showdown Vehicles
- Sportsman Drag Racing Applications
- Professional Drag Racing Programs
Mounting Options
- Compatible with steel side mount brackets
- Compatible with aluminum side mount brackets
- Parallel sides simplify installation and fitment
- Flush mounting bosses provide seamless bracket integration
- Back-mount capable for increased structural support and chassis feedback
