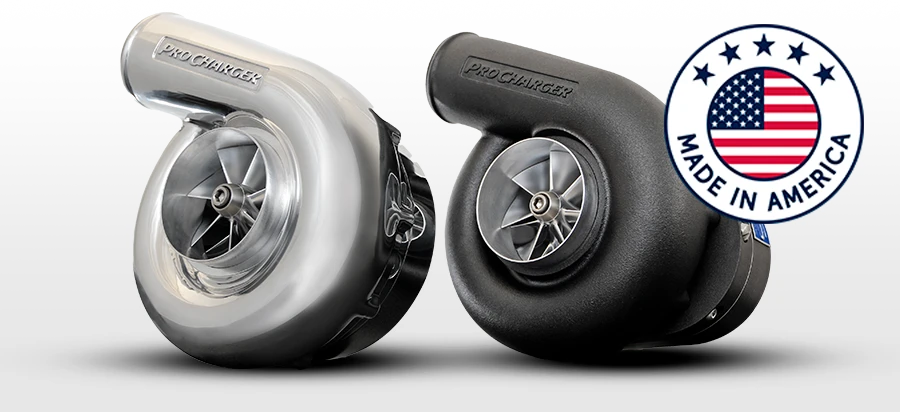

ProCharger F-1A-94 Self-Contained Centrifugal Supercharger Head Unit - 1,300 HP - 1,625 CFM - 38 PSI Max Boost - Polished Finish - PC336A-xxx-P
The ProCharger F-1A-94 Self-Contained Centrifugal Supercharger Head Unit is engineered for serious racers and high-horsepower enthusiasts who demand exceptional airflow, proven durability, and the convenience of ProCharger's self-contained lubrication system. Supporting up to 1,300 supercharged horsepower while delivering an impressive 1,625 CFM of airflow, the F-1A-94 is designed for naturally aspirated engine combinations producing approximately 300-550 horsepower.
Capable of producing up to 38 PSI of boost, the F-1A-94 supplies the airflow needed for demanding drag racing, standing mile, marine, street/strip, and custom performance applications. Its centrifugal compressor develops smooth, progressive boost as engine RPM increases, helping provide excellent throttle control while delivering tremendous top-end horsepower.
Built for Serious Four-Digit Horsepower
The F-1A-94 expands upon the proven F-Series platform with greater airflow and horsepower capability than the F-1A and F-1A-91. With a published 1,300 HP rating and 1,625 CFM airflow capacity, it provides additional performance headroom for builders pushing well beyond the 1,000-horsepower mark while retaining the compact packaging that has made the F-Series popular in competitive motorsports.
Its compact 9-inch volute, 4-inch inlet, 3.70-inch inducer, 5.56-inch exducer, and 3-inch outlet efficiently support substantial airflow demands while maintaining strong compressor efficiency throughout the operating range.
Self-Contained Oiling System
The F-1A-94 uses ProCharger's proven self-contained lubrication system, eliminating the need for engine oil feed and return lines. Its dedicated 4-ounce oil capacity simplifies installation, reduces plumbing complexity, and keeps routine maintenance fast and convenient.
With a 5.40:1 internal step-up ratio and a maximum impeller speed of 74,000 RPM, the F-1A-94 is designed to move massive volumes of air while maintaining the reliability ProCharger is known for in demanding racing environments.
Race-Proven Engineering
Every ProCharger F-1A-94 is manufactured using premium materials, precision machining, and race-proven engineering practices. The rugged gear case, premium bearings, precision-ground shafts, and high-efficiency compressor are built to withstand the demands of high-horsepower competition while delivering dependable performance season after season.
This listing is for the polished ProCharger F-1A-94 head unit. Mounting brackets, pulleys, belts, crank drive components, intercoolers, charge tubing, bypass valves, fuel system upgrades, tuning, and installation hardware are not included unless otherwise specified.
Features
- Supports engine combinations producing up to 1,300 supercharged horsepower
- Designed for approximately 300-550 naturally aspirated horsepower applications
- Maximum airflow of 1,625 CFM
- Produces up to 38 PSI of boost
- Self-contained oiling system
- Compact 9-inch volute design
- 5.40:1 internal step-up ratio
- Maximum impeller speed of 74,000 RPM
- Reverse rotation available
- Polished finish
Quick Specs
- Manufacturer: ProCharger
- Model: F-1A-94
- Part Number: PC336A-xxx-P
- Product Type: Self-Contained Centrifugal Supercharger Head Unit
- Finish: Polished
- Maximum Supercharged Horsepower: 1,300 HP
- Motor Base Horsepower Range: 300-550 HP
- Maximum Airflow: 1,625 CFM
- Maximum Boost: 38 PSI
- Volute Diameter: 9 in.
- Inlet Hose Diameter: 4.00 in.
- Inducer Diameter: 3.70 in.
- Exducer Diameter: 5.56 in.
- Outlet Hose Diameter: 3.00 in.
- Outlet Inside Diameter: 2.62 in.
- Maximum Impeller Speed: 74,000 RPM
- Internal Step-Up Ratio: 5.40:1
- Oil Capacity: 4 oz.
- Self-Contained Oiling: Yes
- Reverse Rotation: Yes
Frequently Asked Questions
Who is the ProCharger F-1A-94 designed for?
The F-1A-94 is ideal for builders working with naturally aspirated engines in the 300-550 horsepower range who need a self-contained centrifugal supercharger capable of supporting up to 1,300 horsepower in demanding street, drag racing, marine, and custom performance applications.
Does the F-1A-94 require engine oil lines?
No. The F-1A-94 features ProCharger's proven self-contained lubrication system with a dedicated 4-ounce oil supply, eliminating the need for engine oil feed and return lines while simplifying installation and maintenance.
