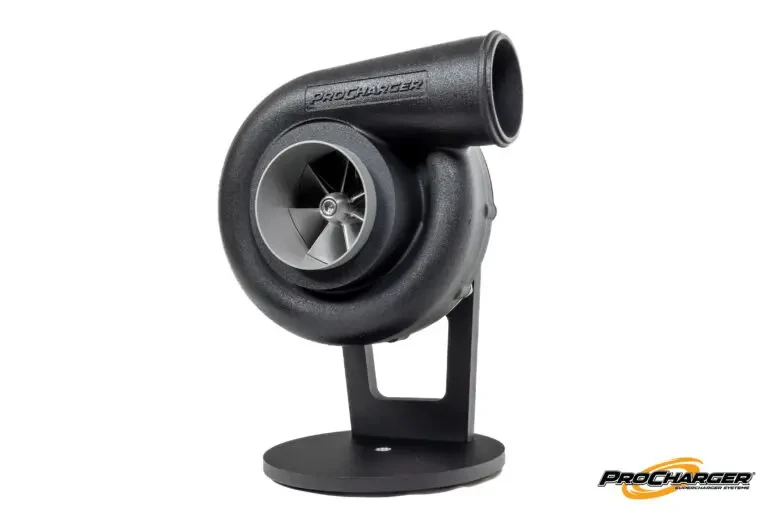

ProCharger F-1D Centrifugal Supercharger Head Unit - 1,050 HP - 1,500 CFM - 34 PSI Max Boost - Satin Finish - PC323A-xxx
The ProCharger F-1D Centrifugal Supercharger Head Unit is built for racers and serious horsepower enthusiasts who need the airflow and durability of ProCharger's renowned F-Series lineup. Supporting up to 1,050 supercharged horsepower while delivering 1,500 CFM of airflow, the F-1D is engineered for naturally aspirated engines producing approximately 300-500 horsepower that are destined for demanding competition and extreme performance applications.
Capable of generating up to 34 PSI of boost, the F-1D is designed for combinations that require exceptional airflow at higher engine speeds. Whether your project is a drag car, standing mile build, race vehicle, marine application, or custom high-horsepower project, the F-1D delivers the airflow capacity and proven ProCharger engineering needed to support aggressive performance goals.
Race-Bred F-Series Performance
The F-Series has become synonymous with high-horsepower centrifugal supercharging, and the F-1D continues that tradition by combining a compact 9-inch volute with impressive airflow capability. Its centrifugal compressor design produces smooth, progressive boost that builds with engine RPM, allowing the supercharger to deliver exceptional top-end power while maintaining predictable throttle response.
Designed for demanding performance environments, the F-1D provides the airflow needed for serious racing combinations while maintaining the precision engineering and reliability expected from every genuine ProCharger head unit.
Engine-Oiled for Competition Applications
The F-1D is an engine-oiled centrifugal supercharger, utilizing the engine's lubrication system instead of a self-contained oil reservoir. This design has long been trusted in high-performance and racing applications where continuous engine-fed lubrication is preferred.
Its 4.44:1 internal step-up ratio, maximum impeller speed of 65,000 RPM, and large compressor design allow the F-1D to efficiently support high horsepower levels while maintaining excellent durability under demanding operating conditions.
This listing is for the satin-finish ProCharger F-1D head unit. Mounting brackets, pulleys, belts, engine oil feed and drain hardware, intercoolers, charge tubing, bypass valves, fuel system upgrades, tuning, and installation hardware are not included unless otherwise specified.
Features
- Supports engine combinations producing up to 1,050 supercharged horsepower
- Designed for approximately 300-500 naturally aspirated horsepower applications
- Maximum airflow of 1,500 CFM
- Produces up to 34 PSI of boost
- Engine-oiled centrifugal supercharger design
- Large 9-inch volute for exceptional airflow
- Maximum impeller speed of 65,000 RPM
- 4.44:1 internal step-up ratio
- Reverse rotation available
- Satin finish
Quick Specs
- Manufacturer: ProCharger
- Model: F-1D
- Part Number: PC323A-xxx
- Product Type: Centrifugal Supercharger Head Unit
- Finish: Satin
- Maximum Supercharged Horsepower: 1,050 HP
- Motor Base Horsepower Range: 300-500 HP
- Maximum Airflow: 1,500 CFM
- Maximum Boost: 34 PSI
- Volute Diameter: 9 in.
- Inlet Hose Diameter: 4.00 in.
- Inducer Diameter: 3.75 in.
- Exducer Diameter: 5.96 in.
- Outlet Hose Diameter: 3.00 in.
- Outlet Inside Diameter: 2.62 in.
- Maximum Impeller Speed: 65,000 RPM
- Internal Step-Up Ratio: 4.44:1
- Self-Contained Oiling: No - Engine Oil Fed
- Reverse Rotation: Yes
Published performance figures are based on ProCharger specifications. Actual horsepower, airflow, and boost pressure will vary depending on engine combination, pulley ratio, intercooling, fuel system, tuning, and operating conditions.
Frequently Asked Questions
Who is the ProCharger F-1D designed for?
The F-1D is designed for high-performance street, racing, marine, and custom applications where engine combinations in the 300-500 horsepower range require the airflow to support up to 1,050 supercharged horsepower.
Does the F-1D use a self-contained oiling system?
No. The F-1D is an engine-oiled supercharger and is designed to utilize the engine's lubrication system. Proper oil feed and drain plumbing are required for installation.
