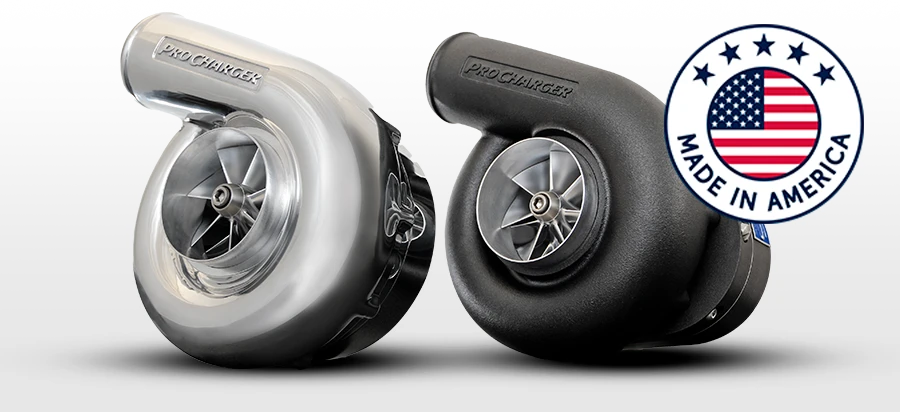

ProCharger A-1R Self-Contained Centrifugal Supercharger Head Unit - 150 HP - 450 CFM - 15 PSI Max Boost - Black Finish - PC065A-xxx-B
The ProCharger A-1R centrifugal supercharger head unit is a compact, self-contained supercharger engineered for lower-horsepower powersports and specialty performance applications. Designed for engines producing approximately 50-95 naturally aspirated horsepower, the A-1R is capable of supporting up to 150 supercharged horsepower while delivering up to 450 CFM of airflow.
Its compact 7-inch volute and 3-inch inlet make the A-1R an excellent solution where installation space is at a premium. The compressor is capable of producing up to 15 psi of boost and operates at a maximum impeller speed of 75,000 RPM. A 4.11:1 internal step-up ratio allows the impeller to achieve the speed needed to provide smooth, responsive centrifugal boost as engine RPM increases.
Featuring a self-contained oiling system, the A-1R eliminates the need for external engine oil feed and return lines. It is also reverse-rotation capable, giving fabricators and custom builders greater flexibility when designing supercharger mounting systems and drive configurations.
Built for Compact High-Performance Applications
The ProCharger A-1R is engineered for projects that require impressive airflow and boost capability in a compact package. Its 2.28-inch inducer, 3.2-inch exducer, and 2-inch outlet hose connection are designed to maximize airflow efficiency within space-conscious induction systems.
This listing is for the black-finish ProCharger A-1R head unit. Mounting brackets, pulleys, drive components, belts, intercooler components, tubing, bypass valves, tuning, and installation hardware are not included unless specifically noted elsewhere in this product listing.
Features
- Supports up to 150 supercharged horsepower
- Designed for approximately 50-95 naturally aspirated horsepower applications
- Maximum airflow rating of 450 CFM
- Capable of producing up to 15 PSI of boost
- Compact 7-inch volute diameter
- Self-contained oiling system
- Reverse rotation capable
- Maximum impeller speed of 75,000 RPM
- 4.11:1 internal step-up ratio
- Black finish
Quick Specs
- Manufacturer: ProCharger
- Model: A-1R
- Part Number: PC065A-xxx-B
- Product Type: Centrifugal Supercharger Head Unit
- Finish: Black
- Volute Diameter: 7 in.
- Maximum Supercharged Horsepower: 150 HP
- Recommended Engine Horsepower: 50-95 HP Naturally Aspirated
- Maximum Airflow: 450 CFM
- Maximum Boost: 15 PSI
- Inlet Hose Diameter: 3 in.
- Inducer Diameter: 2.28 in.
- Exducer Diameter: 3.20 in.
- Outlet Hose Diameter: 2 in.
- Outlet Inside Diameter: 1.75 in.
- Maximum Impeller Speed: 75,000 RPM
- Internal Step-Up Ratio: 4.11:1
- Reverse Rotation: Yes
- Self-Contained Oiling: Yes
- Oil Capacity: 2.5 oz.
Published performance figures are based on ProCharger specifications. Actual horsepower, airflow, and boost output will vary depending on engine combination, pulley ratio, supporting modifications, fuel system, calibration, and operating conditions.
Frequently Asked Questions
What engines is the ProCharger A-1R intended for?
The A-1R is engineered for compact applications producing approximately 50-95 naturally aspirated horsepower and can support up to 150 supercharged horsepower when matched with the proper combination of supporting components.
Does the A-1R need engine oil feed and return lines?
No. The A-1R features ProCharger's self-contained oiling system with a 2.5-ounce oil capacity, so there is no need to connect the supercharger to the engine's lubrication system.
