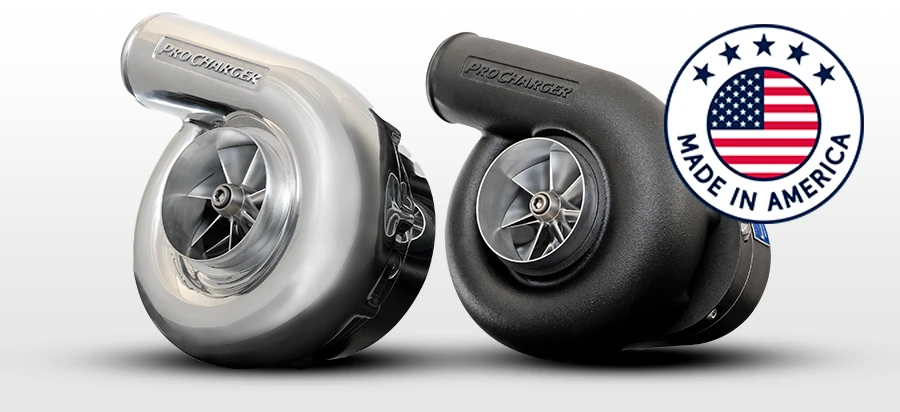

ProCharger P-1X Self-Contained Centrifugal Supercharger Head Unit - 950 HP - 1,275 CFM - 32 PSI Max Boost - Polished Finish - PC053A-xxx-P
The ProCharger P-1X Self-Contained Centrifugal Supercharger Head Unit advances the legendary P-series platform with ProCharger's innovative X Compressor Technology. Engineered for enthusiasts seeking increased airflow, greater horsepower potential, and outstanding street manners, the P-1X supports up to 950 supercharged horsepower while delivering an impressive 1,275 CFM of airflow.
Designed for naturally aspirated engine combinations producing approximately 300-500 horsepower, the P-1X delivers an exceptional balance of everyday drivability and serious performance capability. With the ability to produce up to 32 PSI of boost, it is well suited for high-performance street cars, street/strip combinations, autocross vehicles, drag cars, marine engines, and custom applications where efficient airflow and dependable power delivery are essential.
Powered by X Compressor Technology
The defining feature of the P-1X is ProCharger's X Compressor Technology. Developed to enhance compressor efficiency and airflow, this advanced design allows the P-1X to support greater horsepower while retaining the compact packaging and proven reliability that have made the P-series one of the industry's most respected centrifugal supercharger families.
Rather than relying solely on increased boost pressure, the P-1X is engineered to move air more efficiently throughout its operating range. This provides strong top-end performance while preserving the smooth, progressive boost curve that makes centrifugal superchargers exceptionally street friendly.
Engineered for Performance and Reliability
Every P-1X is constructed around a rugged 6061 billet aluminum gear case and uses a precision CNC-machined 7075 billet aluminum impeller, precision-ground shafts, premium high-speed bearings, and ProCharger's proven self-contained lubrication system. Because the head unit carries its own dedicated oil supply, installation is simplified by eliminating engine oil feed and return lines, while routine maintenance remains quick and convenient.
The P-1X combines advanced compressor technology with a compact 9-inch volute and proven 4.10:1 internal step-up ratio, providing dependable performance for enthusiasts who want substantial room to grow without stepping into one of ProCharger's larger race-focused head units.
This listing is for the polished ProCharger P-1X head unit. Mounting brackets, pulleys, belts, crank drive components, intercoolers, charge tubing, bypass valves, fuel system upgrades, tuning, and installation hardware are not included unless otherwise specified.
Features
- Supports engine combinations producing up to 950 supercharged horsepower
- Designed for 300-500 naturally aspirated horsepower applications
- Advanced ProCharger X Compressor Technology
- Maximum airflow of 1,275 CFM
- Produces up to 32 PSI of boost
- Self-contained oiling system eliminates engine oil feed and return lines
- 6061 billet aluminum gear case
- CNC-machined 7075 billet aluminum impeller
- Precision-ground shafts and premium high-speed bearings
- 4.10:1 internal step-up ratio
- Reverse rotation available
- Polished finish
Quick Specs
- Manufacturer: ProCharger
- Model: P-1X
- Part Number: PC053A-xxx-P
- Product Type: Self-Contained Centrifugal Supercharger Head Unit
- Compressor Technology: X Compressor Technology
- Finish: Polished
- Maximum Supercharged Horsepower: 950 HP
- Motor Base Horsepower Range: 300-500 HP
- Maximum Airflow: 1,275 CFM
- Maximum Boost: 32 PSI
- Volute Diameter: 9 in.
- Inlet Hose Diameter: 3.75 in.
- Inducer Diameter: 3.57 in.
- Exducer Diameter: 5.56 in.
- Outlet Hose Diameter: 3.00 in.
- Outlet Inside Diameter: 2.62 in.
- Maximum Impeller Speed: 65,000 RPM
- Internal Step-Up Ratio: 4.10:1
- Oil Capacity: 6 oz.
- Self-Contained Oiling: Yes
- Reverse Rotation: Yes
Frequently Asked Questions
What is X Compressor Technology?
X Compressor Technology is ProCharger's advanced compressor design developed to improve airflow efficiency and increase horsepower capability compared with earlier compressor designs. It allows the P-1X to deliver greater performance while maintaining the proven reliability and street manners of the P-series platform.
Who is the ProCharger P-1X designed for?
The P-1X is ideal for enthusiasts building naturally aspirated engines in the 300-500 horsepower range who want a self-contained centrifugal supercharger capable of supporting up to 950 horsepower with excellent drivability and room for future performance upgrades.
Why Buy from Beefcake Racing?
Choosing the right ProCharger head unit involves more than comparing horsepower ratings. The experienced team at Beefcake Racing can help you evaluate the P-series lineup, select the proper pulley combination, fuel system, intercooler, and supporting components, and build a complete package that meets your current performance goals while leaving room for future upgrades.
Need expert advice? Call 1-855-827-7223 or email sales@beefcakeracing.com. We're here to help you build it right the first time.
