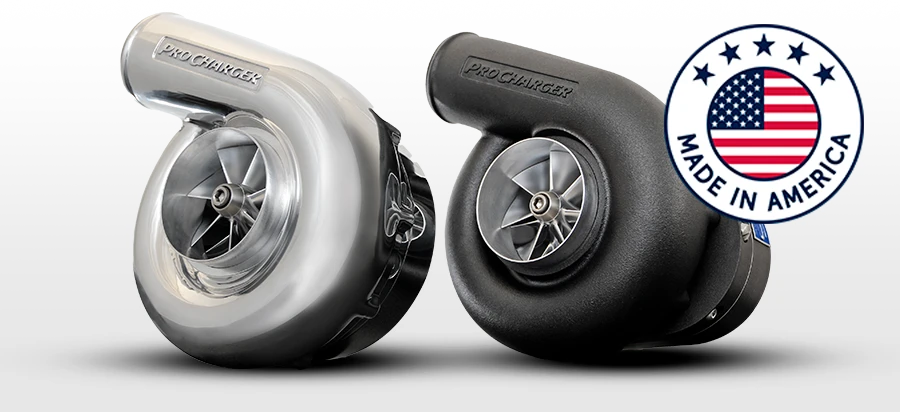

ProCharger P-1SC Self-Contained Centrifugal Supercharger Head Unit - 825 HP - 1,200 CFM - 32 PSI Max Boost - Black Finish - PC050A-xxx-B
The ProCharger P-1SC Self-Contained Centrifugal Supercharger Head Unit has established itself as one of the most proven and widely used centrifugal superchargers in the performance industry. Built for enthusiasts who want serious horsepower, dependable operation, and excellent street drivability, the P-1SC remains a benchmark for self-contained supercharger performance. Whether you're upgrading a modern muscle car, classic hot rod, truck, or custom performance vehicle, the P-1SC provides the airflow and efficiency needed to make substantial power without sacrificing everyday manners.
Supporting up to 825 supercharged horsepower while delivering an impressive 1,200 CFM of airflow, the P-1SC combines proven compressor efficiency with a compact, self-contained design that eliminates the need to tap into the engine's oiling system. The result is a cleaner installation, simplified maintenance, and the durability that has made the P-1SC one of ProCharger's most successful head units.
Why Enthusiasts Choose the P-1SC
Peak horsepower is only one part of the P-1SC's appeal. Its efficient centrifugal compressor produces a smooth, linear boost curve that rises with engine RPM, helping provide predictable throttle response, manageable traction, and excellent street manners. Unlike positive displacement superchargers that produce immediate peak boost, the P-1SC progressively builds power, making it a strong choice for spirited street driving and competitive motorsports.
The P-1SC is equally at home on weekend cruisers, street/strip combinations, autocross builds, road race cars, and drag racing applications. Its broad versatility has made it a popular option for enthusiasts who want a supercharger that can continue supporting their combination as future engine upgrades are added.
Engineered for Long-Term Reliability
Every P-1SC is constructed around a rugged 6061 billet aluminum gear case and features a precision CNC-machined 7075 billet aluminum impeller, precision-ground shafts, premium high-speed bearings, and ProCharger's proprietary self-contained synthetic lubrication system. Because the supercharger carries its own dedicated oil supply, installation is simpler than with traditional engine-oiled superchargers, while routine maintenance remains quick and straightforward.
The efficient radial compressor design is capable of producing up to 32 PSI of boost, allowing the P-1SC to support everything from mild street combinations to aggressive high-performance builds while maintaining strong efficiency throughout the RPM range.
This listing is for the black-finish ProCharger P-1SC head unit. Mounting brackets, pulleys, belts, crank-drive components, intercoolers, charge tubing, bypass valves, fuel-system upgrades, tuning, and installation hardware are not included unless specifically stated elsewhere in the listing.
Features
- Supports engine combinations producing up to 825 horsepower
- Maximum airflow of 1,200 CFM
- Produces up to 32 PSI of boost
- Legendary self-contained oiling system eliminates engine oil feed and return lines
- 6061 billet aluminum gear case for exceptional strength
- CNC-machined 7075 billet aluminum impeller
- Precision-ground shafts and premium high-speed bearings
- Smooth, linear boost delivery for excellent street manners
- Reverse rotation available
- Ideal for street, street/strip, drag racing, and custom performance applications
- Black finish
Quick Specs
- Manufacturer: ProCharger
- Model: P-1SC
- Part Number: PC050A-xxx-P-1SC-B
- Product Type: Self-Contained Centrifugal Supercharger Head Unit
- Finish: Black
- Maximum Horsepower: 825 HP
- Recommended Engine Horsepower: 200-450 HP Naturally Aspirated
- Maximum Airflow: 1,200 CFM
- Maximum Boost: 32 PSI
- Volute Diameter: 9 in.
- Inlet Hose Diameter: 3.75 in.
- Inducer Diameter: 3.37 in.
- Exducer Diameter: 5.25 in.
- Outlet Hose Diameter: 3.00 in.
- Outlet Inside Diameter: 2.62 in.
- Maximum Impeller Speed: 65,000 RPM
- Internal Step-Up Ratio: 4.10:1
- Oil Capacity: 6 oz.
- Self-Contained Oiling: Yes
- Reverse Rotation: Yes
Frequently Asked Questions
Why is the ProCharger P-1SC one of the most popular centrifugal superchargers available?
The P-1SC combines strong horsepower capability, smooth street manners, proven reliability, and ProCharger's self-contained oiling system in one versatile package. It remains a favorite among enthusiasts because it delivers excellent performance while staying straightforward to install, maintain, and drive regularly.
Should I choose the P-1SC or move up to a larger ProCharger head unit?
If your performance goals fall within the P-1SC's published capability, it remains one of the strongest all-around options available. Builders planning substantially higher horsepower combinations or future upgrades may benefit from moving to models such as the P-1SC-1 or D-series head units for additional airflow capacity.
