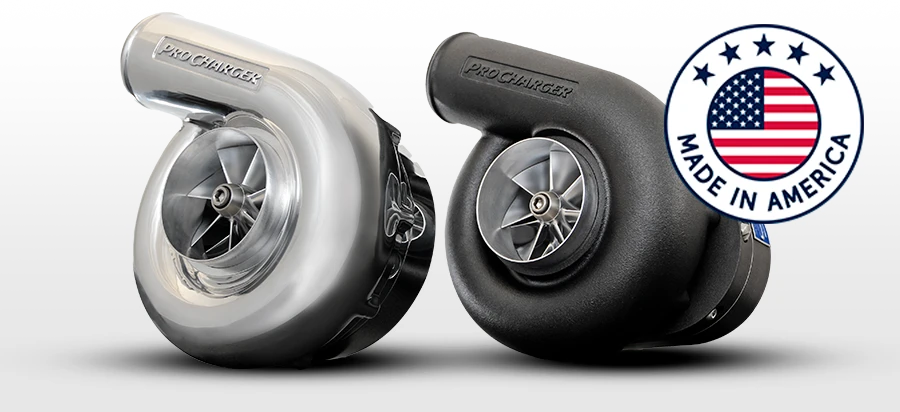

ProCharger P600B Self-Contained Centrifugal Supercharger Head Unit - 925 HP - 1,300 CFM - 38 PSI Max Boost - Black Finish - PC010A-xxx-B
The ProCharger P600B Self-Contained Centrifugal Supercharger Head Unit is built for enthusiasts who need serious airflow and horsepower capacity without giving up the convenience of self-contained lubrication. Supporting up to 925 supercharged horsepower while flowing an impressive 1,300 CFM, the P600B fills the gap between hard-hitting street combinations and dedicated racing applications.
With the capability to produce up to 38 PSI of boost, the P600B is a strong choice for aggressive street builds, drag racing, marine engines, powersports, and custom applications where high airflow and dependable performance are critical. Its larger compressor design provides the additional headroom required for high-horsepower engine combinations while maintaining the durability associated with ProCharger head units.
The P600B features ProCharger's self-contained oiling system, eliminating the need to connect the supercharger to the engine's lubrication system. This simplifies installation, keeps maintenance straightforward, and allows the head unit to operate independently of engine oil pressure and contamination.
Built for High-Airflow Performance
The P600B is engineered for builders whose horsepower goals have moved beyond the capabilities of smaller C-series head units while still benefiting from ProCharger's self-contained architecture. Its large compressor wheel, optimized inlet and outlet dimensions, and high-flow compressor housing allow the P600B to efficiently support engine combinations producing up to 925 supercharged horsepower across a broad operating range.
Combining substantial airflow, serious boost capability, and proven ProCharger engineering, the P600B provides performance enthusiasts with room to grow without immediately moving into one of ProCharger's largest race-focused supercharger offerings.
This listing is for the black-finish ProCharger P600B head unit. Mounting brackets, drive pulleys, belts, intercoolers, tubing, bypass valves, fuel system upgrades, tuning, and installation hardware are not included unless otherwise specified.
Features
- Supports up to 925 supercharged horsepower
- Designed for approximately 300-700 naturally aspirated horsepower applications
- Maximum airflow of 1,300 CFM
- Produces up to 38 PSI of boost
- Self-contained oiling system
- Large compressor designed for high-horsepower applications
- Reverse rotation available
- High-flow compressor design for exceptional efficiency
- Ideal for serious street, strip, marine, and custom builds
- Black finish
Quick Specs
- Manufacturer: ProCharger
- Model: P600B
- Part Number: PC010A-xxx-P600B-B
- Product Type: Self-Contained Centrifugal Supercharger Head Unit
- Finish: Black
- Maximum Horsepower: 925 HP
- Recommended Engine Horsepower: 300-700 HP Naturally Aspirated
- Maximum Airflow: 1,300 CFM
- Maximum Boost: 38 PSI
- Volute Diameter: 8.75 in.
- Inlet Hose Diameter: 4.00 in.
- Inducer Diameter: 3.90 in.
- Exducer Diameter: 5.15 in.
- Outlet Hose Diameter: 3.00 in.
- Outlet Inside Diameter: 2.75 in.
- Maximum Impeller Speed: 72,000 RPM
- Internal Step-Up Ratio: 4.10:1
- Oil Capacity: 4.0 oz.
- Self-Contained Oiling: Yes
- Reverse Rotation: Yes
Frequently Asked Questions
Who is the ProCharger P600B designed for?
The P600B is an excellent option for builders targeting up to 925 supercharged horsepower who require substantially more airflow than smaller ProCharger head units can provide while retaining the convenience of a self-contained supercharger. It is well suited for high-performance street, drag racing, marine, powersports, and custom applications.
Does the P600B require an engine oil feed?
No. The P600B uses ProCharger's self-contained oiling system, allowing the head unit to operate independently of the engine's lubrication system. This simplifies installation and routine maintenance while helping isolate the supercharger from engine oil contamination.
