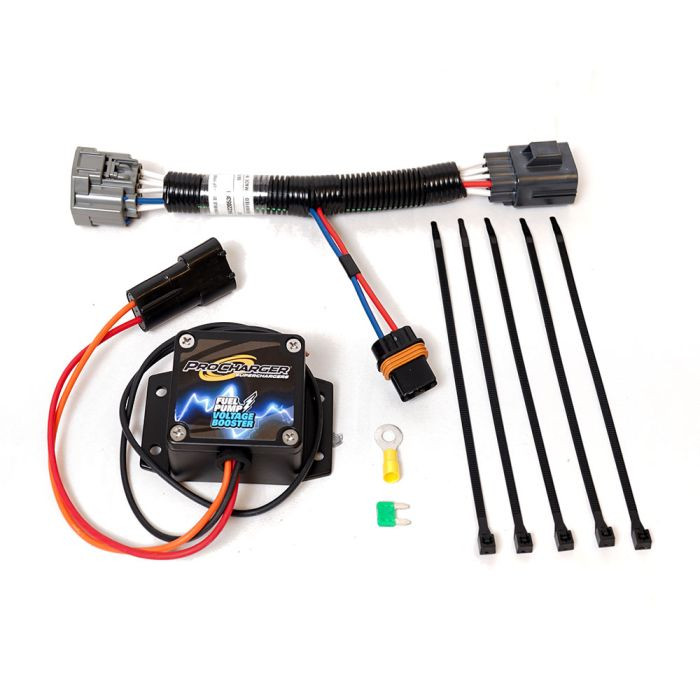

ProCharger Fuel Pump Voltage Booster Kit - 2015-2026 Ford Mustang - 3FWFR-001
The ProCharger 3FWFR-001 Fuel Pump Voltage Booster Kit is engineered specifically for 2015-2026 Ford Mustang applications to maximize the performance of the factory fuel pump when additional fuel volume is required. Designed as a compact, high-efficiency solution, this genuine ProCharger voltage booster increases fuel pump voltage under load, helping support the increased fuel demands of supercharged and other high-performance combinations without immediately requiring a complete fuel system upgrade.
When activated, the ProCharger Voltage Booster rapidly increases fuel pump output voltage to 18.0 volts, allowing the factory pump to deliver increased fuel flow during high-load conditions. When additional fuel is not needed, the unit simply passes the factory voltage directly through to the fuel pump, allowing normal operation during everyday driving.
Manufactured in the USA, this lightweight, compact module is capable of supplying up to 40 amps of current to a single fuel pump and can be triggered by a voltage source as low as 5.0 volts. The 3FWFR-001 is a proven solution for many ProCharger-equipped Mustangs looking to safely increase fuel system capacity while retaining the factory fuel pump. :contentReference[oaicite:0]{index=0}
Features
- Genuine ProCharger Fuel Pump Voltage Booster Kit
- Designed specifically for 2015-2026 Ford Mustang applications
- Increases fuel pump voltage to 18.0V when activated
- Passes factory voltage during normal driving conditions
- Capable of supplying up to 40 amps to a single fuel pump
- Can be triggered by an input voltage as low as 5.0V
- Compact, lightweight design
- Made in the USA
- Excellent upgrade for ProCharger-equipped Mustangs requiring additional fuel pump capacity
Quick Specs
- Manufacturer: ProCharger
- Product Type: Fuel Pump Voltage Booster Kit
- Vehicle Fitment: 2015-2026 Ford Mustang
- Maximum Output Voltage: 18.0 Volts
- Maximum Output Current: 40 Amps
- Minimum Trigger Voltage: 5.0 Volts
- Country of Origin: Made in the USA
- Manufacturer Part Number: 3FWFR-001
Increase Fuel Capacity Without Replacing the Pump
As horsepower increases, so does fuel demand. The ProCharger Fuel Pump Voltage Booster helps maximize the capability of the factory fuel pump by increasing operating voltage only when additional fuel delivery is required. This allows many performance builds to safely support higher power levels while maintaining factory drivability during normal operation.
Whether you're installing a ProCharger supercharger system or upgrading an existing forced induction combination, the 3FWFR-001 provides a clean, proven solution for increasing available fuel pump performance.
Frequently Asked Questions
How does the ProCharger Fuel Pump Voltage Booster work?
Under normal driving conditions, the unit passes the factory fuel pump voltage through unchanged. When activated, it increases output voltage to 18.0 volts, allowing the fuel pump to provide increased fuel flow during high-load conditions.
Is this designed specifically for the 2015-2026 Mustang?
Yes. The 3FWFR-001 is engineered specifically for 2015-2026 Ford Mustang applications. ProCharger also offers different voltage booster kits for other vehicle platforms.
