ProCharger Black Crank Support for Coyote Truck w/ Innovators West Balancer (2011-2020 F-150) 3FRDR-015B
Maximum Crankshaft Support for High Boost Coyote Builds

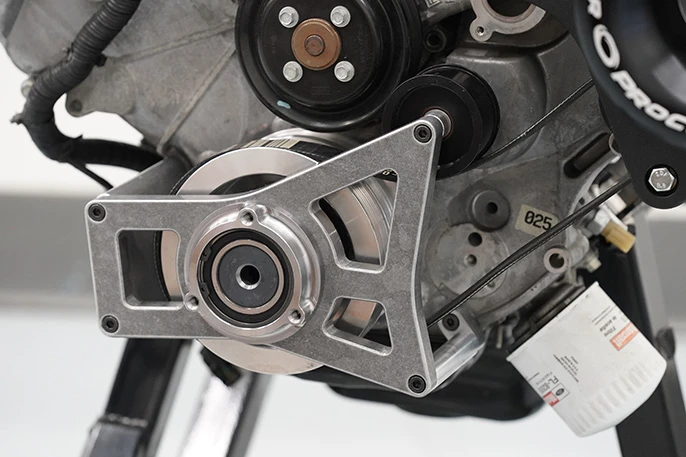

The ProCharger Black Crank Support System is engineered to reinforce the front of the crankshaft on 2011-2020 Ford F-150 5.0L Coyote engines, helping prevent failure under extreme boost and high RPM conditions.
As horsepower increases, so does the stress placed on the crank snout. This system provides critical reinforcement to stabilize the crankshaft in both supercharged and turbocharged applications.
Cheap Insurance for Serious Performance
While not mandatory, this upgrade is widely considered essential insurance for high horsepower Coyote builds, similar to upgrading oil pump gears when pushing performance limits.
- Reduces stress on crankshaft under boost
- Helps prevent crank snout failure
- Ideal for high RPM and high horsepower builds
- Works with supercharger and turbo setups
Precision Engineered for Strength and Stability
Built with performance in mind, this crank support system uses precision components to ensure a secure and reliable installation.
- Doweled bracket system for accurate alignment
- Bolt locator design ensures secure mounting
- Eliminates crankshaft movement under load
- Improves durability in extreme performance conditions
Installation and Compatibility Requirements
Installation is straightforward, but requires proper supporting components to ensure compatibility.
- Designed for use with Innovators West balancer
- Compatible with ATI damper setups
- Requires 8-rib or 10-rib Stage II drive system
- Clears all factory accessories
- Does not clear factory sway bar
- Ideal for drag setups running skinny front tires
Built for ProCharger Stage Systems
This crank support is designed to integrate seamlessly with ProCharger dedicated drive systems on Coyote-powered trucks.
- Compatible with Stage II drive systems
- Optimized for high horsepower ProCharger builds
- Works with supercharged and turbocharged applications
Performance Highlights
- Reinforces crankshaft under extreme load
- Reduces risk of crank snout failure
- Compatible with high boost applications
- Precision doweled mounting system
- Durable black finish for corrosion resistance
Features
- Crank support system for Coyote truck engines
- Black finish
- Doweled bracket and bolt locator system
- Designed for high boost and high RPM applications
- Compatible with Innovators West or ATI balancers
- Requires 8-rib or 10-rib Stage II drive system
- Clears factory accessories
- Part Number: 3FRDR-015B
Quick Specs
- Manufacturer: ProCharger
- Product Type: Crankshaft Support System
- Engine: Ford 5.0L Coyote V8
- Finish: Black
- Balancer Compatibility: Innovators West or ATI
- Drive System Requirement: 8-rib or 10-rib Stage II
- Fitment: 2011-2020 Ford F-150 5.0L
- Part Number: 3FRDR-015B
FAQs
Is this crank support necessary for my build?
Its not required, but it is highly recommended as preventative protection for high horsepower and high boost Coyote builds.
Will this work with stock accessories?
Yes, this system clears all factory accessories, but it does not clear the stock sway bar.
Fitment
- 2011 Ford F-150 5.0L
- 2012 Ford F-150 5.0L
- 2013 Ford F-150 5.0L
- 2014 Ford F-150 5.0L
- 2015 Ford F-150 5.0L
- 2016 Ford F-150 5.0L
- 2017 Ford F-150 5.0L
- 2018 Ford F-150 5.0L
- 2019 Ford F-150 5.0L
- 2020 Ford F-150 5.0L
