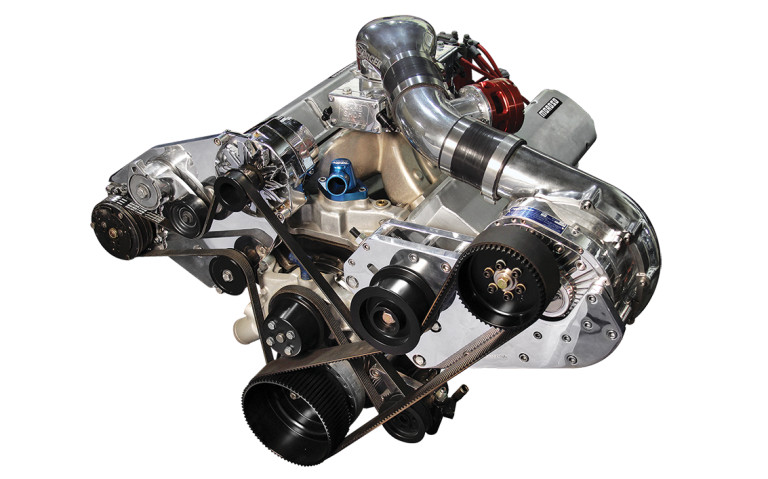

ProCharger Cog Drive Race Supercharger Kit w/ F-1R-103 (Small Block Chevy) 1CA200-103
Cog-Driven Boost Built for Serious SBC Race Power
If you're building a high-horsepower Small Block Chevy and demand uncompromising performance, the ProCharger Cog Drive Race Supercharger Kit with F-1R-103 head unit delivers the durability and airflow needed to support 1000-1450 horsepower builds. Designed for aggressive street and race applications, this system combines ProChargers proven centrifugal technology with a rugged cog belt drive system for consistent, slip-free power delivery.
Unlike traditional belt-driven systems, the 50 mm-wide cog drive belt ensures maximum grip under extreme load, making it the ideal solution for high-boost applications where reliability is critical. Whether you're pushing your build on the street or at the track, this system is engineered to handle serious power while still allowing integration of key accessories like power steering and air conditioning in supported configurations.
F-1R-103 Head Unit - Built for 4-Digit Horsepower
At the core of this system is the F-1R-103 centrifugal supercharger, designed to deliver massive airflow and scalable boost for extreme horsepower goals. Combined with ProChargers self-contained oiling system, this setup eliminates the need for external oil lines while improving installation flexibility and long-term reliability.
This race-oriented kit also offers flexibility with intercooler configurations and upgrade paths, allowing you to tailor the system to your specific power goals and build requirements.
Flexible Installation for Custom Builds
Engineered as a universal performance system, this kit includes a tubing package that allows for custom routing and fabrication. It is compatible with both serpentine and V-belt accessory drives, giving builders the freedom to configure their engine bay based on performance needs and available components.
Because of its race-focused nature, this system requires supporting components such as a proper fuel system, carburetor or throttle body, and accessory setup. This flexibility makes it an excellent foundation for highly customized, high-output builds.
Performance Highlights
- Supports 1000-1450 horsepower applications
- Heavy-duty 50 mm-wide cog drive belt eliminates slip under high boost
- F-1R-103 head unit engineered for extreme airflow and race performance
- Self-contained oiling system - no external oil lines required
- Compatible with serpentine and V-belt accessory configurations
- Allows retention of power steering and A/C in supported setups
- Multiple upgrade options available for intercooling, fuel system, and more
Available Options
- Satin, Black, or Polished finish on supercharger, brackets, and carb bonnet (if applicable)
- Supercharger upgrades up to F-3
- Intercooler upgrades
- Bypass valve upgrades
- Fuel system upgrades
- Repositioning bracket for alternate mounting
Quick Specs
- Part Number: 1CA200-103
- Head Unit: F-1R-103
- Horsepower Capability: 1000-1450 HP
- Drive System: Cog belt drive - 50 mm width
- Oiling: Self-contained supercharger oiling system
- Application: Small Block Chevy
- Intercooler: Multiple options available
- Tubing: Universal tubing kit included (not vehicle-specific)
- Induction Requirement: 4150-style blow-through carburetor or EFI throttle body required (sold separately)
- Fuel System: Upgrade required (sold separately)
- Power Steering: Requires GM Type II pump with remote reservoir
- A/C Compatibility: Available with serpentine accessory drive only - requires Sanden 508/SD5H14 compressor
- Water Pump:
- V-belt: Electric water pump recommended
- Serpentine: Mechanical short-style pump required
- Serpentine Drive Requirements:
- Standard rotation water pump
- SBC: 1984-1991 Corvette reverse rotation
- BBC: Edelbrock #8854 or equivalent
- Alternator Compatibility: Designed for Delco-style alternator with 6.61 inch center-to-center mounting
Why Choose This ProCharger Cog Race Kit?
For builders chasing four-digit horsepower from a Small Block Chevy, this system delivers the strength, airflow, and flexibility required to get there. The cog-driven design ensures consistent boost at high RPM, while the F-1R-103 head unit provides the airflow needed for serious race applications. Combined with ProChargers reputation for reliability and scalability, this kit is built for those who refuse to compromise on performance.
FAQs
Is this a complete bolt-on kit?
No. This is a race-oriented system that requires additional components such as a fuel system, carburetor or throttle body, and custom installation work.
Can I upgrade the supercharger head unit later?
Yes. This system supports upgrades up to the F-3 head unit, allowing you to scale power as your build evolves.
