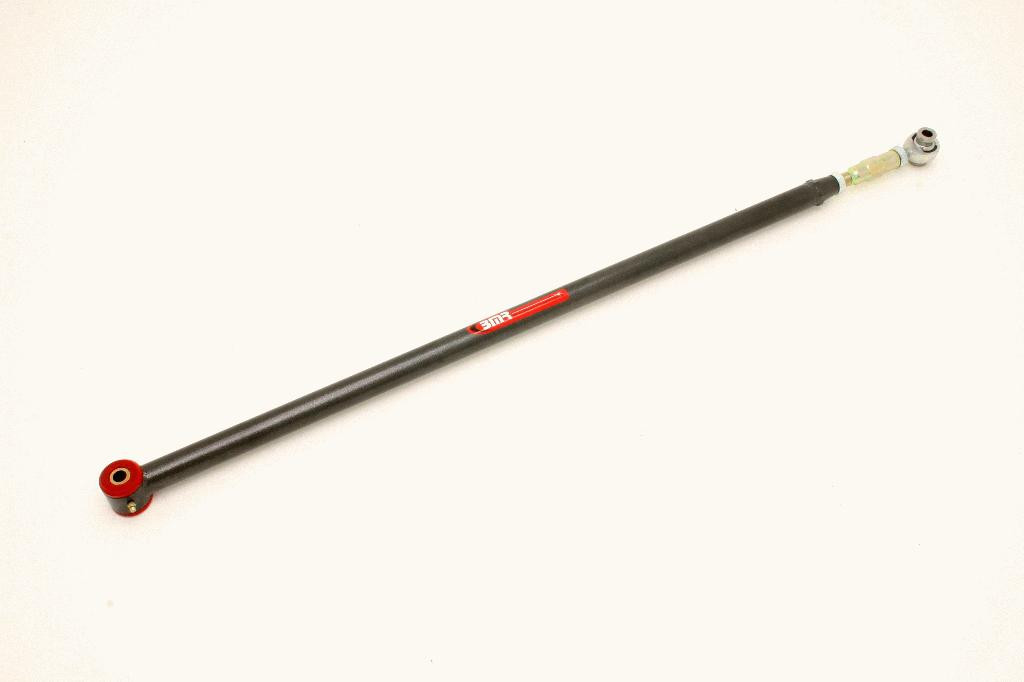

BMR Suspension On-Car Adjustable Poly/Rod End Panhard Rod (PHR010H) - 1982-2002 F-Body
Lock in your rear axle alignment and achieve superior cornering predictability in your 1982-2002 GM F-Body (Camaro & Firebird) with a Black Hammertone On-Car Adjustable Panhard Rod (PHR010H) from BMR Suspension. The OEM stamped-steel Panhard bar is flexible and relies on soft rubber bushings that deflect severely under cornering, drag launches, and hard acceleration. This lateral movement forces the rear axle to shift side-to-side, which ruins your suspension geometry, limits tire clearance, and causes unpredictable handling. BMR’s PHR010H replaces this flexible factory link with an ultra-rigid DOM steel assembly designed to keep your axle perfectly centered.
Constructed from heavy-duty 1.25-inch, 0.120-inch wall DOM steel tubing with TIG-welded chrome-moly tube adapters, this Panhard rod is built to handle the highest levels of street and track abuse. The PHR010H represents the perfect compromise between race-level performance and street-driven comfort. One end features a high-grade, greasable 95-durometer polyurethane bushing, which uses BMR's signature internally fluted design to distribute grease evenly, ensuring quiet, squeak-free, and reliable operation. The opposite end is equipped with a premium, zinc-plated, heat-treated chrome-moly Teflon-lined rod end accompanied by custom-designed 304 stainless steel spacers. Adjustability is effortless thanks to BMR's CNC-machined 4130 chrome-moly center adjuster with rolled threads, allowing you to quickly recenter your rear axle on the car without removing the bar. Finished in a highly durable, textured black hammertone powdercoat, this 100% bolt-on upgrade is perfect for high-horsepower street, drag, and road course applications. Proudly designed and manufactured in the USA!
Features
- Direct-fit, 100% bolt-on lateral axle support for 1982-2002 Camaro and Firebird
- On-car adjustable design allows for fast, precise rear axle centering without removing the rod
- Constructed from heavy-duty 1.25-inch, 0.120-inch wall DOM steel tubing with TIG-welded chrome-moly adapters
- CNC-machined 4130 chrome-moly center adjuster with high-strength rolled threads
- Equipped with one zinc-plated, heat-treated, X-series chrome-moly Teflon-lined rod end with 304 stainless steel spacers
- Equipped with one greasable, internally-fluted 95-durometer polyurethane bushing to minimize NVH and keep thrust surfaces lubricated
- Eliminates lateral axle movement and stamped-steel deflection under heavy loads
- Ideal blend of track performance and street comfort (low NVH)
- Finished in a long-lasting, textured black hammertone powdercoat for superior corrosion and scratch resistance
- Simple 1-hour bolt-on installation time
- Proudly designed and manufactured in the U.S.A.
Fitment & Compatibility Notes
GM F-Body (Individual Fitment Years):
- 1982 Chevrolet Camaro / Pontiac Firebird
- 1983 Chevrolet Camaro / Pontiac Firebird
- 1984 Chevrolet Camaro / Pontiac Firebird
- 1985 Chevrolet Camaro / Pontiac Firebird
- 1986 Chevrolet Camaro / Pontiac Firebird
- 1987 Chevrolet Camaro / Pontiac Firebird
- 1988 Chevrolet Camaro / Pontiac Firebird
- 1989 Chevrolet Camaro / Pontiac Firebird
- 1990 Chevrolet Camaro / Pontiac Firebird
- 1991 Chevrolet Camaro / Pontiac Firebird
- 1992 Chevrolet Camaro / Pontiac Firebird
- 1993 Chevrolet Camaro / Pontiac Firebird
- 1994 Chevrolet Camaro / Pontiac Firebird
- 1995 Chevrolet Camaro / Pontiac Firebird
- 1996 Chevrolet Camaro / Pontiac Firebird
- 1997 Chevrolet Camaro / Pontiac Firebird
- 1998 Chevrolet Camaro / Pontiac Firebird
- 1999 Chevrolet Camaro / Pontiac Firebird
- 2000 Chevrolet Camaro / Pontiac Firebird
- 2001 Chevrolet Camaro / Pontiac Firebird
- 2002 Chevrolet Camaro / Pontiac Firebird
BMR GM F-Body Panhard Rod Guide:
- PHR001 / MPHR001: Non-adjustable with dual polyurethane bushings (Budget-friendly alternative)
- PHR002 / MPHR002: On-car adjustable with dual polyurethane bushings (Most popular for daily driving)
- PHR003 / MPHR003: Double adjustable with dual rod ends (Maximum race performance)
- PHR010 (This Product): On-car adjustable with one polyurethane bushing and one rod end (The perfect compromise of track performance and low NVH)
