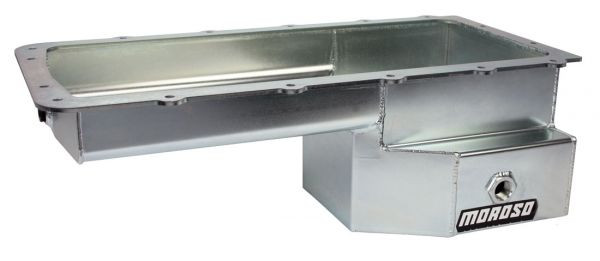

Steel, Wet Sump, 6-5/8" Deep
Engine Application: Ford 5.0 Modular "Coyote" Engines
Fits: Mustang, 1994-Up & other Ford Rear Sump applications with Ford "Coyote" Engines, check measurements
- Pan has a thick steel or billet aluminum rail with a 2-3/8" deep front section and a 6-5/8" deep by 9" long rear sump
- Designed to be used with the 5.0 "Coyote" factory windage tray, oil pump pickup and dipstick
- Features a race-proven, four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
- 9 Quart Capacity
- 1/2" NPT fitting for supercharger drain back
- 1/2" NPT fitting for oil temperature sender
- 20mm fitting for the factory oil level sensor*
- On Gen 1 & 2 Coyote//Voodoo engines use factory oil pump pickup and on Gen 3 Coyote/Voodoo engines use Part No. 24578
*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
