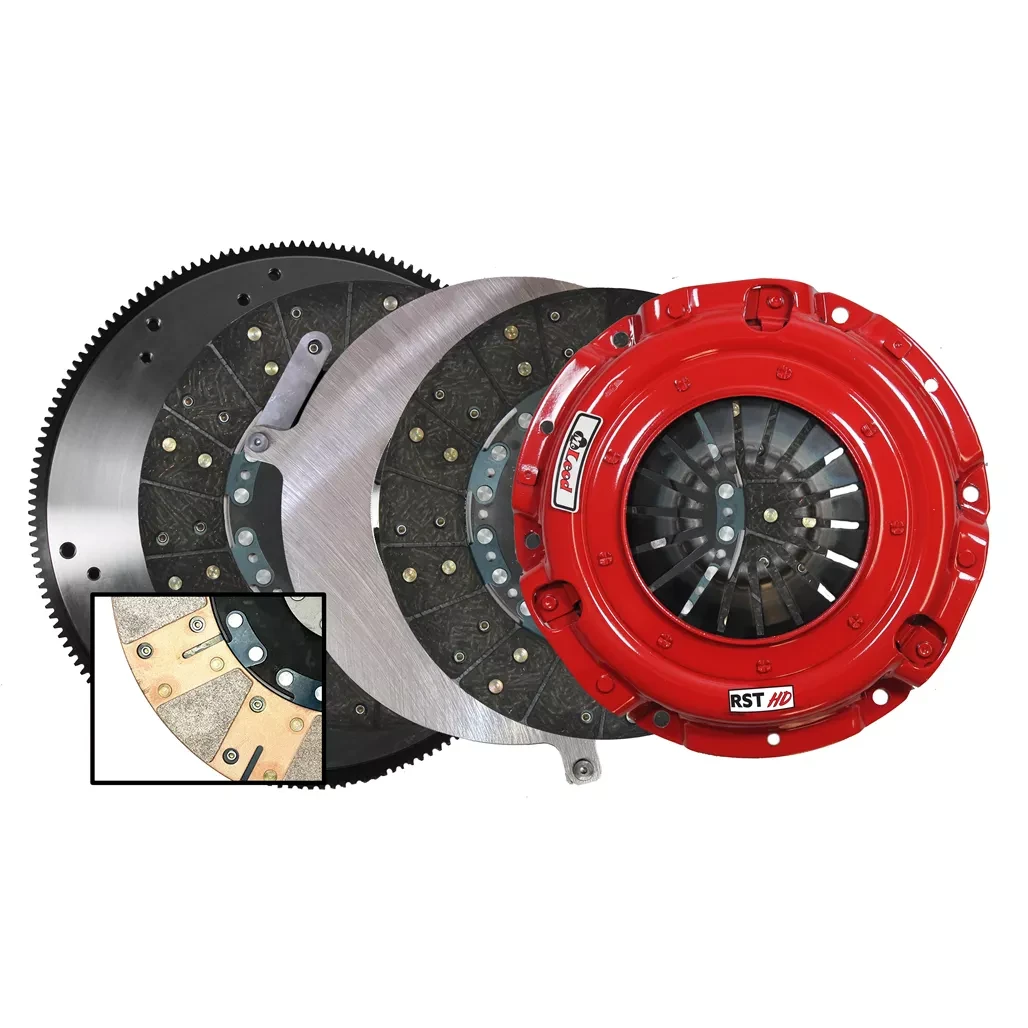

McLeod RST HD Twin Disc Clutch Kit (6913-07CMD) - Ford Small Diameter Flywheel Applications
Engineered for high-horsepower Ford performance builds equipped with an aftermarket transmission, the McLeod RST HD Twin Disc Clutch Kit delivers exceptional torque capacity while maintaining smooth engagement and excellent street manners. Bridging the gap between McLeod's proven RST and RXT clutch systems, the RST HD is rated to support up to 950 horsepower, making it an outstanding choice for aggressive street driving, drag racing, and road course competition.
The RST HD features McLeod's advanced hybrid twin-disc design, pairing smooth-engaging organic friction material on one side of each disc with high-bite segmented ceramic material on the other. This innovative friction combination provides exceptional holding power while minimizing drivetrain shock and maintaining light pedal effort. Designed for use with small diameter flywheels, cable linkage clutch systems, and aftermarket transmissions, this clutch kit delivers the durability and consistency required for serious performance applications.
Features
- Designed for Ford small diameter flywheel applications
- Compatible with cable linkage clutch systems and aftermarket transmissions
- Rated to support up to 950 horsepower
- Twin-disc clutch design for exceptional torque capacity and heat management
- Hybrid organic and segmented ceramic friction discs
- Smooth engagement with excellent street drivability
- Ideal for high-performance street and track applications
- Diaphragm-style pressure plate provides light pedal effort
- Compatible with small diameter flywheels
- Designed for 1-1/8-inch, 26-spline transmission input shafts
- Includes throwout bearing, installation hardware, and alignment tool
Specifications
- Part Number: 6913-07CMD
- Horsepower Rating: 950 HP
- Clutch Disc Quantity: 2
- Disc Diameter: 9.688 inches
- Input Shaft Diameter: 1.125 inches
- Input Spline Quantity: 26
- Disc Material: Organic / Ceramic
- Disc Style: Full Face / Segmented
- Hub Style: Solid
- Pressure Plate Style: Diaphragm
- Clutch Usage: Performance
- Flywheel Included: No
- Hardware Included: Yes
- Alignment Tool Included: Yes
- Throwout Bearing Included: Yes
- Pilot Bushing Included: No
- Clutch Patterns: 10.5-inch Mustang Diaphragm, 10.5-inch Borg & Beck, 10/10.5-inch Long Pattern
- Flywheel Fitment: Small Diameter Flywheel
- Quantity: Sold as a Kit
Fitment
- Ford applications utilizing a small diameter flywheel
- Cable linkage clutch systems
- Aftermarket transmission applications
- Compatible with 1-1/8-inch, 26-spline transmission input shafts
Additional Notes
- Designed for use with small diameter flywheels.
- Requires a cable linkage clutch system and aftermarket transmission.
- Compatible with 10.5-inch Mustang Diaphragm, 10.5-inch Borg & Beck, and 10/10.5-inch Long Pattern clutch patterns.
- Flywheel and pilot bushing are not included and must be purchased separately.
- Includes throwout bearing, installation hardware, and alignment tool.
- Ideal for high-horsepower street and track builds requiring exceptional torque capacity, smooth engagement, and long-lasting durability.
