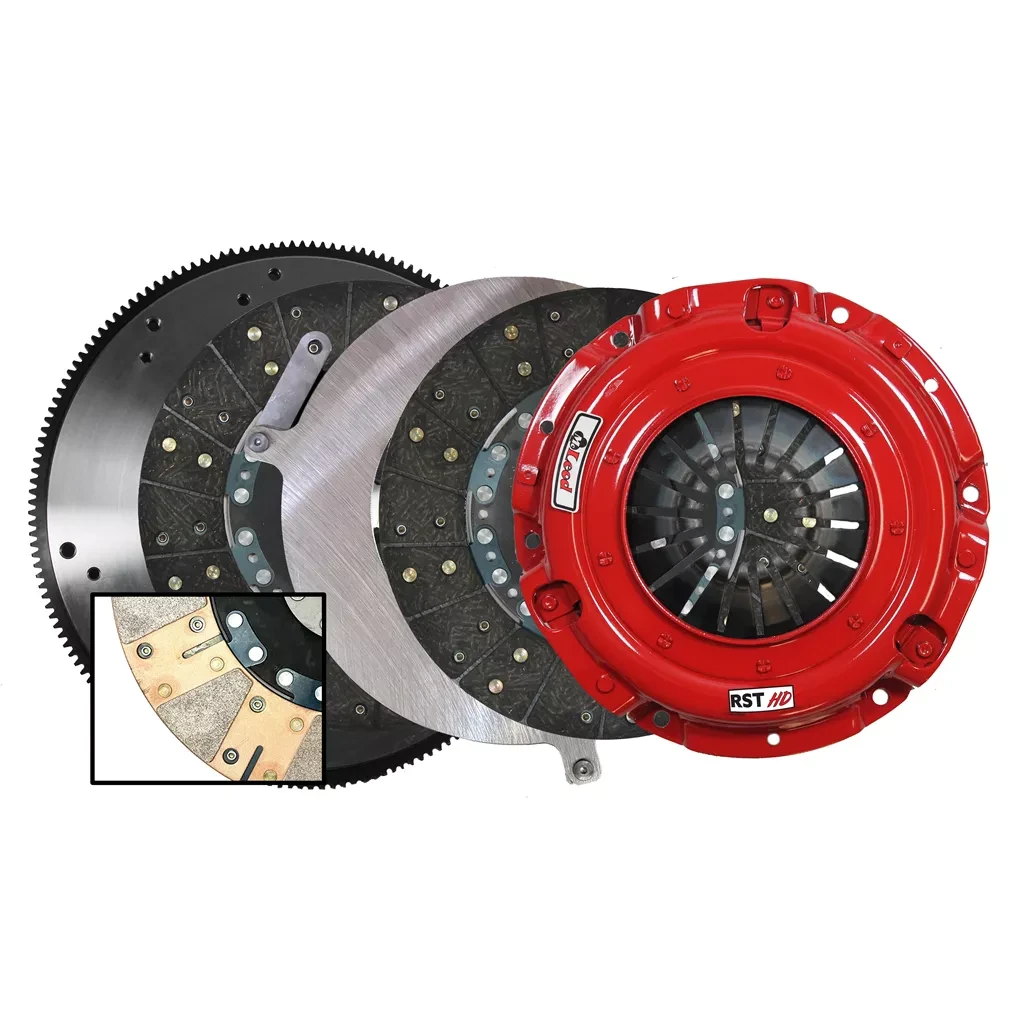

McLeod RST HD Twin Disc Clutch Kit (6913-04MD) - GM Small Diameter Flywheel Applications
Built for high-horsepower GM performance applications, the McLeod RST HD Twin Disc Clutch Kit delivers exceptional torque capacity while maintaining the smooth engagement and street-friendly manners enthusiasts expect. Bridging the gap between McLeod's renowned RST and RXT clutch systems, the RST HD is rated to support up to 950 horsepower, making it an excellent choice for aggressive street driving, drag racing, and road course competition.
The RST HD features McLeod's advanced hybrid twin-disc design, combining smooth-engaging organic friction material on one side of each disc with high-bite segmented ceramic material on the other. This innovative friction package provides outstanding torque-holding capability while minimizing drivetrain shock and maintaining light pedal effort. Designed for use with small diameter flywheel applications, this clutch kit delivers the durability, consistency, and performance required for serious GM performance builds.
Features
- Designed for GM small diameter flywheel applications
- Rated to support up to 950 horsepower
- Twin-disc clutch design for exceptional torque capacity and heat management
- Hybrid organic and segmented ceramic friction discs
- Smooth engagement with excellent street drivability
- Ideal for high-performance street and track applications
- Diaphragm-style pressure plate provides light pedal effort
- Compatible with small diameter flywheels
- Designed for 1-1/8-inch, 10-spline transmission input shafts
- Includes installation hardware and alignment tool
Specifications
- Part Number: 6913-04MD
- Horsepower Rating: 950 HP
- Clutch Disc Quantity: 2
- Disc Diameter: 9.688 inches
- Input Shaft Diameter: 1.125 inches
- Input Spline Quantity: 10
- Disc Material: Organic / Ceramic
- Disc Style: Full Face / Segmented
- Hub Style: Solid
- Pressure Plate Style: Diaphragm
- Clutch Usage: Performance
- Flywheel Included: No
- Hardware Included: Yes
- Alignment Tool Included: Yes
- Throwout Bearing Included: No
- Pilot Bushing Included: No
- Clutch Patterns: 10.5-inch Mustang Diaphragm, 10.5-inch Borg & Beck, 10/10.5-inch Long Pattern
- Flywheel Fitment: Small Diameter Flywheel
- Quantity: Sold as a Kit
Fitment
- GM applications utilizing a small diameter flywheel
- Compatible with 1-1/8-inch, 10-spline transmission input shafts
Additional Notes
- Designed for use with small diameter flywheels.
- Compatible with 10.5-inch Mustang Diaphragm, 10.5-inch Borg & Beck, and 10/10.5-inch Long Pattern clutch patterns.
- Flywheel, throwout bearing, and pilot bushing are not included and must be purchased separately.
- Includes installation hardware and alignment tool.
- Ideal for high-horsepower street and track builds requiring exceptional torque capacity, smooth engagement, and long-lasting durability.
