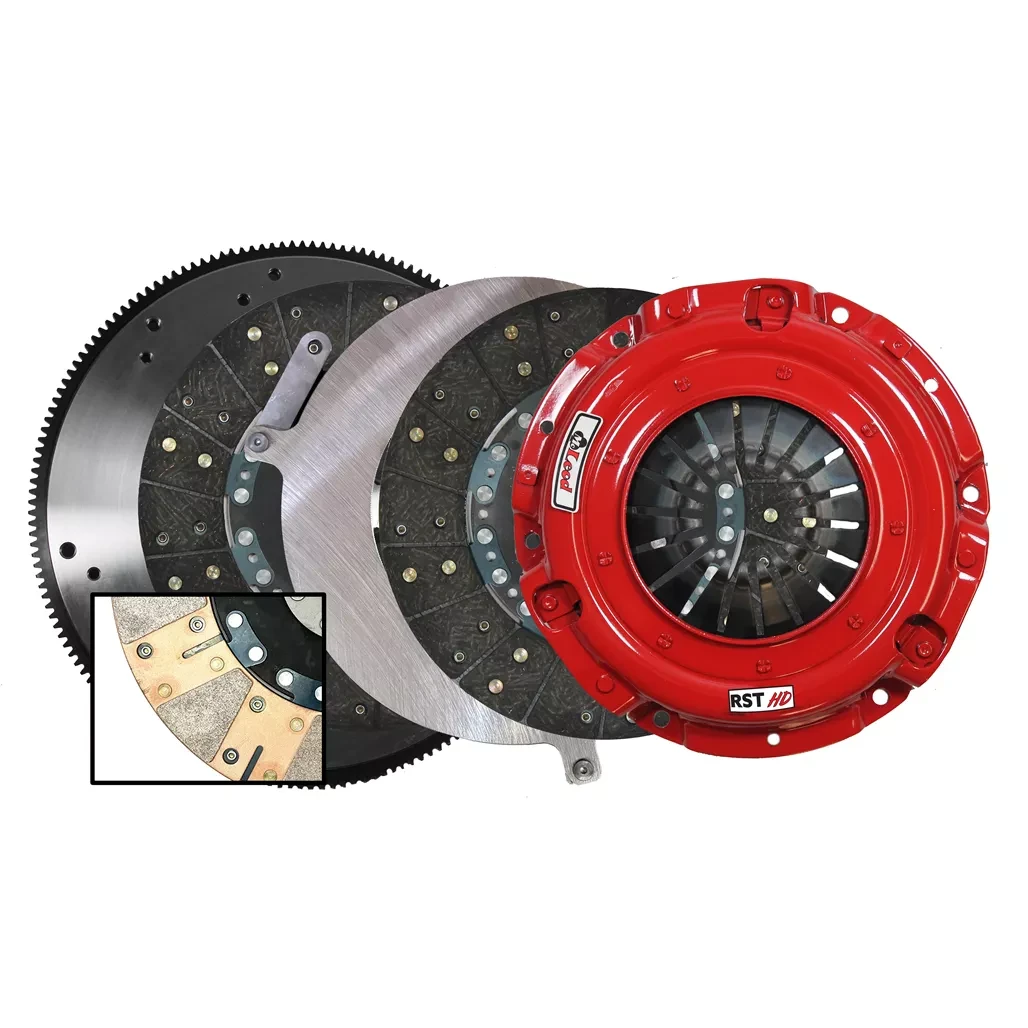

McLeod RST HD Twin Disc Clutch Kit with Steel Flywheel (6482230MD) - Toyota 2JZ Engine
Engineered for high-horsepower Toyota 2JZ builds, the McLeod RST HD Twin Disc Clutch Kit delivers exceptional holding power while maintaining outstanding street manners. Designed to bridge the gap between McLeod's legendary RST and RXT clutch systems, the RST HD is rated to support up to 950 horsepower, making it the ideal solution for enthusiasts who demand smooth engagement, reliable performance, and track-ready durability.
The RST HD features McLeod's advanced hybrid twin-disc design, combining smooth-engaging organic friction material on one side of each disc with high-bite segmented ceramic material on the other. This innovative friction combination increases torque-holding capability while maintaining light pedal effort and minimizing drivetrain shock. Paired with a durable billet steel flywheel, this complete clutch kit offers superior heat capacity, long service life, and consistent performance for the most demanding street and race applications.
Features
- Designed for Toyota 2JZ engine applications
- Compatible with push-style clutch actuation systems only
- Rated to support up to 950 horsepower
- Twin-disc clutch design for outstanding torque capacity and heat management
- Hybrid organic and segmented ceramic friction discs
- Smooth engagement with excellent street drivability
- Ideal for high-performance street, drag racing, and road course applications
- Diaphragm-style pressure plate provides light pedal effort
- Includes durable billet steel flywheel
- 115-tooth flywheel with internal engine balance
- Designed for 1-1/4-inch, 14-spline transmission input shafts
- Includes installation hardware and alignment tool
Specifications
- Part Number: 6482230MD
- Horsepower Rating: 950 HP
- Clutch Disc Quantity: 2
- Disc Diameter: 9.688 inches
- Input Shaft Diameter: 1.25 inches
- Input Spline Quantity: 14
- Disc Material: Organic / Ceramic
- Disc Style: Full Face / Segmented
- Hub Style: Solid
- Pressure Plate Style: Diaphragm
- Clutch Usage: Performance
- Flywheel Included: Yes
- Flywheel Material: Billet Steel
- Engine Balance: Internal
- Ring Gear Tooth Quantity: 115
- Hardware Included: Yes
- Alignment Tool Included: Yes
- Throwout Bearing Included: No
- Pilot Bushing Included: No
Fitment
- Toyota 2JZ Engine Applications
Additional Notes
- Designed for Toyota 2JZ engine applications using a 1-1/4-inch, 14-spline transmission input shaft.
- Compatible with push-style clutch actuation systems only.
- Includes a billet steel flywheel, installation hardware, and alignment tool.
- Throwout bearing and pilot bushing are not included and must be purchased separately if required.
- Ideal for high-horsepower street and track builds requiring exceptional torque capacity, smooth engagement, and long-lasting durability.
