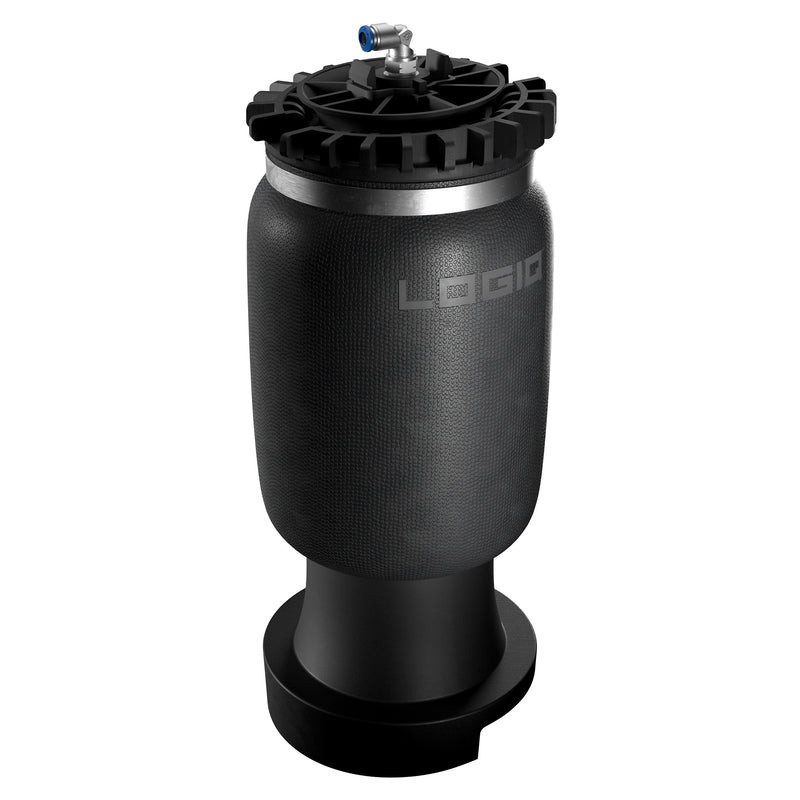

LOGIQ Air Air Spring Kit with Manual Inflation and Schrader Valves - No Tank (89-11090) - 2009-2026 Ram 1500
Upgrade your 2009 through 2026 Ram 1500 with the LOGIQ Air Air Spring Kit, a rear coil spring replacement solution designed to deliver serious load support, improved ride quality, and adjustable rear ride height. This system replaces the factory rear coils or factory rear air suspension with primary air at the rear axle, giving your truck a smoother unloaded ride and stronger control when towing or hauling.
Built for real truck use, this LOGIQ Air system helps make loading, leveling, and trailer hookup easier by allowing rear height adjustment through manual inflation. It fits factory-height trucks and applications with up to three inches of rear lift out of the box. With 6,000 pounds of lifting force at 150 PSI and a 3,800 pound payload capacity at 150 PSI, this is a smart air suspension upgrade for Ram 1500 owners who want more comfort, stability, and capability from their truck.
Specifications
- Part Number: 89-11090
- Application: 2009-2026 Ram 1500
- Inflation Type: Manual with Schrader Valves
- Air Tank Included: No
- Air Spring Location: Axle Mounted Outboard Frame Rails
- Air Spring Quantity: Two
- Lifting Force: 6,000 pounds at 150 PSI
- Payload Capacity: 3,800 pounds at 150 PSI
- Maximum Pressure: 150 PSI
- Minimum Pressure: 20 PSI
- Manufacturer: LOGIQ Air
Features
- Rear coil spring replacement air spring system
- Replaces factory coils or factory rear air suspension with primary rear air suspension
- Improves unloaded ride comfort compared to traditional load support solutions
- Provides superior load support when towing or hauling
- Adjustable rear height helps with loading and trailer hookup
- Fits factory-height trucks and rear lifts up to three inches out of the box
- Manual inflation system with Schrader valves
- No onboard air compressor or air tank required
- Compatible with all fifth wheel hitches
- Designed for serious work, towing, hauling, and daily driving
Kit Includes
- Driver Side Air Spring Assembly
- Passenger Side Air Spring Assembly
- Hardware Kit
- Manual Inflation Kit
Fitment
- 2009 Ram 1500
- 2010 Ram 1500
- 2011 Ram 1500
- 2012 Ram 1500
- 2013 Ram 1500
- 2014 Ram 1500
- 2015 Ram 1500
- 2016 Ram 1500
- 2017 Ram 1500
- 2018 Ram 1500
- 2019 Ram 1500
- 2020 Ram 1500
- 2021 Ram 1500
- 2022 Ram 1500
- 2023 Ram 1500
- 2024 Ram 1500
- 2025 Ram 1500
- 2026 Ram 1500
Fitment Notes
- Fits factory ride height through three inch rear lift applications out of the box.
- For rear lift amounts greater than three inches up to six inches, use Spacer Kit Part Number 89-11090-3.
- Not compatible with TRX or RHO trim packages.
- Compatible with all fifth wheel hitches.
FAQs
Does this kit replace the factory rear coils?
Yes. This LOGIQ Air Spring Kit is a rear coil replacement solution that swaps the factory coils or factory rear air suspension for primary air suspension at the rear axle.
Will this work on a lifted Ram 1500?
Yes. This kit fits factory-height trucks and rear lifts up to three inches out of the box. For rear lifts greater than three inches up to six inches, Spacer Kit 89-11090-3 is required.
Important Safety Information
Never exceed your vehicle manufacturer's maximum payload rating or Gross Vehicle Weight Rating (GVWR). Air springs improve load support and stability but do not increase the truck's rated carrying capacity.
