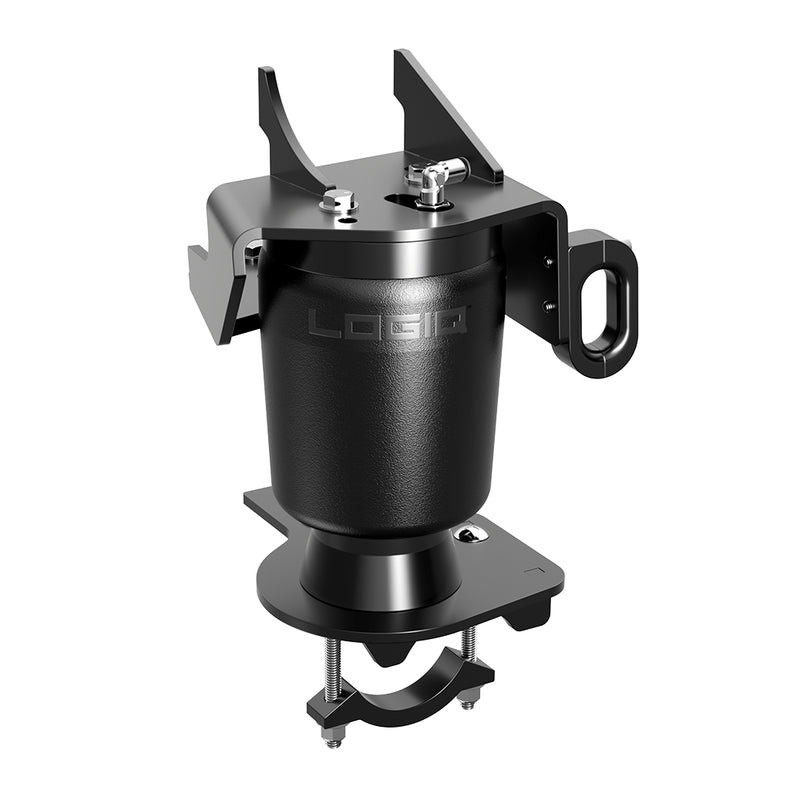

LOGIQ Air Air Spring Kit with Manual Inflation and Schrader Valves - No Tank (88-31070) - 2007-2018 GM 1500
Improve your GM 1500's towing confidence, hauling capability, and everyday ride quality with the LOGIQ Air Air Spring Kit. Specifically engineered for 2007 through 2018 GM 1500 trucks, this premium air spring system delivers the ideal combination of ride comfort and load stability in a 100 percent factory assembled, ready-to-install package. Whether you're pulling a trailer, hauling equipment, or carrying a full bed of cargo, this kit helps reduce rear-end squat while maintaining a level, controlled ride.
The durable single air sleeve design mounts over the axle between the inboard frame rails, providing dependable load support while maintaining maximum suspension travel and retaining the factory bump stops. The included manual inflation system with Schrader valves allows quick pressure adjustments without the complexity of an onboard compressor or air tank. Every component is engineered specifically for GM half-ton applications to deliver long-lasting performance and a straightforward installation.
Specifications
- Part Number: 88-31070
- Application: 2007-2018 GM 1500
- Air Spring Location: Axle Mounted Inboard Frame Rails
- Air Spring Quantity: Two
- Inflation Type: Manual with Schrader Valves
- Air Tank Included: No
- Load Capacity: 3,200 pounds at 150 PSI
- Maximum Pressure: 150 PSI
- Minimum Pressure: 5 PSI
- Manufacturer: LOGIQ Air
Features
- Factory assembled and ready for installation
- Designed specifically for 2007-2018 GM 1500 trucks
- Durable single air sleeve air spring design
- Mounts over the axle between the inboard frame rails
- Maintains maximum suspension travel while utilizing factory bump stops
- Manual inflation system with Schrader valves
- No onboard air compressor or air tank required
- Helps reduce rear suspension sag when towing or hauling
- Improves vehicle stability, ride quality, and load control
- Includes exhaust heat wrap for additional protection near the tailpipe
Kit Includes
- Driver Side Air Spring Assembly
- Passenger Side Air Spring Assembly
- Hardware Kit
- Manual Inflation Kit
- Exhaust Heat Wrap Kit
Fitment
- 2007 Chevrolet Silverado 1500
- 2007 GMC Sierra 1500
- 2008 Chevrolet Silverado 1500
- 2008 GMC Sierra 1500
- 2009 Chevrolet Silverado 1500
- 2009 GMC Sierra 1500
- 2010 Chevrolet Silverado 1500
- 2010 GMC Sierra 1500
- 2011 Chevrolet Silverado 1500
- 2011 GMC Sierra 1500
- 2012 Chevrolet Silverado 1500
- 2012 GMC Sierra 1500
- 2013 Chevrolet Silverado 1500
- 2013 GMC Sierra 1500
- 2014 Chevrolet Silverado 1500
- 2014 GMC Sierra 1500
- 2015 Chevrolet Silverado 1500
- 2015 GMC Sierra 1500
- 2016 Chevrolet Silverado 1500
- 2016 GMC Sierra 1500
- 2017 Chevrolet Silverado 1500
- 2017 GMC Sierra 1500
- 2018 Chevrolet Silverado 1500
- 2018 GMC Sierra 1500
Fitment Notes
- If the vehicle is lifted in the rear, use Spacer Kit Part Number 88-91003 or 88-91006.
- Includes an exhaust heat wrap kit for tailpipe protection.
- Confirmed fifth wheel hitch compatibility includes B&W BWGNRK1057, B&W BWGNRK1007, B&W BWRVK2503, Curt 60632, Curt 16400, Reese RP56007, Reese RP50064, Demco DM8552013, Demco DM8552027, and Draw-Tite 4454.
FAQs
Do I need an onboard air compressor to use this kit?
No. This kit uses a manual inflation system with Schrader valves, allowing you to adjust air pressure without an onboard compressor or air tank.
Can this kit be installed on a lifted truck?
Yes. LOGIQ Air recommends using Spacer Kit Part Number 88-91003 or 88-91006 when the truck has been lifted in the rear.
Important Safety Information
Never exceed your vehicle manufacturer's maximum payload rating or Gross Vehicle Weight Rating (GVWR). Air springs improve load support and stability but do not increase the vehicle's rated carrying capacity.
