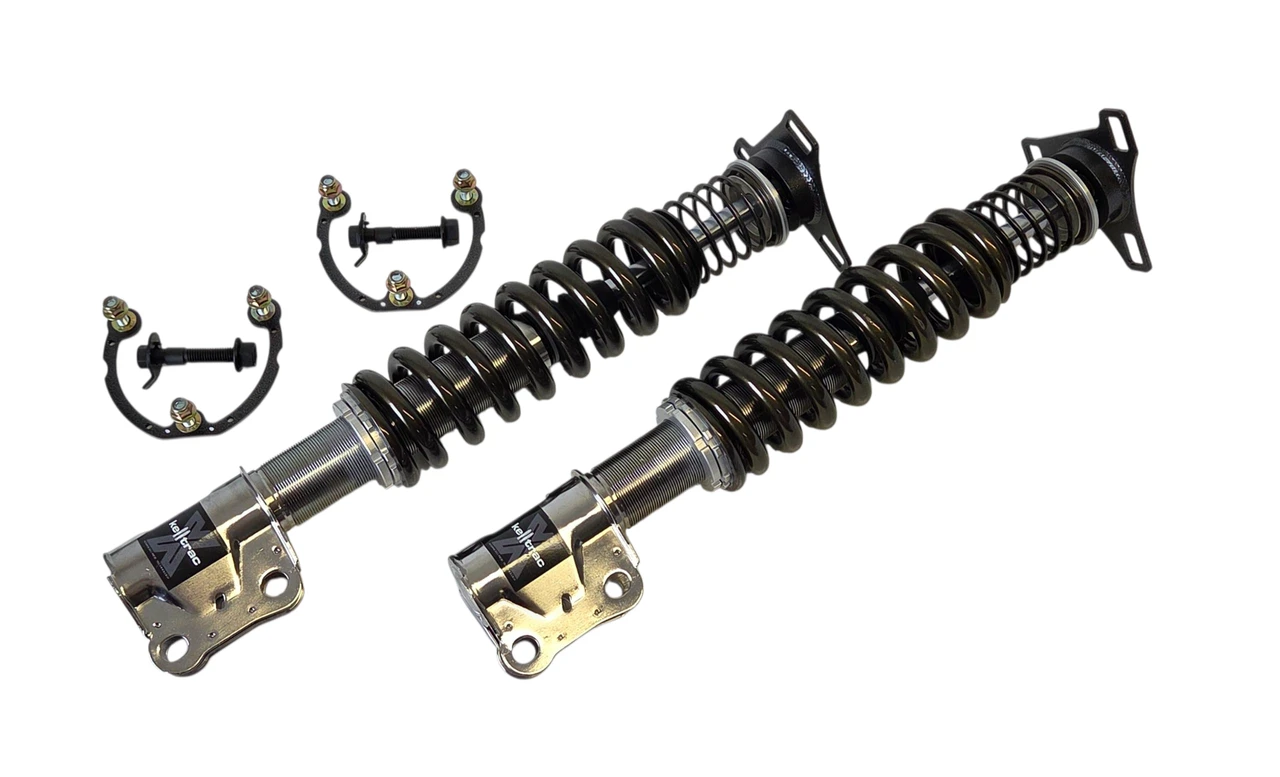

KellTrac X-SERIES HYBRID Long Travel Front Coilover Kit (KTI-FCO15SA-S550-X) - 2015 - 2026 Mustang
Take control of front-end movement, weight transfer, and wheelies in your S550 or S650 Mustang with the KellTrac X-SERIES HYBRID Long Travel Front Coilover Kit. Developed specifically for serious straight-line performance, this system combines years of KellTrac drag racing experience with drag-specific adjustable valving and a dual-spring design engineered for everything from prepared surfaces to no-prep racing and high-powered street applications.
Built with 1000+ horsepower combinations and wheelie control in mind, the X-SERIES HYBRID system is designed to move beyond the traditional goal of simply making a drag car transfer as much weight as possible. Instead, KellTrac developed these coilovers to give racers greater control over how quickly and smoothly the front suspension moves, allowing the chassis to be adjusted for the available traction, power level, and track surface.
Developed for 1000+ HP Straight-Line Performance
KellTrac developed the X-SERIES HYBRID Long Travel Front Coilovers around the demands of serious high-horsepower Mustang combinations. The system is designed for straight-line applications where controlling suspension movement becomes increasingly important as power and traction increase.
Rather than relying on generic stock-replacement strut valving, KellTrac worked with one of the world's leading shock manufacturers to select drag race-specific compression and rebound characteristics. The result is an adjustable front suspension package developed specifically around the demands of launching a powerful S550 or S650 Mustang.
Ultimate Wheelie Control
The X-SERIES HYBRID system was developed around controlled weight transfer rather than simply encouraging the front of the car to rise as aggressively as possible. KellTrac's unique combination of valving, spring selection, and long-travel suspension movement is designed to help racers manage front-end rise and keep the chassis under control as power is applied.
On well-prepared surfaces, proper adjustment can help prevent excessive wheelies and allow more power to be applied through smoother suspension control. In no-prep situations where additional weight transfer may be necessary, the system can also be adjusted to help promote front-end movement and wheelies when appropriate. KellTrac recommends consultation when configuring the system specifically for this type of no-prep use.
Drag Race-Specific Adjustable Valving
Surface conditions and available traction can change dramatically between a well-prepared drag strip, a marginal surface, and no-prep racing. The KellTrac X-SERIES HYBRID coilovers feature adjustable valving that allows the suspension to be tuned according to vehicle power and surface conditions.
This adjustability gives the racer the ability to change suspension behavior rather than being locked into a single predetermined valving combination that may work well in one situation but poorly in another.
Dual-Spring Long Travel Design
KellTrac uses a dual-spring design to provide superior shock and front suspension control. Combined with the long-travel configuration and KellTrac-specific valving, the spring package is engineered to provide smooth, controlled suspension movement during launch and acceleration.
Better control of front suspension movement can help promote traction, manage weight transfer, and allow power to be applied more effectively when the system is properly adjusted for the vehicle and racing surface.
Built for Prep, No-Prep, and Street Applications
The X-SERIES HYBRID was developed as an all-around straight-line performance system rather than a coilover intended for only one type of racing surface. Its adjustable configuration allows racers to adapt the front suspension for good track preparation, challenging no-prep conditions, and performance street use.
This versatility makes the system particularly useful for high-powered Mustangs that compete under varying conditions and need greater control over weight transfer without changing the complete front suspension setup every time the surface changes.
Improved Weight Transfer and Traction Control
When properly adjusted, the KellTrac coilovers are designed to promote improved traction by controlling how the chassis transfers weight during launch. Smoother shock movement can help prevent uncontrolled front-end movement while allowing the suspension to transfer the amount of weight needed for the available traction.
This additional control can allow the driver and tuner to apply more power while maintaining better chassis behavior, making suspension adjustment another tool for adapting the vehicle to changing track conditions.
Designed Around OEM Fitment
Although engineered specifically for drag racing, the X-SERIES HYBRID system is designed around OEM fitment specifications as a stock-replacement-style coilover package. This provides a purpose-built drag racing suspension solution without requiring an entirely custom front suspension architecture.
The system is constructed from high-quality, high-strength materials and receives a zinc coating to help resist corrosion.
Assembled and Ready for Installation
KellTrac supplies the X-SERIES HYBRID front coilovers assembled and ready for installation. The system is designed for a straightforward bolt-in installation process followed by a proper vehicle alignment.
Installation removes the front sway bar as part of the drag race-focused configuration. Once installed and aligned, the adjustable coilovers can be tuned according to vehicle power, suspension behavior, and surface conditions.
Features
- KellTrac X-SERIES HYBRID Long Travel Front Coilover Kit
- Designed for S550 and S650 Ford Mustang applications
- Developed for 1000+ horsepower straight-line performance applications
- Engineered for ultimate wheelie control
- Designed for prepared track, no-prep, and performance street applications
- Created from years of KellTrac straight-line suspension experience dating back to 2014
- Developed with one of the world's leading shock manufacturers
- Drag race-specific compression and rebound valving
- Adjustable valving based on power level and surface conditions
- Industry-unique valving and spring combination
- Long-travel front suspension design
- Dual-spring design for superior shock control
- Designed to promote improved traction when properly adjusted
- Designed to provide greater control over weight transfer
- Smooth shock control can allow additional power to be applied
- Allows suspension adjustment for varying track and surface conditions
- Designed to help prevent excessive wheelies in applicable situations
- Can be adjusted to help promote wheelies when additional weight transfer is needed in no-prep applications
- KellTrac consultation recommended when configuring the system to promote wheelies for no-prep use
- Designed as a stock-replacement-style coilover system for drag race use
- Designed around OEM fitment specifications
- Removes the front sway bar as part of the drag race configuration
- Constructed from high-quality, high-strength materials
- Zinc-coated components help resist corrosion
- Supplied assembled and ready for installation
- Simple bolt-in installation
- Vehicle alignment required following installation
Fitment
- 2015 Ford Mustang S550
- 2016 Ford Mustang S550
- 2017 Ford Mustang S550
- 2018 Ford Mustang S550
- 2019 Ford Mustang S550
- 2020 Ford Mustang S550
- 2021 Ford Mustang S550
- 2022 Ford Mustang S550
- 2023 Ford Mustang S550
- 2024 Ford Mustang S650
- 2025 Ford Mustang S650
- 2026 Ford Mustang S650
Fitment Notes
- Front coilover kit designed specifically for straight-line and drag racing applications.
- Front sway bar is removed when installing this drag race-focused system.
- Proper suspension adjustment should be based on vehicle power level and available surface traction.
- Vehicle alignment is required following installation.
- For no-prep configurations intended to promote additional front-end rise or wheelies, consultation with KellTrac is recommended.
Off-Road Use and Warranty Notice
For off-road use only.
Due to the custom nature of this product, there is no implied warranty.
