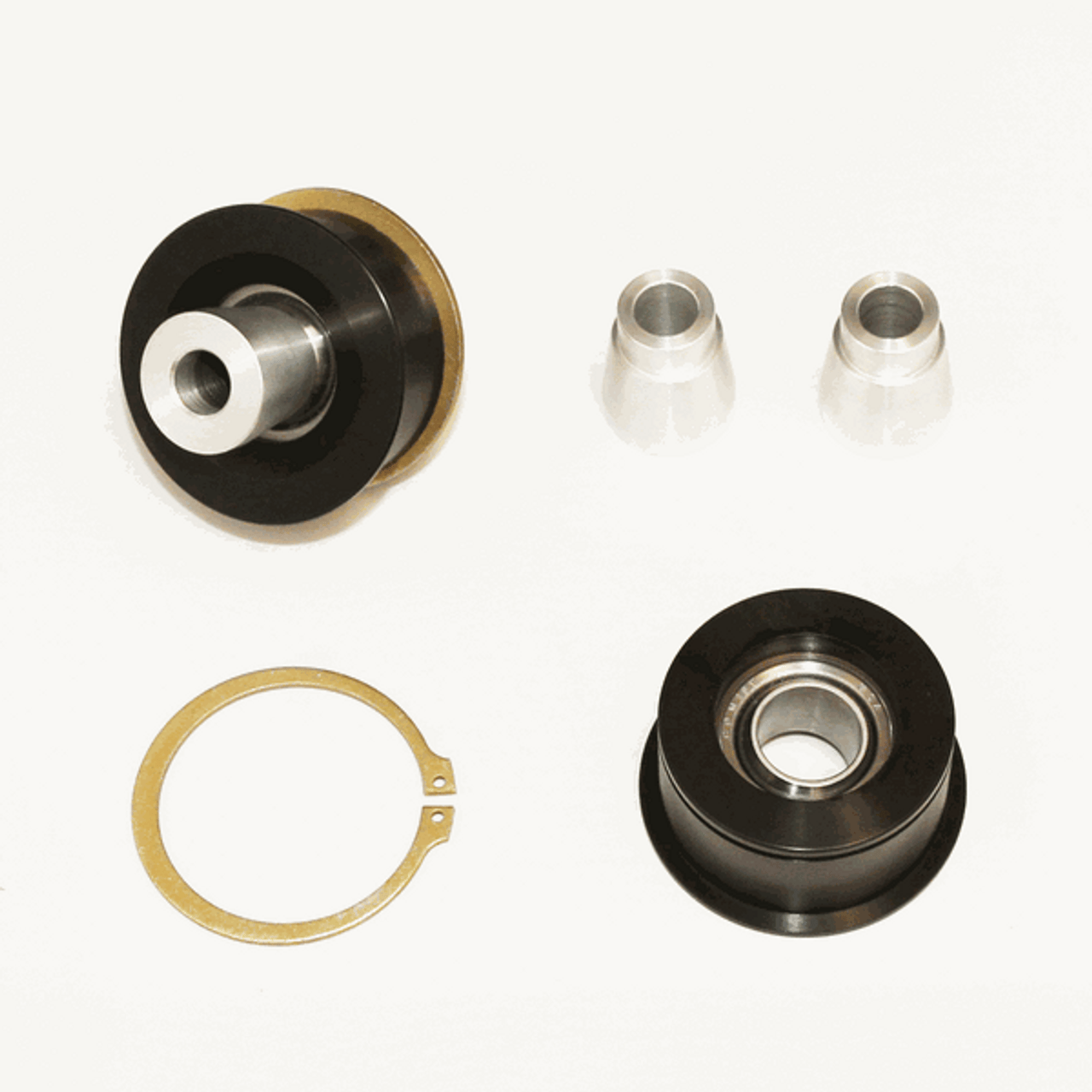

J&M Front Control Arm Spherical Caster Bushing Black (2015-2023 Mustang) 24410B

J&M Products has designed a new Spherical Bushing Part # 24410 for the 2015-2018 S550 Mustang GT, EcoBoost, GT350 and GT350R. Testing indicates that under track use the factory soft rubber bushings have a frightful degree of deflection. J&M’s Spherical Bushing eliminates the toe and caster alignment altering bushing deviation, and provides smooth predictable suspension gesticulation under the most demanding competitive on track experiences.

The largest in the industry 1 inch spherical bearings are made from 52100 heat treated steel/hard chrome plated ball; the bearing race is heat treated high strength steel with a load rating of 70,820 psi when most others are rated at 48,000 psi. The bearing liner is not the typical PTFE liner but made from a thin sintered bronze wire net impregnated with PTFE powder giving it great load capacity and longer wear; this is the same liner material that is used in modern ball joints for a maintenance free long life.

Features:

• Available in clear, red and black anodize

• A press is required to remove the factory bushing and install the new one

• Provides vastly improved handling characteristics

• Will not flex under load

• Bearing liner is attached with a thin sintered bronze wire net impregnated with PTFE powder, same as modern ball joints.

• 52100 heat treated steel/hard chrome plated ball

• Largest in the industry 1? spherical bearing
