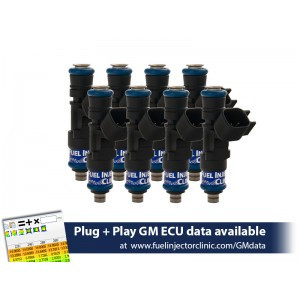

Fuel Injector Clinic 1200cc High Impedance Fuel Injector Set for LS2 Engines (IS302-1200H)
Feed your high-performance LS2 build with confidence using the Fuel Injector Clinic IS302-1200H injector set. Designed for serious naturally aspirated, supercharged, and turbocharged applications, this complete set of eight saturated high impedance fuel injectors delivers exceptional fuel control, outstanding drivability, and the flow capacity needed for demanding horsepower levels. Utilizing the latest injector technology, these injectors provide excellent linearity and superior short pulse width repeatability for precise tuning across the entire operating range.
Each injector set is dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology to provide outstanding cylinder-to-cylinder consistency. Every injector is individually serial numbered and includes a comprehensive Data Match Sheet with detailed flow matching and latency values for accurate ECU calibration. Plug and Play GM ECU calibration data is available directly from Fuel Injector Clinic. This kit includes PGTJETR8 injector pigtails, while optional PADPJtoU8 Plug and Play adapters are available separately for installers who prefer not to modify the factory wiring harness. This injector set replaces the previous IS302-1100H part number.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS302-1200H
- Previous Part Number: IS302-1100H
- Application: LS2 Engines
- Injector Quantity: Set of 8
- Injector Type: Saturated High Impedance (High-Z)
- Flow Rate: 1200 cc/min (110 lb/hr) @ 43.5 PSI (3 Bar)
- Flow Rate: 1350 cc/min (130 lb/hr) @ 58 PSI (4 Bar)
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Testing: Tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit
- ECU Support: Plug and Play GM ECU calibration data available from Fuel Injector Clinic
- Included: PGTJETR8 injector pigtails
- Optional Accessory: PADPJtoU8 Plug and Play adapters available separately
- Included: All required O-rings for the factory application
- Warranty: Lifetime warranty against defects in original manufacture
Features
- Designed specifically for LS2 engine applications.
- Complete set of eight saturated high impedance fuel injectors.
- 1200 cc/min (110 lb/hr) flow rate at 43.5 PSI (3 Bar).
- 1350 cc/min (130 lb/hr) flow rate at the OE 58 PSI (4 Bar) fuel pressure.
- Latest Fuel Injector Clinic injector technology.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes a comprehensive Data Match Sheet with flow matching and latency values.
- Excellent linearity and superior short pulse width control.
- Outstanding idle quality and drivability.
- Plug and Play GM ECU calibration data available from Fuel Injector Clinic.
- Includes PGTJETR8 injector pigtails.
- Optional PADPJtoU8 Plug and Play adapters available separately.
- Includes all required O-rings for factory installation.
- Replaces previous Fuel Injector Clinic part number IS302-1100H.
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
LS2 Engines
FAQs
Do these injectors require wiring modifications?
Yes. The IS302-1200H includes PGTJETR8 injector pigtails for wiring conversion. Optional PADPJtoU8 Plug and Play adapters are available separately for installers who prefer a no-cut installation.
What replaced the IS302-1100H injector set?
The IS302-1200H is the updated replacement for the previous IS302-1100H, offering the same high-quality Fuel Injector Clinic construction with Data Match Technology and current injector technology.
