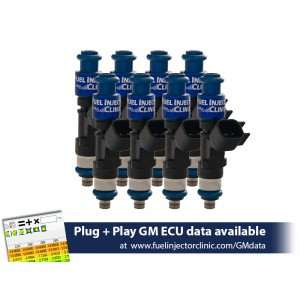

Fuel Injector Clinic 775cc High Impedance Fuel Injector Set for LS1 Engines (IS301-0775H)
Support the fuel demands of your high-performance LS1 build with the Fuel Injector Clinic IS301-0775H injector set. This complete set of eight saturated high impedance fuel injectors is designed to provide the fuel volume needed for naturally aspirated, supercharged, and turbocharged combinations while maintaining excellent idle quality and outstanding street manners. Built using the latest injector technology, these injectors offer exceptional linearity and short pulse width repeatability for precise fueling and simplified tuning.
Each injector set is dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology to deliver exceptional cylinder-to-cylinder consistency. Every injector is individually serial numbered and includes a comprehensive Data Match Sheet with detailed flow matching and latency values, giving tuners the information needed for accurate ECU calibration. Plug and Play GM ECU calibration data is available from Fuel Injector Clinic. This kit also includes PGTUSC8 injector pigtails, while optional PADPUtoJ8 Plug and Play adapters are available separately for installers who prefer not to modify the factory wiring harness.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS301-0775H
- Application: LS1 Engines
- Injector Quantity: Set of 8
- Injector Type: Saturated High Impedance (High-Z)
- Flow Rate: 775 cc/min (74 lb/hr) @ 43.5 PSI (3 Bar)
- Flow Rate: 900 cc/min (85 lb/hr) @ 58 PSI (4 Bar)
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Testing: Tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit
- ECU Support: Plug and Play GM ECU calibration data available from Fuel Injector Clinic
- Included: PGTUSC8 injector pigtails
- Optional Accessory: PADPUtoJ8 Plug and Play adapters available separately
- Included: All required O-rings for the factory application
- Warranty: Lifetime warranty against defects in original manufacture
Features
- Designed for LS1 engine applications.
- Complete set of eight saturated high impedance fuel injectors.
- 775 cc/min (74 lb/hr) flow rate at 43.5 PSI (3 Bar).
- 900 cc/min (85 lb/hr) flow rate at the OE 58 PSI (4 Bar) fuel pressure.
- Latest Fuel Injector Clinic injector technology.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes a comprehensive Data Match Sheet with flow matching and latency values.
- Excellent linearity for consistent fuel delivery.
- Superior short pulse width control for smooth idle and excellent drivability.
- Plug and Play GM ECU calibration data available from Fuel Injector Clinic.
- Includes PGTUSC8 injector pigtails.
- Optional PADPUtoJ8 Plug and Play adapters available separately.
- Includes all required O-rings for factory installation.
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
LS1 Engines
FAQs
Do these injectors require wiring modifications?
Yes. The IS301-0775H includes PGTUSC8 injector pigtails for wiring conversion. Optional PADPUtoJ8 Plug and Play adapters are available separately for installers who prefer a no-cut installation.
What is included with the injector set?
Each kit includes eight individually serial numbered injectors, a detailed Data Match Sheet with flow matching and latency values, injector pigtails, all required O-rings, and is backed by Fuel Injector Clinic's lifetime warranty.
Why Buy From Beefcake Racing?
Beefcake Racing proudly supplies genuine Fuel Injector Clinic fuel system components backed by expert technical support, competitive pricing, and fast shipping. Whether you're building a street-driven LS1 or a high-horsepower race engine, our experienced team can help you choose the proper injectors and supporting fuel system components for your goals.
Need help selecting the right injector size? Contact our knowledgeable team before placing your order.
