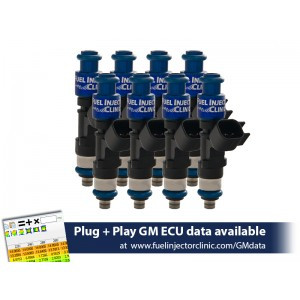

Fuel Injector Clinic 650cc High Impedance Fuel Injector Set for LS1 Engines (IS301-0650H)
Give your LS1-powered build the fuel delivery it needs with the Fuel Injector Clinic IS301-0650H injector set. This complete set of eight saturated high impedance fuel injectors is engineered to support higher horsepower combinations while maintaining excellent idle quality and everyday drivability. Built using the latest injector technology, these injectors deliver outstanding linearity and exceptional short pulse width repeatability, making them an excellent choice for naturally aspirated, supercharged, and turbocharged LS1 applications.
Each injector set is dynamically matched using Fuel Injector Clinic's proprietary Data Match Technology to provide exceptional cylinder-to-cylinder consistency. Every injector is individually serial numbered and includes a comprehensive Data Match Sheet with detailed flow matching and latency values for more precise ECU calibration. Plug and Play GM ECU calibration data is available directly from Fuel Injector Clinic. This kit also includes PGTUSC8 injector pigtails, while optional PADPUtoJ8 Plug and Play adapters are available separately for installers who prefer not to modify the factory wiring harness.
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Part Number: IS301-0650H
- Application: LS1 Engines
- Injector Quantity: Set of 8
- Injector Type: Saturated High Impedance (High-Z)
- Flow Rate: 650 cc/min (62 lb/hr) @ 43.5 PSI (3 Bar)
- Flow Rate: 750 cc/min (72 lb/hr) @ 58 PSI (4 Bar)
- Matching Technology: Fuel Injector Clinic Data Match Technology
- Flow Testing: Tested at 43.5 PSI (3 Bar) using CF-16B calibration fluid at 90 degrees Fahrenheit
- ECU Support: Plug and Play GM ECU calibration data available from Fuel Injector Clinic
- Included: PGTUSC8 injector pigtails
- Optional Accessory: PADPUtoJ8 Plug and Play adapters available separately
- Included: All required O-rings for the factory application
- Warranty: Lifetime warranty against defects in original manufacture
Features
- Designed for LS1 engine applications.
- Complete set of eight saturated high impedance fuel injectors.
- 650 cc/min (62 lb/hr) flow rate at 43.5 PSI (3 Bar).
- 750 cc/min (72 lb/hr) flow rate at the OE 58 PSI (4 Bar) fuel pressure.
- Latest Fuel Injector Clinic injector technology.
- Matched using Fuel Injector Clinic's proprietary Data Match Technology.
- Each injector is individually serial numbered.
- Includes a comprehensive Data Match Sheet with flow matching and latency values.
- Excellent linearity for precise fuel delivery.
- Superior short pulse width control for excellent idle quality and drivability.
- Plug and Play GM ECU calibration data available from Fuel Injector Clinic.
- Includes PGTUSC8 injector pigtails.
- Optional PADPUtoJ8 Plug and Play adapters available separately.
- Includes all required O-rings for factory installation.
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Fitment
LS1 Engines
FAQs
Do these injectors require wiring modifications?
Yes. The IS301-0650H includes PGTUSC8 injector pigtails for wiring conversion. Optional PADPUtoJ8 Plug and Play adapters are available separately for installers who prefer a no-cut installation.
What is Fuel Injector Clinic Data Match Technology?
Data Match Technology dynamically matches each injector in the set and provides detailed flow and latency information, allowing for more accurate ECU calibration and improved fuel delivery consistency.
Why Buy From Beefcake Racing?
Beefcake Racing proudly offers genuine Fuel Injector Clinic fuel system components backed by knowledgeable technical support, competitive pricing, and fast shipping. Whether you're upgrading a street-driven LS1 or building a high-horsepower forced induction combination, our team can help you choose the right injectors and supporting fuel system components.
Need assistance selecting the proper injector size? Contact our experienced team before placing your order.
