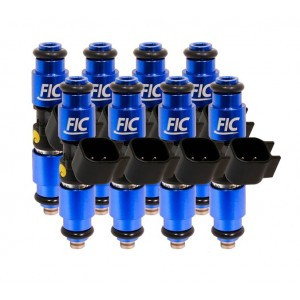

Fuel Injector Clinic 1440cc High Impedance Injector Set (IS153-1440H) - Dodge Hemi SRT-8 5.7L
The Fuel Injector Clinic IS153-1440H 1440cc High Impedance Injector Set is engineered for serious Dodge Hemi SRT-8 5.7L builds that demand exceptional fuel delivery without sacrificing idle quality or street manners. Flowing 1440cc/min, approximately 140 lb/hr, at 43.5 PSI (3 Bar) and 160 lb/hr (1700cc/min) at the factory 58 PSI (4 Bar) fuel pressure, these injectors are an ideal solution for high-horsepower naturally aspirated, supercharged, turbocharged, gasoline, and E85 combinations.
This injector set features true drop-in installation with the factory-style electrical connector, eliminating the need for wiring modifications, pigtails, or adaptor harnesses. The IS153-1440H fills the gap between Fuel Injector Clinic's 1200cc and 1650cc injector offerings while delivering excellent linearity, repeatable short pulse width performance, and outstanding drivability. Plug and Play Dodge ECU calibration data is available directly from Fuel Injector Clinic to simplify tuning and maximize performance.
Constructed with a stainless alloy valve assembly, these injectors are compatible with virtually every common performance fuel including pump gasoline, E85, VP Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Every injector is individually serial numbered and precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Flow testing is performed with CF-16B calibration fluid at 43.5 PSI and 90 degrees Fahrenheit, and every set includes the factory application O-rings along with Fuel Injector Clinic's lifetime warranty against manufacturing defects.
Features
- Complete set of eight 1440cc/min high impedance fuel injectors
- Flows approximately 140 lb/hr at 43.5 PSI (3 Bar)
- Flows approximately 160 lb/hr (1700cc/min) at factory 58 PSI (4 Bar)
- Saturated High Impedance injector design
- Drop-in installation with factory-style electrical connectors
- No plug conversion or wiring modifications required
- Excellent injector linearity and short pulse width repeatability
- Outstanding idle quality and street drivability
- Designed for naturally aspirated, supercharged, and turbocharged applications
- Stainless alloy valve construction
- Compatible with pump gasoline, E85, VP Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Fuel Injector Clinic Data Match Technology
- Each injector individually serial numbered
- Includes detailed Data Match Sheet with flow and latency values
- Flow tested using CF-16B calibration fluid at 90 degrees Fahrenheit
- Plug and Play Dodge ECU data available
- Includes all required factory application O-rings
- Lifetime warranty against manufacturing defects
Quick Specs
- Manufacturer: Fuel Injector Clinic
- Manufacturer Part Number: IS153-1440H
- Injector Quantity: 8
- Flow Rate: 1440cc/min
- Flow Rate at 43.5 PSI: 140 lb/hr
- Flow Rate at 58 PSI: 160 lb/hr (1700cc/min)
- Rated Fuel Pressure: 43.5 PSI (3 Bar)
- Factory Fuel Pressure: 58 PSI (4 Bar)
- Injector Type: Saturated High Impedance
- Electrical Connector: Factory-style
- Plug Conversion Required: No
- Calibration Fluid: CF-16B
- Calibration Temperature: 90 degrees Fahrenheit
- Fuel Compatibility: Pump gasoline, E85, VP Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Included: Eight injectors, factory application O-rings, and Data Match Sheet
- Warranty: Lifetime Manufacturer Warranty
Fitment
- 2005 Dodge Magnum SRT-8 5.7L
- 2005 Chrysler 300C 5.7L
- 2005 Dodge Charger R/T 5.7L
- 2006 Dodge Magnum SRT-8 5.7L
- 2006 Chrysler 300C 5.7L
- 2006 Dodge Charger R/T 5.7L
- 2007 Chrysler 300C 5.7L
- 2007 Dodge Charger R/T 5.7L
- 2007 Dodge Magnum SRT-8 5.7L
- 2008 Chrysler 300C 5.7L
- 2008 Dodge Charger R/T 5.7L
FAQs
Do the IS153-1440H injectors require wiring modifications?
No. These injectors are designed with factory-style electrical connectors for true drop-in installation on the supported Dodge Hemi 5.7L applications.
What fuels are compatible with the FIC 1440cc injectors?
The stainless alloy valve construction allows these injectors to operate with pump gasoline, E85, VP Q16, VP Import, FTW, and other MTBE oxygenated race fuels while maintaining excellent drivability.
