Halltech Systems Stinger-RZ Cold Air Intake System - TKO Attack Blue Dry Nano Filter - NOMEX Sleeve - Stock Throttle Body - PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRZ06
Give your supercharged LT4 a less restrictive path to breathe with the Halltech Systems Stinger-RZ Cold Air Intake System. Engineered for the 2015-2019 Chevrolet Corvette C7 Z06, the STRZ06 combines Halltech's CAD-developed intake architecture with a substantially larger sealed airbox and an induction path designed to reduce the airflow restriction of the factory intake. Halltech reports that at least 20 independent shops, including GM dealerships, have chassis-dyno tested the Stinger-RZ and recorded gains ranging from 40 to 55 rear-wheel horsepower.

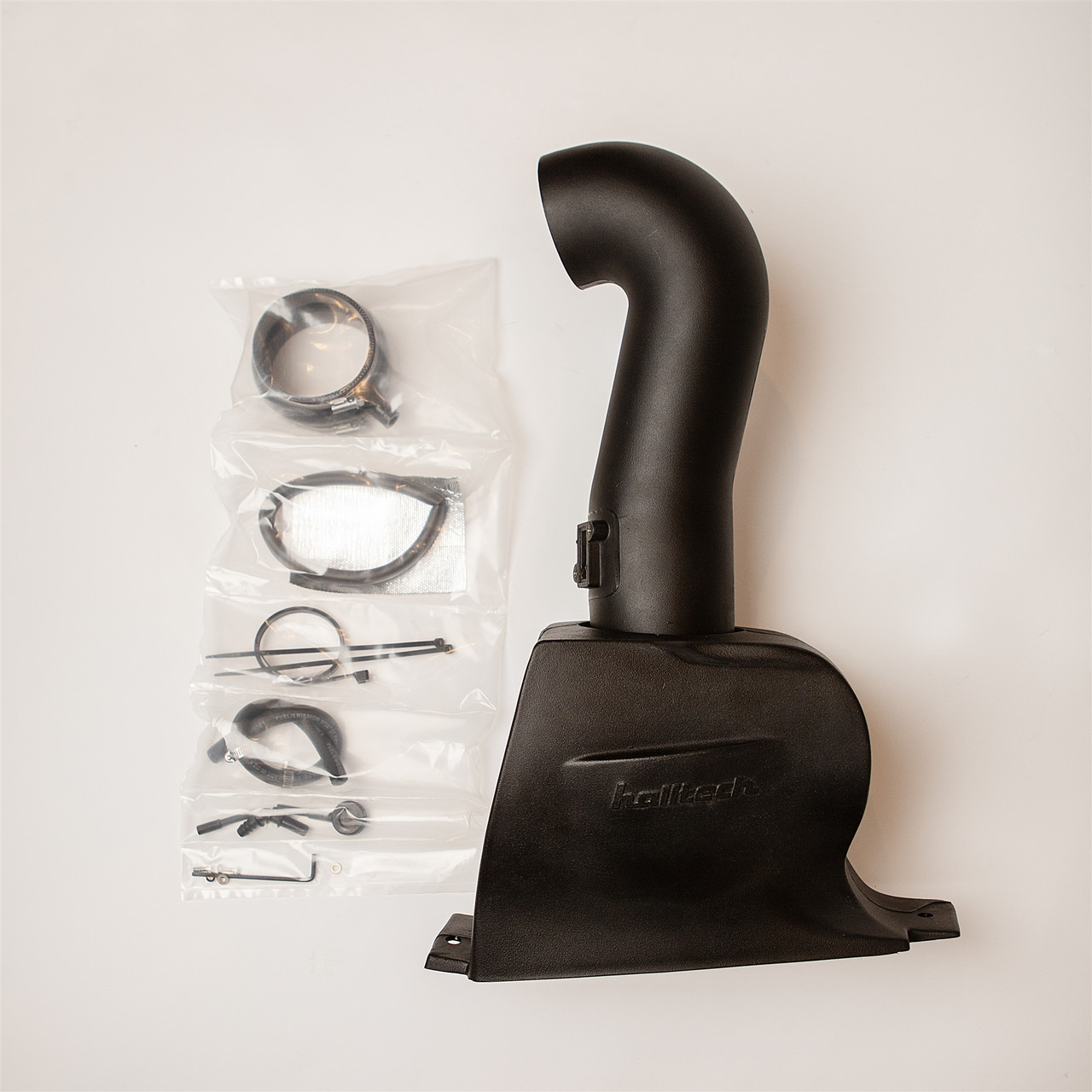

This specific STRZ06 configuration combines the TKO Attack Blue Dry Nano Filter with a NOMEX insulative sleeve, stock throttle-body setup, and a PCV hole in the throttle-body hose. The proprietary dry nano-media filter is made exclusively for Halltech by Attack Blue, giving C7 Z06 owners a non-oiled filtration option, while the insulative sleeve adds a thermal barrier around the intake tube to help isolate the intake-air path from hot underhood temperatures.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRZ06
- Product: Stinger-RZ Cold Air Intake System
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Filter Option: TKO Attack Blue Dry Nano Filter
- Filter Media: Dry nano media
- Throttle Body Configuration: Stock throttle body
- Throttle-Body Hose: PCV hole included
- Insulative Sleeve: NOMEX sleeve included with this configuration
- NOMEX Sleeve Length: 18 inches
- Airbox: Sealed, larger-than-stock design
- Intake Development: CAD developed
- Reported Independent Dyno Gains: 40-55 RWHP
- Halltech Published Test Result: 51.6 RWHP
- Reported Quarter-Mile Improvement: 0.41 second ET and 6 mph
- Shipping Box Dimensions: 22 inches x 15 inches x 12 inches when intake is shipped alone
- Shipping Box Weight: 9 pounds when intake is shipped alone
- California Emissions Status: No California Executive Order number
Features
- Designed for the 2015-2019 Chevrolet Corvette C7 Z06 with the supercharged LT4 engine
- CAD-developed Stinger-RZ cold air intake system
- TKO Attack Blue Dry Nano Filter included with this configuration
- Proprietary dry nano-media filter made exclusively for Halltech by Attack Blue
- Dry filter design eliminates the need for filter oil
- NOMEX insulative sleeve included with this configuration
- 18-inch insulative sleeve provides a thermal barrier around the intake tube
- Configured for the stock C7 Z06 throttle body
- PCV hole included in the throttle-body hose
- Sealed airbox is substantially larger than the factory unit to promote better airflow
- Designed to reduce airflow restriction from the factory filter and intake system
- Halltech reports independent chassis-dyno gains ranging from 40 to 55 RWHP
- Halltech publishes a 51.6 RWHP test result for the Stinger-RZ
- Halltech reports a 0.41-second quarter-mile ET improvement and 6 mph increase
- Compatible with Halltech's TRIC Ram Air package without requiring changes to the Stinger-RZ intake system
- Professional installation is strongly recommended by Halltech
- F-panel seal referenced in the installation video is no longer required or supplied with the kit
Proven Stinger-RZ Performance
The Stinger-RZ is engineered to reduce airflow restriction ahead of the C7 Z06's supercharged LT4. Halltech states that at least 20 independent shops, including GM dealerships, have chassis-dyno tested the system and reported gains ranging from 40 to 55 RWHP. Halltech also publishes a 51.6 RWHP result and reports a quarter-mile improvement of 0.41 second and 6 mph. Actual performance will vary with vehicle condition, modifications, calibration, fuel, atmospheric conditions, and testing procedures.
TKO Attack Blue Dry Nano Filter
This STRZ06 configuration uses the TKO Attack Blue Dry Nano Filter. Halltech identifies its C7 Stinger dry nano-media filter as a proprietary filter made exclusively for Halltech by Attack Blue. The dry-media design eliminates the need for filter oil during servicing and provides an alternative to the S&B Red Oiled, S&B Blue Dry, and S&B Gray Oiled High-Flow TRACK filter choices available for the Stinger-RZ.
NOMEX Insulative Sleeve
This configuration includes Halltech's black 18-inch NOMEX insulative sleeve. Halltech describes the sleeve as a heat barrier designed to completely insulate its intake tubes and isolate intake-air flow from hot underhood temperatures. The heat-resistant DuPont NOMEX aramid fabric is combined with a stretch elastomer to create a lightweight thermal barrier around the intake tube. Depending on the installation, the sleeve can also provide enough length to cover portions of the throttle-body hose or filter neck.
Stock Throttle Body with PCV Provision
This version is configured for the stock C7 Z06 throttle body and includes the PCV hole in the throttle-body hose. It is intended for installations retaining the factory throttle-body size while requiring the PCV provision in the throttle-body hose.
Larger Sealed Airbox
The Stinger-RZ uses a sealed airbox that Halltech describes as much larger than the stock unit to promote better airflow. The larger design requires repositioning some engine-bay components and making minor modifications during installation. Halltech regularly audits filter-box fitment against a spare F-panel and strongly recommends professional installation to ensure the system is positioned correctly.
TRIC Ram Air Compatible
The Stinger-RZ is designed so Halltech's TRIC Ram Air package can be added later without requiring changes to the Stinger-RZ intake system. This allows C7 Z06 owners to install the cold air intake first and expand the induction system with the compatible TRIC Ram Air package later.
Emissions Notice
Halltech states that the STRZ06 does not have a California Executive Order number and is not legal for sale in California for use on emissions-controlled vehicles except where legally permitted for qualifying off-road applications such as track racing. Check applicable state and local emissions requirements before ordering or installing this intake.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
FAQs
Does the TKO Attack Blue Dry Nano Filter require filter oil?
No. The TKO Attack uses dry nano filter media and does not require filter oil during servicing. Halltech identifies its C7 Stinger dry nano-media replacement filter as a proprietary filter made exclusively for Halltech by Attack Blue.
What configuration is included with this STRZ06?
This version includes the TKO Attack Blue Dry Nano Filter and NOMEX insulative sleeve and is configured for the stock throttle body with a PCV hole in the throttle-body hose.
