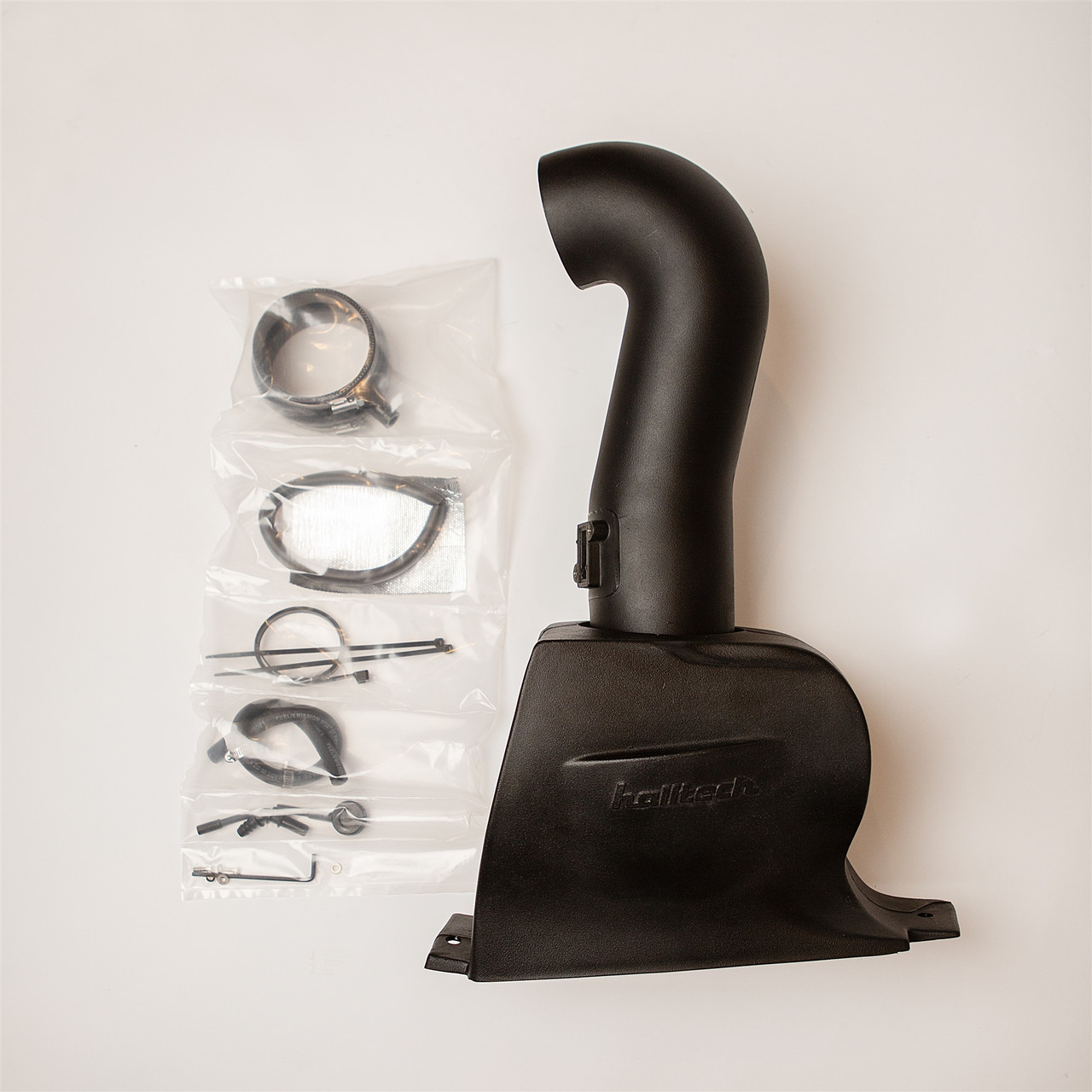

Halltech Systems Stinger-RZ Cold Air Intake System - TKO Attack Blue Dry Nano Filter - NOMEX Sleeve - 103mm Throttle Body - No PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRZ06
Open up the airflow potential of your supercharged LT4 with the Halltech Systems Stinger-RZ Cold Air Intake System. Engineered for the 2015-2019 Chevrolet Corvette C7 Z06, the STRZ06 combines Halltech's CAD-developed intake architecture with a sealed airbox substantially larger than stock and an induction path designed to reduce factory intake restriction. Halltech reports chassis-dyno testing by at least 20 independent shops, including GM dealerships, with reported gains ranging from 40 to 55 rear-wheel horsepower.
This STRZ06 configuration combines the TKO Attack Blue Dry Nano Filter with a NOMEX insulative sleeve, 103mm throttle-body connection, and a throttle-body hose without a PCV hole. The TKO Attack uses proprietary dry nano filter media made exclusively for Halltech by Attack Blue, while the NOMEX sleeve provides an insulating barrier around the intake tube. With its 103mm throttle-body configuration, this version is set up for modified C7 Z06 combinations using the corresponding larger throttle body.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRZ06
- Product: Stinger-RZ Cold Air Intake System
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Filter Option: TKO Attack Blue Dry Nano Filter
- Filter Media: Dry nano media
- Throttle Body Configuration: 103mm throttle body
- Throttle-Body Hose: No PCV hole
- Insulative Sleeve: NOMEX sleeve included
- NOMEX Sleeve Length: 18 inches
- Airbox: Sealed, larger-than-stock design
- Intake Development: CAD developed
- Reported Independent Dyno Gains: 40-55 RWHP
- Halltech Published Test Result: 51.6 RWHP
- Reported Quarter-Mile Improvement: 0.41 second ET and 6 mph
- Shipping Box Dimensions: 22 inches x 15 inches x 12 inches when shipped alone
- Shipping Box Weight: 9 pounds when shipped alone
- California Emissions Status: No California Executive Order number
Features
- Engineered for the 2015-2019 Chevrolet Corvette C7 Z06 with the supercharged LT4 engine
- CAD-developed Stinger-RZ cold air intake architecture
- TKO Attack Blue Dry Nano Filter included with this configuration
- Proprietary dry nano filter media made exclusively for Halltech by Attack Blue
- Dry filter design eliminates the need for filter oil during servicing
- NOMEX insulative sleeve included with this configuration
- 18-inch NOMEX sleeve provides an insulating barrier around the intake tube
- Configured for a 103mm throttle body
- Throttle-body hose supplied without a PCV hole
- Sealed airbox is substantially larger than the factory unit to promote better airflow
- Designed to reduce airflow restriction from the factory filter and intake system
- Halltech reports independent chassis-dyno gains ranging from 40 to 55 RWHP
- Halltech publishes a 51.6 RWHP test result for the Stinger-RZ
- Halltech reports a 0.41-second quarter-mile ET improvement and 6 mph increase
- Compatible with Halltech's TRIC Ram Air package for a future induction upgrade
- Professional installation is strongly recommended by Halltech
- F-panel seal referenced in older installation material is no longer required or supplied with the kit
Proven Stinger-RZ Performance
The Stinger-RZ was developed to reduce airflow restriction ahead of the C7 Z06's supercharged LT4. Halltech reports that at least 20 independent shops, including GM dealerships, have chassis-dyno tested the system and recorded gains ranging from 40 to 55 RWHP. Halltech also publishes a 51.6 RWHP test result along with a reported quarter-mile improvement of 0.41 second and 6 mph. Actual results can vary based on vehicle condition, modifications, calibration, fuel, atmospheric conditions, and testing procedures.
TKO Attack Blue Dry Nano Filter
This STRZ06 configuration uses the TKO Attack Blue Dry Nano Filter. Halltech identifies the TKO Attack as its proprietary dry nano-media filter made exclusively for Halltech by Attack Blue, and Halltech states that it fits its C7 Stinger intake systems. The dry-media construction eliminates the need to apply filter oil during servicing, making it a strong choice for enthusiasts who prefer a dry performance-filter setup.
NOMEX Insulative Sleeve
This configuration includes Halltech's NOMEX insulative sleeve. The black 18-inch heat-barrier sleeve is designed to insulate Halltech intake tubing and isolate intake-air flow from hot underhood temperatures. Depending on the intake configuration, its length may also provide coverage for the throttle-body hose and/or filter neck.
103mm Throttle Body Configuration
This version is configured for a 103mm throttle body rather than the stock throttle-body connection. Matching the Stinger-RZ throttle-body hose configuration to the throttle body installed on the vehicle is important for proper installation, making this version intended for C7 Z06 combinations equipped with a 103mm throttle body.
No PCV Hole in Throttle-Body Hose
The throttle-body hose supplied with this configuration does not include a PCV hole. The hose configuration should be matched to the vehicle's PCV arrangement before installation to ensure the correct STRZ06 version is selected.
Larger Sealed Airbox
The Stinger-RZ uses a sealed airbox that Halltech describes as substantially larger than the factory unit to promote better airflow. Accommodating the larger airbox requires repositioning some engine-bay components and making minor modifications during installation. Halltech strongly recommends professional installation to ensure proper fitment.
TRIC Ram Air Compatible
The Stinger-RZ is designed so Halltech's TRIC Ram Air package can be added later without requiring changes to the Stinger-RZ intake system. This gives C7 Z06 owners the flexibility to install the cold air intake first and expand the induction system with the compatible TRIC Ram Air package later.
Emissions Notice
Halltech states that the STRZ06 does not have a California Executive Order number and is not legal for sale in California for use on emissions-controlled vehicles except where legally permitted for qualifying off-road applications such as track racing. Check applicable state and local emissions requirements before ordering or installing this intake.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
FAQs
Does the TKO Attack Blue Dry Nano Filter require filter oil?
No. The TKO Attack uses dry nano filter media, so there is no filter-oiling step during servicing. Halltech identifies it as a proprietary filter made exclusively for Halltech by Attack Blue for its C7 Stinger intake systems.
What configuration is included with this STRZ06?
This version includes the TKO Attack Blue Dry Nano Filter and NOMEX sleeve and is configured for a 103mm throttle body with no PCV hole in the throttle-body hose.
Get Your Halltech Stinger-RZ from Beefcake Racing
Upgrade your supercharged C7 Z06 with the Halltech Stinger-RZ STRZ06 configured with the TKO Attack Blue Dry Nano Filter, NOMEX sleeve, 103mm throttle-body setup, and non-PCV-hole throttle-body hose. For fitment or ordering questions, contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
