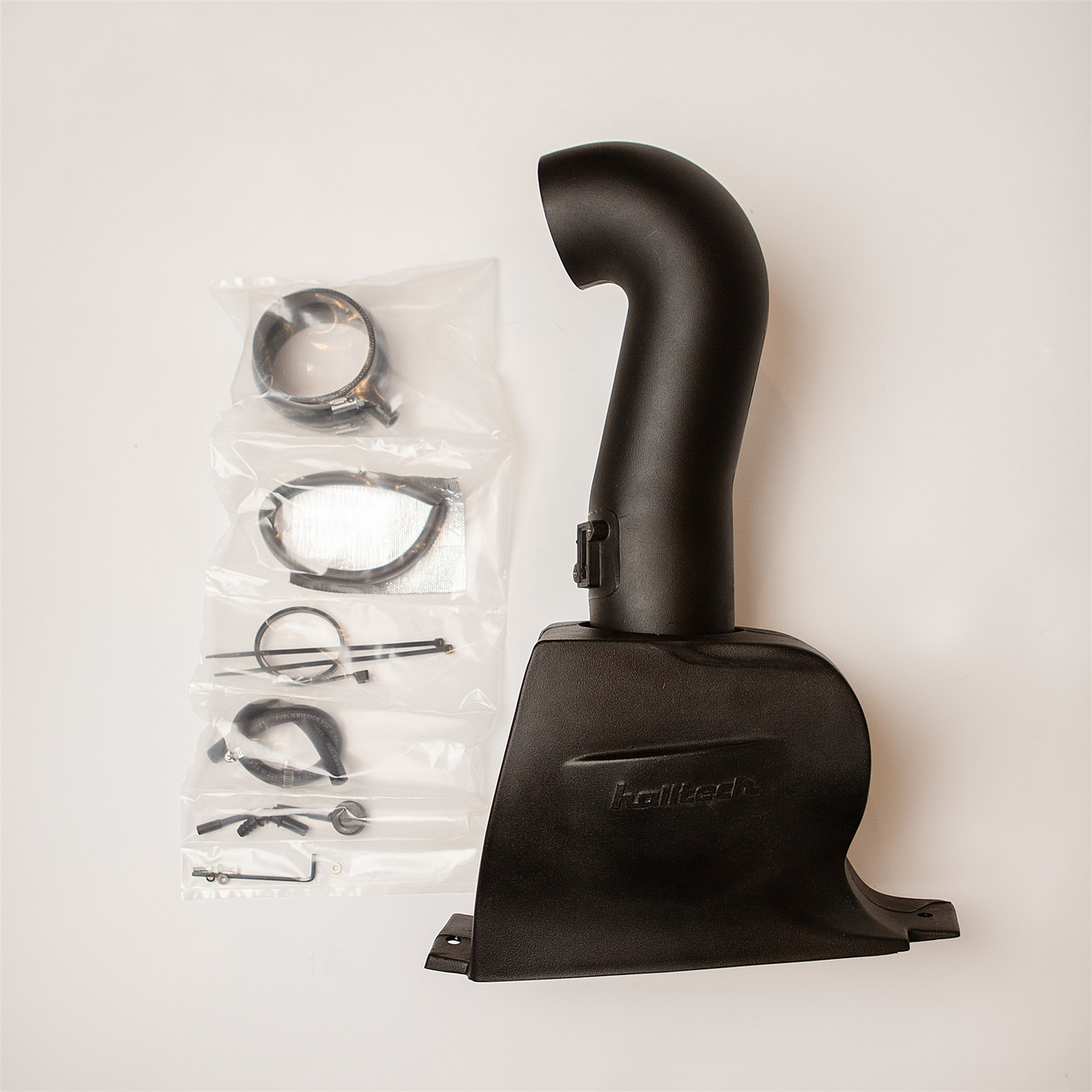

Halltech Systems Stinger-RZ Cold Air Intake System - S&B Gray Oiled High-Flow TRACK Filter - No NOMEX Sleeve - 112mm Throttle Body - No PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRZ06
Open up the airflow potential of your supercharged LT4 with the Halltech Systems Stinger-RZ Cold Air Intake System. Engineered for the 2015-2019 Chevrolet Corvette C7 Z06, the STRZ06 combines Halltech's CAD-developed intake architecture with a sealed airbox substantially larger than stock and an induction path designed to reduce the airflow restriction of the factory intake. Halltech reports chassis-dyno testing by at least 20 independent shops, including GM dealerships, with gains ranging from 40 to 55 rear-wheel horsepower.
This STRZ06 configuration combines the S&B Gray Oiled High-Flow TRACK Filter with a 112mm throttle-body connection and a throttle-body hose without a PCV hole. No NOMEX insulative sleeve is included with this version. Halltech identifies the Gray filter as its oiled high-flow track option, making this configuration a performance-focused choice for modified C7 Z06 combinations running a 112mm throttle body and requiring the non-PCV-hole throttle-body hose.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRZ06
- Product: Stinger-RZ Cold Air Intake System
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Filter Option: S&B Gray Oiled High-Flow TRACK Filter
- Filter Media: Oiled
- Filter Configuration: High-Flow TRACK
- Throttle Body Configuration: 112mm throttle body
- Throttle-Body Hose: No PCV hole
- NOMEX Sleeve: Not included with this configuration
- Airbox: Sealed, larger-than-stock design
- Intake Development: CAD developed
- Reported Independent Dyno Gains: 40-55 RWHP
- Halltech Published Test Result: 51.6 RWHP
- Reported Quarter-Mile Improvement: 0.41 second ET and 6 mph
- Shipping Box Dimensions: 22 inches x 15 inches x 12 inches when shipped alone
- Shipping Box Weight: 9 pounds when shipped alone
- California Emissions Status: No California Executive Order number
Features
- Engineered for the 2015-2019 Chevrolet Corvette C7 Z06 with the supercharged LT4 engine
- CAD-developed Stinger-RZ cold air intake architecture
- S&B Gray Oiled High-Flow TRACK Filter included with this configuration
- Halltech's high-flow oiled track filter option
- Configured for a 112mm throttle body
- Throttle-body hose supplied without a PCV hole
- No NOMEX insulative sleeve included with this configuration
- Sealed airbox is substantially larger than the factory unit to promote better airflow
- Designed to reduce airflow restriction from the factory filter and intake system
- Halltech reports independent chassis-dyno gains ranging from 40 to 55 RWHP
- Halltech publishes a 51.6 RWHP test result for the Stinger-RZ
- Halltech reports a 0.41-second quarter-mile ET improvement and 6 mph increase
- Compatible with Halltech's TRIC Ram Air package for a future induction upgrade
- Professional installation is strongly recommended by Halltech
- F-panel seal referenced in the installation video is no longer required or supplied with the kit
Proven Stinger-RZ Performance
The Stinger-RZ was developed to reduce airflow restriction ahead of the C7 Z06's supercharged LT4. Halltech reports that at least 20 independent shops, including GM dealerships, have chassis-dyno tested the system and recorded gains ranging from 40 to 55 RWHP. Halltech also publishes a 51.6 RWHP test result along with a reported quarter-mile improvement of 0.41 second and 6 mph. Actual results can vary based on vehicle condition, modifications, calibration, fuel, atmospheric conditions, and testing procedures.
S&B Gray Oiled High-Flow TRACK Filter
This STRZ06 configuration uses the S&B Gray Oiled High-Flow TRACK Filter. Halltech identifies the Gray filter as its high-flow oiled track option, distinguishing it from the S&B Red Oiled, S&B Blue Dry, and TKO Attack Blue Dry Nano filter choices available for the Stinger-RZ. It is the filter selection for C7 Z06 owners specifically choosing Halltech's track-oriented high-flow oiled configuration.
112mm Throttle Body Configuration
This version is configured for a 112mm throttle body rather than the stock throttle-body connection. Matching the Stinger-RZ throttle-body hose configuration to the throttle body installed on the vehicle is important for proper installation, making this version intended for C7 Z06 combinations equipped with a 112mm throttle body.
No PCV Hole in Throttle-Body Hose
The throttle-body hose supplied with this configuration does not include a PCV hole. Halltech offers selectable PCV-hole configurations for the STRZ06, so the throttle-body hose should be matched to the vehicle's PCV arrangement before installation.
Larger Sealed Airbox
The Stinger-RZ uses a sealed airbox that Halltech describes as much larger than the factory unit to promote better airflow. The larger airbox requires repositioning some engine-bay components and making minor modifications during installation. Halltech recommends professional installation and regularly audits filter-box fitment against a spare F-panel to help ensure proper positioning.
TRIC Ram Air Compatible
The Stinger-RZ is designed so Halltech's TRIC Ram Air package can be added later without requiring changes to the Stinger-RZ intake system. This gives C7 Z06 owners the flexibility to install the cold air intake first and expand the induction system with the compatible TRIC Ram Air package later.
Emissions Notice
Halltech states that the STRZ06 does not have a California Executive Order number and is not legal for sale in California for use on emissions-controlled vehicles except where legally permitted for qualifying off-road applications such as track racing. Check applicable state and local emissions requirements before ordering or installing this intake.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
FAQs
What makes the S&B Gray TRACK Filter different from the other STRZ06 filter options?
Halltech identifies the S&B Gray filter as its Oiled High-Flow TRACK Filter. Other available Stinger-RZ choices include the S&B Red Oiled Filter, S&B Blue Dry Filter, and TKO Attack Blue Dry Nano Filter.
What configuration is included with this STRZ06?
This version includes the S&B Gray Oiled High-Flow TRACK Filter and is configured for a 112mm throttle body with no PCV hole in the throttle-body hose. A NOMEX sleeve is not included with this configuration.
Get Your Halltech Stinger-RZ from Beefcake Racing
Upgrade your supercharged C7 Z06 with the Halltech Stinger-RZ STRZ06 configured with the S&B Gray Oiled High-Flow TRACK Filter, 112mm throttle-body setup, and non-PCV-hole throttle-body hose. For fitment or ordering questions, contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
