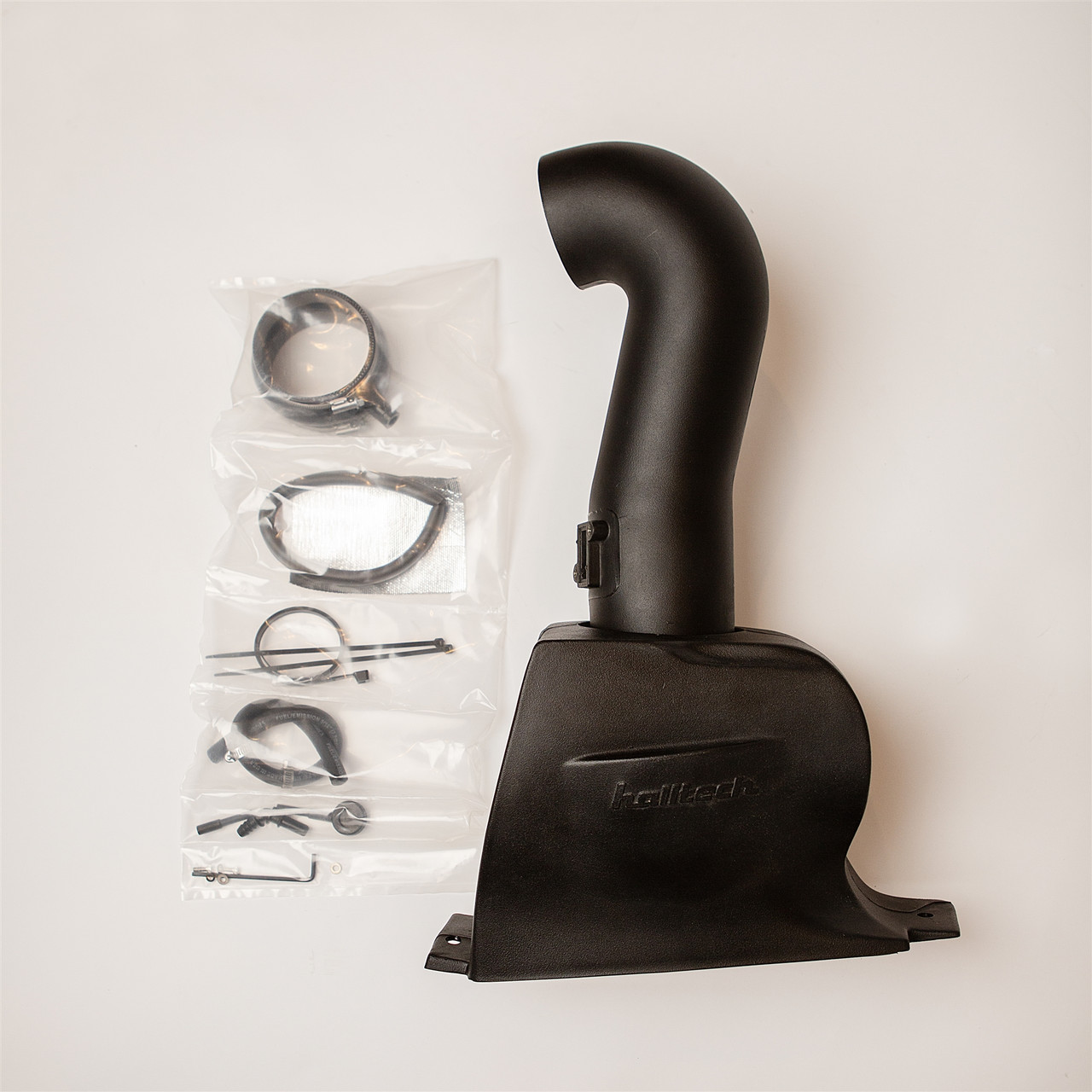

Halltech Systems Stinger-RZ Cold Air Intake System - S&B Blue Dry Filter - No NOMEX Sleeve - Stock Throttle Body - PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRZ06
Give your supercharged C7 Z06 LT4 a less restrictive path to breathe with the Halltech Systems Stinger-RZ Cold Air Intake System. Developed specifically for the 2015-2019 Chevrolet Corvette C7 Z06, the STRZ06 combines Halltech's CAD-developed intake design with a substantially larger sealed airbox and a high-flow induction path engineered to reduce the airflow restriction of the factory intake. Halltech reports that independent shops, including GM dealerships, have documented gains ranging from 40 to 55 rear-wheel horsepower with the Stinger-RZ on chassis dynos, giving serious LT4 builds an intake designed around real airflow and performance.
This specific STRZ06 configuration includes the S&B Blue Dry Filter, is configured for the stock throttle body, includes the PCV hole in the throttle-body hose, and does not include the optional NOMEX sleeve. The Blue Dry Filter provides a non-oiled filtration option, while Halltech's larger sealed airbox is designed to promote better airflow than the restrictive factory induction system. Halltech strongly recommends professional installation to ensure proper positioning and fitment of the larger airbox and associated components.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRZ06
- Product: Stinger-RZ Cold Air Intake System
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Filter Option: S&B Blue Dry Filter
- Filter Media: Dry
- Throttle Body Configuration: Stock throttle body
- Throttle-Body Hose: PCV hole included
- NOMEX Sleeve: Not included with this configuration
- Airbox: Sealed, larger-than-stock design
- Intake Development: CAD developed
- Reported Independent Dyno Gains: 40-55 RWHP
- Halltech Published Test Result: 51.6 RWHP
- Reported Quarter-Mile Improvement: 0.41 second ET and 6 mph
- Shipping Box Dimensions: 22 inches x 15 inches x 12 inches when shipped alone
- Shipping Box Weight: 9 pounds when shipped alone
- California Emissions Status: No California Executive Order number
Features
- Designed specifically for the 2015-2019 Chevrolet Corvette C7 Z06 with the supercharged LT4 engine
- CAD-developed Stinger-RZ cold air intake system
- S&B Blue Dry Filter included with this configuration
- Dry filter media eliminates the need for filter oil
- Configured for the stock C7 Z06 throttle body
- PCV hole included in the throttle-body hose
- No NOMEX sleeve included with this configuration
- Larger sealed airbox promotes increased airflow compared with the restrictive factory intake arrangement
- Designed to reduce airflow restriction from the stock filter and intake system
- Independent shops have reported chassis-dyno gains ranging from 40 to 55 RWHP
- Halltech publishes a 51.6 RWHP test result for the Stinger-RZ
- Halltech reports a 0.41-second quarter-mile ET improvement and 6 mph increase
- Compatible with Halltech's TRIC Ram Air package without requiring changes to the Stinger-RZ system
- Available with multiple dry and oiled filter choices
- Professional installation is strongly recommended by Halltech
- F-panel seal referenced in the installation video is no longer required or supplied with the kit
Proven Stinger-RZ Performance
The Stinger-RZ is designed to reduce the airflow restriction of the factory C7 Z06 induction system and let the supercharged LT4 breathe more effectively. Halltech states that at least 20 independent shops, including GM dealerships, have chassis-dyno tested the system and reported gains between 40 and 55 RWHP. Halltech also publishes a 51.6 RWHP test result along with a reported quarter-mile improvement of 0.41 second and 6 mph. Actual performance will vary with vehicle condition, modifications, calibration, fuel, atmospheric conditions, and testing procedures.
S&B Blue Dry Filter
This STRZ06 configuration uses the S&B Blue Dry Filter. Halltech offers four filter choices for the Stinger-RZ, including both dry and oiled media, and the Blue Dry option gives owners a non-oiled filter that does not require filter oil during servicing. Halltech's proprietary C7 Stinger filter design uses a tapered shape with 70 pleats around the perimeter to maximize filtered surface area.
Stock Throttle Body with PCV Provision
This version is configured for the stock C7 Z06 throttle body and includes the PCV hole in the throttle-body hose. Selecting the correct throttle-body and PCV configuration is important when ordering because Halltech offers selectable throttle-body size and PCV-hole options for the STRZ06.
Larger Sealed Airbox
Halltech equips the Stinger-RZ with a sealed airbox that is substantially larger than the stock unit to promote better airflow. The larger design requires repositioning some engine-bay components and minor modification during installation. Halltech regularly audits filter-box fitment against a spare F-panel and strongly recommends professional installation to make sure the system is positioned correctly.
TRIC Ram Air Compatible
The Stinger-RZ is designed so Halltech's TRIC Ram Air package can be added later without requiring changes to the Stinger-RZ intake system. That gives C7 Z06 owners the flexibility to install the cold air intake first and expand the induction system with Halltech's compatible ram-air package later.
Emissions Notice
Halltech states that the STRZ06 does not have a California Executive Order number and is not legal for sale in California for use on emissions-controlled vehicles except where legally permitted for qualifying off-road applications such as track racing. Check applicable state and local emissions requirements before ordering or installing this intake.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with stock throttle body
FAQs
Does the S&B Blue Dry Filter require filter oil?
No. The S&B Blue Dry Filter uses dry filter media and does not require filter oil. This makes it the S&B dry-filter option for owners who prefer a non-oiled filter in their Stinger-RZ intake.
What configuration is included with this STRZ06?
This version includes the S&B Blue Dry Filter and is configured for the stock throttle body with a PCV hole in the throttle-body hose. The optional NOMEX sleeve is not included with this configuration.
