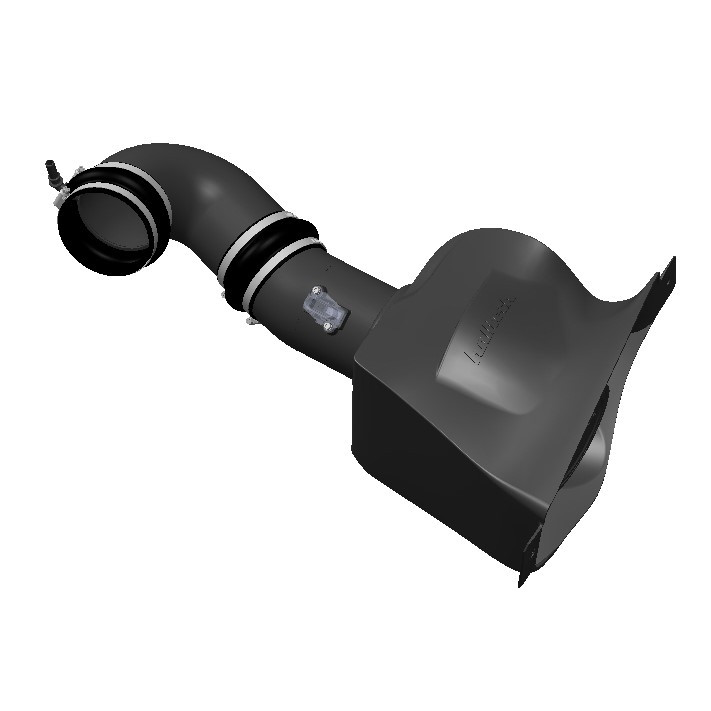

Halltech Systems Stinger RX Cold Air Intake - S&B Red Oiled Filter - NOMEX Sleeve - Stock Throttle Body - PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06 - LT4 / Magnuson 2650) - STRX
Built specifically for C7 Z06 owners running the Magnuson 2650 supercharger, the Halltech Systems Stinger RX Cold Air Intake adapts Halltech's Stinger intake architecture to the packaging requirements of this modified LT4 combination. Halltech designed the RX with a strategically positioned mid-connector hose that provides the additional extension and flexibility required for the Magnuson 2650 installation without sacrificing critical airflow. This STRX configuration features the S&B Red Oiled Filter, is designed for the standard Magnuson 2650 snout with the stock throttle body, includes a PCV hole in the throttle-body hose, and includes the NOMEX sleeve.
The Magnuson 2650 LT4 uses a modular snout design, making the correct throttle-body transition an important part of the intake combination. Halltech states that the standard Magnuson 2650 snout accepts the factory throttle body, while alternate hose options accommodate 103mm and 112mm throttle bodies. This version keeps the stock throttle-body configuration while combining Halltech's Stinger RX design with the S&B Red Oiled Filter, PCV-hole throttle-body hose, and NOMEX sleeve.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRX
- Product: Stinger RX Cold Air Intake
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Supercharger Application: Magnuson 2650
- Filter Option: S&B Red Oiled Filter
- Filter Media: Oiled
- Throttle Body Configuration: Stock throttle body
- Magnuson Snout Configuration: Standard snout
- Throttle-Body Hose Configuration: PCV hole in T/B hose
- NOMEX Sleeve: Included with this configuration
- Intake Design: Stinger RX with strategically positioned mid-connector hose
- Available Throttle Body Configurations: Stock, 103mm, and 112mm
- Box Dimensions: 22 inches x 15 inches x 12 inches when shipped alone
- Box Weight: 9 pounds when shipped alone
- Manufacturer-Listed Availability: Usually ships in 1 to 2 weeks
Features
- Designed for 2015-2019 Chevrolet Corvette C7 Z06 LT4 applications equipped with the Magnuson 2650 supercharger
- Stinger RX architecture developed around the Magnuson 2650 application
- Strategically positioned mid-connector hose provides additional extension and flexibility
- Mid-connector design accommodates the Magnuson 2650 without sacrificing critical airflow
- S&B Red Oiled Filter configuration
- Configured for the stock C7 Z06 throttle body
- Standard Magnuson 2650 LT4 snout accepts the factory throttle body
- PCV hole included in the throttle-body hose
- NOMEX sleeve included with this configuration
- Alternate STRX hose configurations accommodate 103mm and 112mm throttle bodies
- Halltech offers four filter choices for the Stinger RX, including both dry and oiled options
- Additional intake holes may be required when using a dual-nozzle methanol system
- F-panel seal referenced in the older Stinger RZ06 installation video is not required and is no longer supplied with the kit
Magnuson 2650-Specific Stinger RX Design
The Stinger RX addresses the different packaging requirements created by installing a Magnuson 2650 on the C7 Z06 LT4. Halltech strategically positioned a mid-connector hose in the intake to provide the additional extension and flexibility this combination requires while maintaining critical airflow. The result is an intake configuration developed specifically around the Magnuson 2650 application.
S&B Red Oiled Filter
This STRX configuration uses the S&B Red Oiled Filter, one of four filter choices Halltech offers for the Stinger RX. It provides an oiled-media filter option paired here with the stock throttle-body configuration, PCV-hole throttle-body hose, and NOMEX sleeve.
Stock Throttle Body Configuration
This version is configured for the stock C7 Z06 throttle body. Halltech states that the standard Magnuson 2650 LT4 snout accepts the factory throttle body. Modified combinations using a 103mm or 112mm throttle body require the corresponding alternate STRX transition-hose configuration.
PCV Hole in T/B Hose
This specific STRX configuration includes the PCV hole in the throttle-body hose. Halltech makes the PCV-hole provision selectable when ordering the Stinger RX, allowing the intake configuration to be matched to the requirements of the vehicle's setup.
NOMEX Sleeve Included
This version includes the optional NOMEX sleeve offered with the Stinger RX. It is the sleeved configuration for buyers ordering the S&B Red Oiled Filter, stock throttle-body setup, and PCV-hole throttle-body hose.
Dual-Nozzle Methanol Considerations
Halltech notes that additional holes may need to be strategically added to the intake when using a dual-nozzle methanol system. Because modified LT4 and Magnuson 2650 combinations can vary, confirm the requirements of the complete throttle-body, PCV, methanol-injection, and induction setup before installation.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with Magnuson 2650 and stock throttle body
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with Magnuson 2650 and stock throttle body
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with Magnuson 2650 and stock throttle body
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with Magnuson 2650 and stock throttle body
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4 with Magnuson 2650 and stock throttle body
FAQs
Is this Stinger RX configured for the stock C7 Z06 throttle body?
Yes. Halltech states that the standard Magnuson 2650 LT4 snout accepts the factory throttle body. This STRX version is configured for that stock throttle-body arrangement rather than the available 103mm or 112mm configurations.
What options are included with this STRX configuration?
This version includes the S&B Red Oiled Filter, NOMEX sleeve, stock throttle-body configuration, and PCV hole in the throttle-body hose for the 2015-2019 C7 Z06 LT4 with Magnuson 2650.
Get Your Halltech Stinger RX from Beefcake Racing
Upgrade your Magnuson 2650-equipped 2015-2019 C7 Corvette Z06 with the Halltech Stinger RX configured with the S&B Red Oiled Filter, NOMEX sleeve, stock throttle body, and PCV-hole throttle-body hose. For fitment or ordering questions, contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
