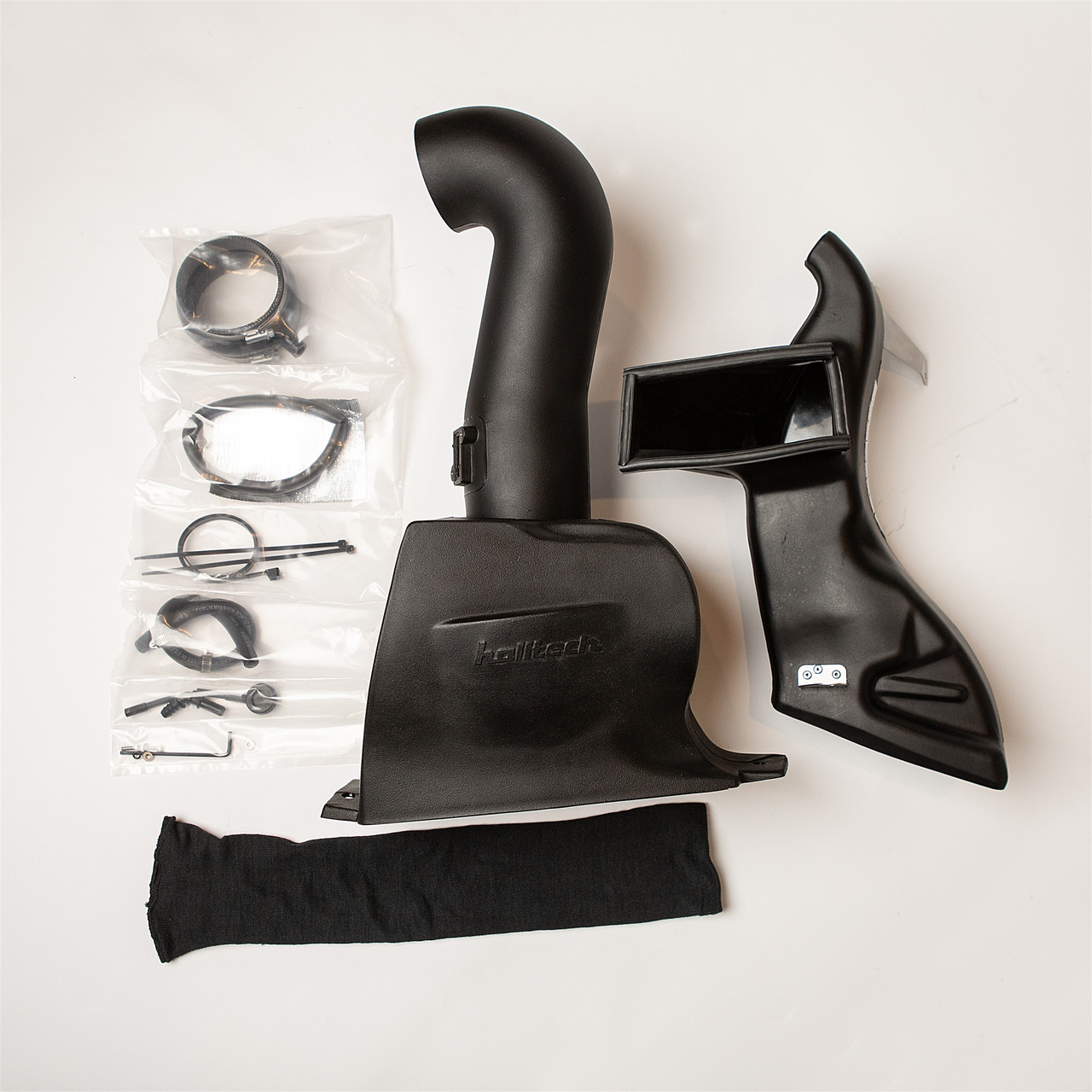

Halltech Systems Stinger-RAZ Package - S&B Red Oiled Filter - Stock Throttle Body - PCV Hole in T/B Hose (2015 - 2019 Chevrolet Corvette C7 Z06) - STRAZ
Turn your C7 Z06 intake system into a serious airflow package with the Halltech Systems Stinger-RAZ. Designed specifically for the supercharged LT4-powered 2015-2019 Chevrolet Corvette Z06, the STRAZ combines Halltech's Stinger-RZ intake with an insulating heat-shield sleeve and the TRIC Ram Air Induction system. This configuration is equipped with the S&B Red Oiled Filter and is set up for the stock throttle body with a PCV hole in the throttle-body hose.
The Stinger-RAZ attacks intake restriction and inlet-air delivery as a complete system. Halltech reports that the Stinger-RZ portion alone has been independently dyno tested by numerous shops, including GM dealerships, with reported gains between 50 and 55 RWHP without the TRIC system. The included TRIC system routes outside air into the filter-box area and is designed to increase the volume of cold, dense air available to the intake at speed. Halltech's testing of a stock C7 Z06 equipped with the system recorded boost as high as 12.1 PSI in third gear. As with all dyno and track testing, actual results depend on the vehicle, conditions, fuel, installation, and other variables.
Specifications
- Manufacturer: Halltech Systems
- Part Number: STRAZ
- Product: Stinger-RAZ Package
- Vehicle: Chevrolet Corvette C7 Z06
- Model Years: 2015-2019
- Engine: 6.2L Supercharged LT4
- Intake System: Halltech Stinger-RZ
- Ram Air System: Halltech TRIC Ram Air Induction
- Filter Option: S&B Red Oiled Filter
- Filter Media: Oiled
- Throttle Body Configuration: Stock throttle body
- Throttle-Body Hose Configuration: PCV hole in T/B hose
- Heat Protection: Insulating heat-shield sleeve included as part of the Stinger-RAZ package
- Manufacturer-Reported Stinger-RZ Dyno Results: 50-55 RWHP reported by independent shops without the TRIC Ram Air system
- Manufacturer-Reported Boost Testing: Up to 12.1 PSI in third gear on Halltech's stock C7 Z06 test vehicle
- California Emissions: No California EO number; Halltech states the induction system is not legal for sale in California unless used in an off-road application such as track racing
Features
- Complete Stinger-RAZ performance intake package for the 2015-2019 C7 Corvette Z06
- Combines the Halltech Stinger-RZ intake with the TRIC Ram Air Induction system
- S&B Red Oiled Filter configuration
- Configured for the factory C7 Z06 throttle body
- Throttle-body hose includes the requested PCV hole
- Includes Halltech's insulating heat-shield sleeve
- Stinger-RZ reduces the airflow restriction associated with the factory intake system
- TRIC directs a large volume of outside air into the filter-box cavity
- Halltech reports independent Stinger-RZ dyno testing in the 50-55 RWHP range without TRIC
- Halltech testing recorded up to 12.1 PSI boost in third gear on its stock C7 Z06
- Large airbox is designed to promote increased airflow
- Application-specific system engineered for the supercharged LT4 C7 Z06
Stinger-RZ Intake Plus TRIC Ram Air
The RAZ package goes beyond the Stinger-RZ intake by adding Halltech's TRIC Ram Air Induction system. TRIC brings outside air directly into the filter-box cavity rather than relying solely on the factory path used to draw air from beneath the front of the vehicle. Halltech's preliminary track testing recorded 11.4 PSI of boost at 88 mph in second gear and 12.1 PSI at 124 mph on its stock C7 Z06 test vehicle.
S&B Red Oiled Filter
This STRAZ configuration is equipped with Halltech's S&B Red Oiled Filter option. It is the oiled-media version of the package for owners who want the S&B Red filter paired with the Stinger-RZ and TRIC combination.
Stock Throttle Body and PCV Hose Configuration
This version is configured specifically for the stock C7 Z06 throttle body and includes the PCV-hole configuration in the throttle-body hose. Selecting the correct throttle-body and PCV arrangement is important when ordering the Stinger-RAZ because Halltech offers configuration choices for these components.
Installation and TRIC Use
Halltech strongly recommends professional installation. The Stinger-RAZ airbox is larger than the stock unit to promote better airflow, and installation requires moving some engine-bay components along with minor modification. Halltech also specifically warns against using the TRIC Ram Air system in rain or taking the vehicle through a car wash with the ram-air system exposed to water. Halltech notes that TRIC redirects airflow otherwise used for the front-right rotor and states that the system has not been tested by Halltech for road-racing effects on that rotor's cooling.
Fitment
- 2015 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2016 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2017 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2018 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
- 2019 Chevrolet Corvette C7 Z06 6.2L Supercharged LT4
FAQs
What does the Halltech Stinger-RAZ package add over the Stinger-RZ intake?
The STRAZ package combines Halltech's Stinger-RZ intake with an insulating heat-shield sleeve and the TRIC Ram Air Induction system. TRIC is designed to feed a large volume of outside air directly into the filter-box cavity, creating a more comprehensive induction package than the Stinger-RZ intake by itself.
Can I use the Halltech TRIC Ram Air system in the rain?
No. Halltech specifically warns not to use the TRIC Ram Air system during rain and not to take the vehicle through a car wash with the system exposed to water. Owners should follow Halltech's installation and operating instructions for the ram-air system.
Get Your Halltech Stinger-RAZ from Beefcake Racing
Upgrade your 2015-2019 C7 Corvette Z06 with the Halltech Stinger-RAZ package configured with the S&B Red Oiled Filter, stock throttle body, and PCV hole in the throttle-body hose. For fitment or ordering questions, contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
